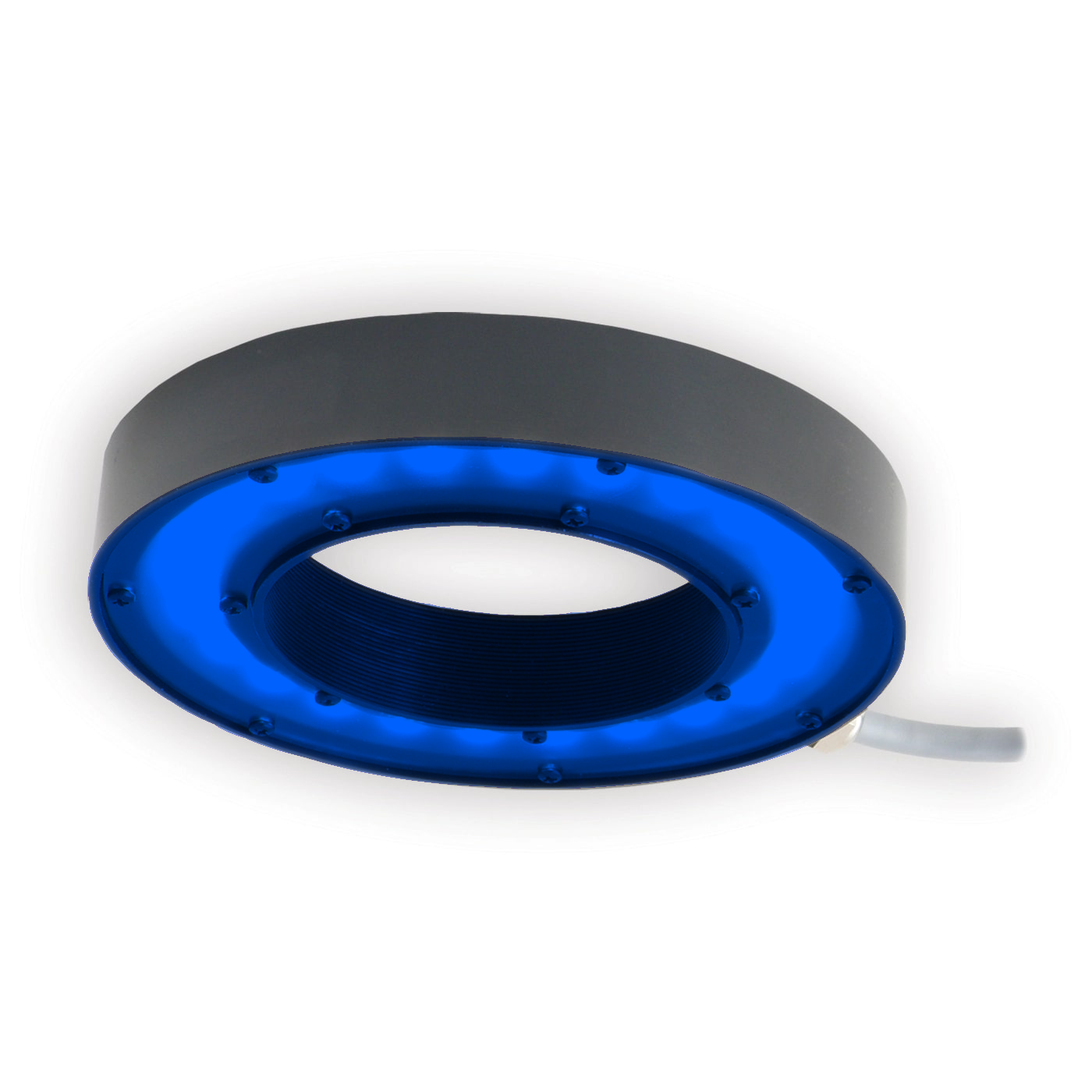

RL127-470I3S Large High Dispersion Bright Field Ring Light, 470nm Blue, ICS 3S (I3S) Driver

Advanced IlluminationSKU: RL127-470I3S
Lead Time: 2 Weeks

Price:
Sale price$1,063.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Large High Dispersion Bright Field Ring Lights - RL Series

RL127-470I3S Specifications:

Brand Advanced Illumination
Series RL127
Wavelength 470
Color Blue
Driver I3S
Ingress Protection IP67
Inner Diameter 66.4 mm
Outer Diameter 116.8 mm
Illuminated Field of View .0 mm
Weight 421g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The RL127 is characterized as a Large High Dispersion Bright Field ring light.

Non-lensed LEDs disperse light at broad angles, providing œsoft� lighting for applications that require short to medium working distances.

The low-profile design is only .75� (19mm) thick, with an O.D. of 4.6� (117mm) and I.D. of 2.61� (66.3mm) allowing it to be used in space constrained applications.

The I.D. provides a standard 67mm diameter thread with a pitch of .75mm for further mounting flexibility.

A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser may be used to further condition the light output.

The RL121 delivers 20kLux at a working distance of 100mm.

General Specs

Electrical Specifications 0.48A
Normal Operating Temperature

0 - 60°C

Weight 308g (10.9)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62417
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL127 Large High Dispersion Bright Field Ring Lights Mechanical Specs | Advanced Illumination


 Optical Specs

 RL127 Large High Dispersion Bright Field Ring Lights Optical Specs | Advanced IlluminationRL127 Large High Dispersion Bright Field Ring Lights Optical Specs | Advanced Illumination

Electrical Specs

 RL127 Large High Dispersion Bright Field Ring Lights Electrical Specs | Advanced Illumination


Control Specs

 RL127 Large High Dispersion Bright Field Ring Lights Control Specs | Advanced Illumination

Part No Key

 RL127 Large High Dispersion Bright Field Ring Lights Part No Key | Advanced Illumination

Advanced Illumination RL127-470I3S Downloads:

Advanced Illumination RL127-470I3S Datasheet | Machine Vision Direct
Advanced Illumination RL127-470I3S CAD PDF | Machine Vision Direct
Advanced Illumination RL127-470I3S CAD DXF | Machine Vision Direct
Advanced Illumination RL127-470I3S CAD STEP MODEL | Machine Vision Direct
