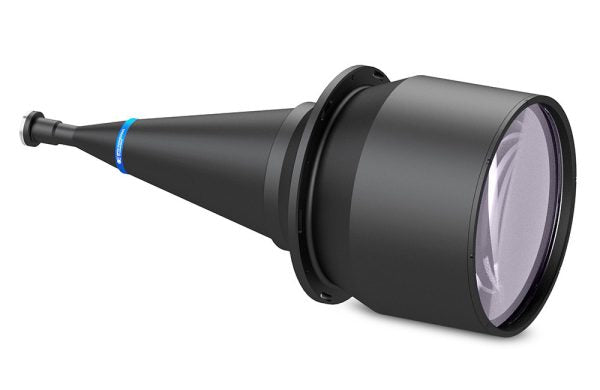

Opto Engineering TC10M308-F
Telecentric lenses for sensors up to APS-C and 4k line scan cameras.TC10M series features high-resolution telecentric optics with an image circle of 28 mm that perfectly fits cameras with large sensors up to APS-C format. These lenses also feature a compact and robust design suitable for industrial environments.
Their excellent optical performance and high resolutions make them ideal for applications such as flat panel display checks, high-precision measurement of mechanical parts, and semiconductor and electronics inspection.
TC10M308-F Technical Specifications:
Product Line / Series | TC10M |
Brand | Opto Engineering |
Lens Type | Telecentric |
IP Rating | Not Specified |
Magnification | 0.075× |
Image Circle Diameter | 28 mm |
Image Size Dimensions | Not Specified |
Imager Format | APS-C |
Distortion Typical (%) | < 0.10 |
Distortion Maximum (%) | < 0.15 |
Phase Adjustment | Yes |
Telecentricity Typical | < 0.09° |
Telecentricity Maximum | 0.15° |
Working Distance | 500 mm |
Depth Of Field | 117.3 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 68 μm |
Mount | F-Mount |
Dimensions Approximate | 973.3 x 417 x 417 mm |
Front Diameter | 417 mm |
Weight | 38809 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | Not Specified |
Installation Location | Not Specified |
Temperature Sensor | No |
Line 4k-7µm | 382.27 mm |
APS-C IMX342 | 298.13 x 223.6 mm |
4/3″ IMX367 | 203.87 x 204 mm |
4/3″ IMX387 | 251.60 x 141.87 mm |
