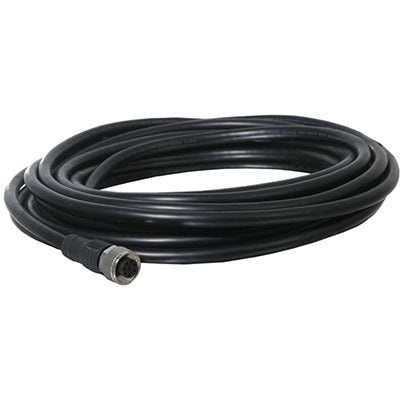

LC2-M12-5-FX Power Cable for EuroBrite Lights from Advanced Illumination, 2m Length

Advanced IlluminationSKU: LC2-M12-5-FX

Price:
Sale price$42.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

LC2-M12-2-FX Advanced Illumination Power Cable

This Advanced Illumination Cable is used for all Eurobrite Driver Lights. The LC2-M12-2-FX is compatible with any Advanced Illumination Light with a 5 Pin M12 Connection. This cable is designed to withstand the increased currents that the light may pull when used in overdrive strobe operation

Confirmed Compatibility with:

AL-S025300 Eurobrite Bar Light
RL-S052120 Eurobrite Ring Light
BL-S100150 Eurobrite Large Backlight
BL-S050075 Eurobrite Small Backlight
SL-S100150 Eurobrite Large Spot Light
SL-S050075 Eurobrite Small Spot Light

Manufacturer Description: Cable, M12, Female to Flying Leads, 5 pin, 2m

Standard Wiring Configuration for Eurobrite Lights

Pin Function Color Type
24 VDC BROWN Power
2 Thermal Foldback WHITE Input
3 GND BLUE Power
4 Trigger + BLACK Input
5 Analog GRAY Input



Standard Wiring Configuration for Eurobrite Lights

Advanced Illumination Wiring Diagram Eurobrite Lights
*Resistor may not be required, check datasheet for respective light


Analog Dimming of Eurobrite Lights

Advanced Illumination Wiring Diagram Eurobrite Lights Analog Dimming

Note: Eurobrite Lights can be analog dimmed in both Constant On and Overdrive Strobe Modes
