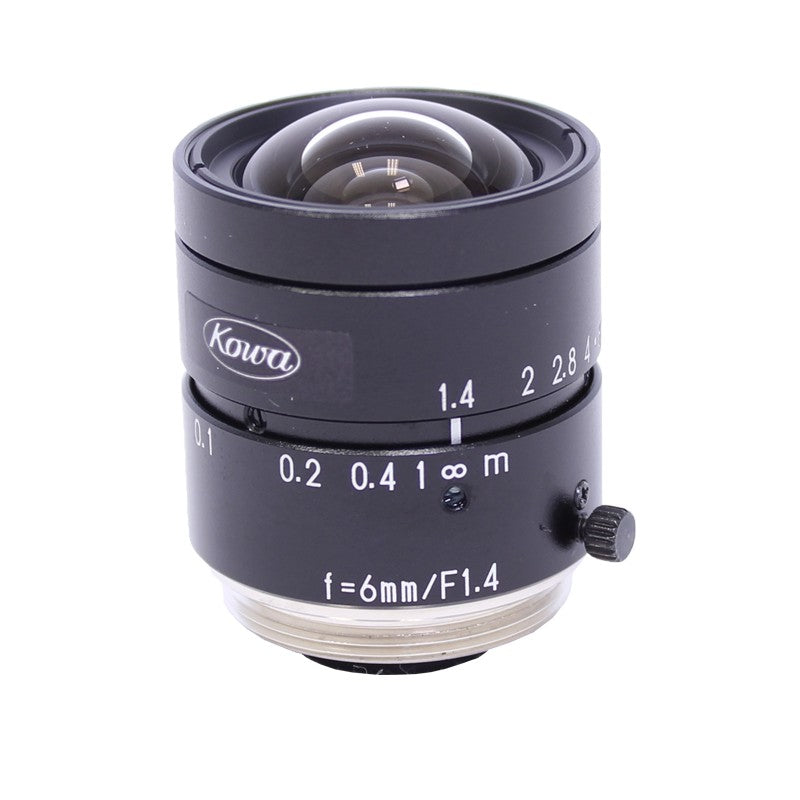

Kowa LM6JC
The 2/3″ JC lens series has a longstanding tradition of providing support to a wide range of vision systems. These lenses have low excellent resolution, and with focal lengths ranging from 6mm to 100mm, the JC lenses can be used in a wide variety of applications.
LM6JC Technical Specifications:
Product Line / Series | JC |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 6 mm |
ƒ/N | ƒ/1.4 - ƒ/16 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 5 μm |
Resolution (Line Pairs per mm @ Center) | 100 |
Resolution (Line Pairs per mm @ Corner) | 60 |
Weight | 65 Grams |
Mount | C-Mount |
Filter Thread | No Filter Threads |
Minimum Object Distance | 100 mm |
Magnification | 0.06× |
Front Diameter | 21.5 mm |
Rear Effective Diameter | 11 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.1 m - ∞ |
Back Focal Length | 11.3 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 30 × 30 × 32.8 mm |
Shooting Range at MOD | 190.6(H)×130.3(V) |
TV Distortion (%) | −10.7 |
Angle of View @ 1/1.8″ | 66.9° × 50.1° |
Angle of View @ 1/2″ | 59.4° × 44.5° |
Angle of View @ 2/3″ | 81.9° × 61.2° |
