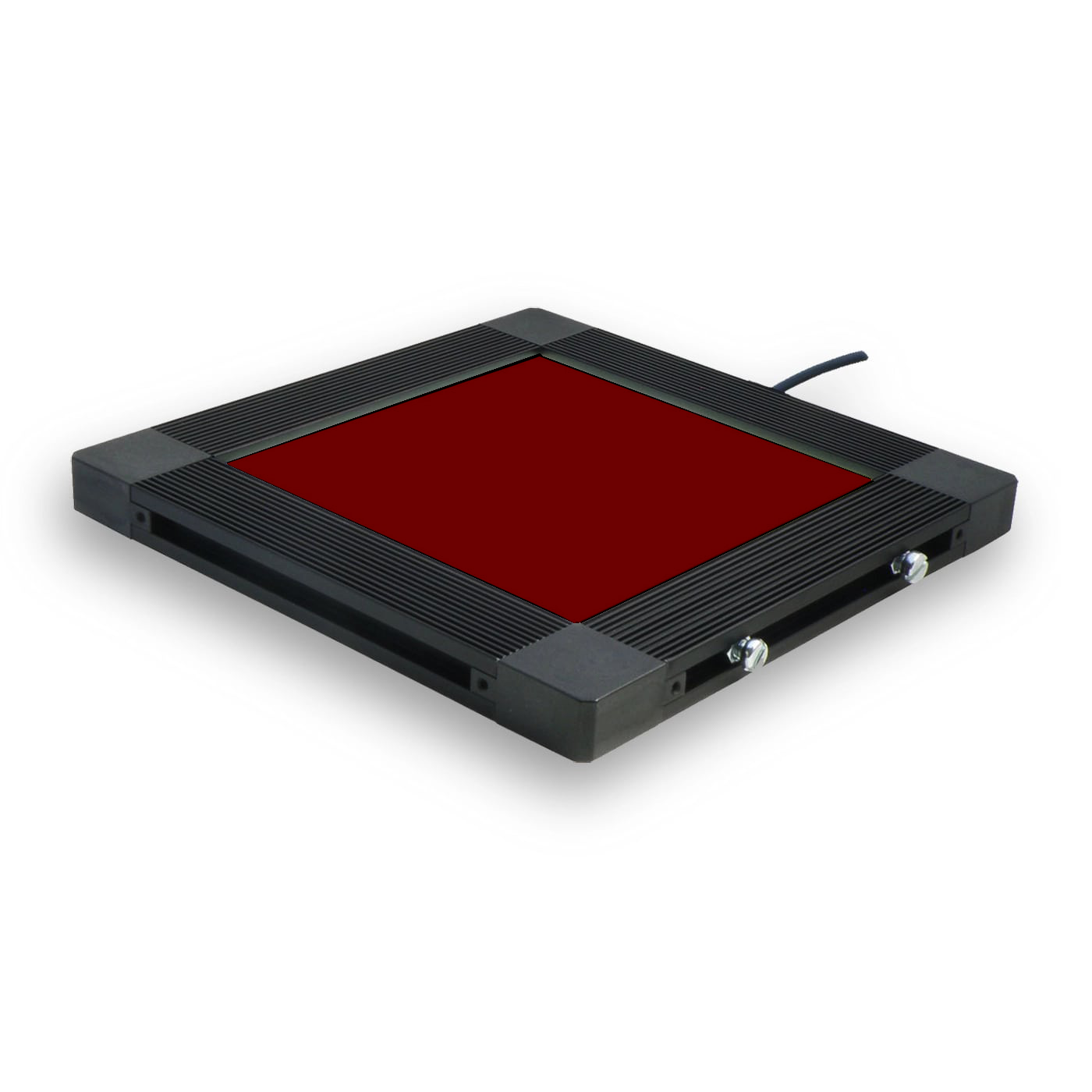

BX0606-850I3S EdgeLit BackLight, 850nm Infra-Red (IR), 06 in x 06 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BX0606-850I3S
Lead Time: 2 Weeks

Sale price$1,150.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Edge-Lit Backlights - BX Series

BX0606-850I3S Specifications:

Brand Advanced Illumination
Series BX
Wavelength 850
Color Infra-Red (IR)
Driver I3S
Ingress Protection IP50
Length 06 in
Width 06 in
Weight 984g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The BX series of Edge-lit Backlights are characterized by their high brightness and low heat output.

Available in the most common wavelengths. Also available with an optional polarizer.

Expandable sizes up to 24� X 24� (610mm) in increments of 1� (25mm).

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications

625 - 0.062A Per Square Inch Max

455, 530, WHI - 0.103A Per Square Inch Max

850 - 0.050A Per Square Inch Max

Normal Operating Temperature 0-60°C
Weight 4" X 4" unit - 560.6g (19.78oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
455nm Royal Blue
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BX Series Edge-Lit Backlights Mechanical Specs | Advanced Illumination


Optical Specs

 BX Series Edge-Lit Backlights Optical Specs | Advanced Illumination

Electrical Specs

BX Series Edge-Lit Backlights Electrical Specs | Advanced Illumination

Control Specs

BX Series Edge-Lit Backlights Control Specs | Advanced Illumination


Part No Key

 BX Series Edge-Lit Backlights Part No Key | Advanced Illumination

Advanced Illumination BX0606-850I3S Downloads:

Advanced Illumination BX0606-850I3S Datasheet | Machine Vision Direct
Advanced Illumination BX0606-850I3S CAD PDF | Machine Vision Direct
Advanced Illumination BX0606-850I3S CAD DXF | Machine Vision Direct
Advanced Illumination BX0606-850I3S CAD STEP MODEL | Machine Vision Direct
