BL2222-66024 Backlit BackLight, 660nm Red, 22 in x 22 in, 24 Volt Driver

Advanced IlluminationSKU: BL2222-66024
Lead Time: 3 Weeks

Price:
Sale price$5,426.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Back-lit Backlights - BL Series

BL2222-66024 Specifications:

Brand Advanced Illumination
Series BL
Wavelength 660
Color Red
Driver 24
Ingress Protection IP50
Length 22 in
Width 22 in
Weight 6393g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

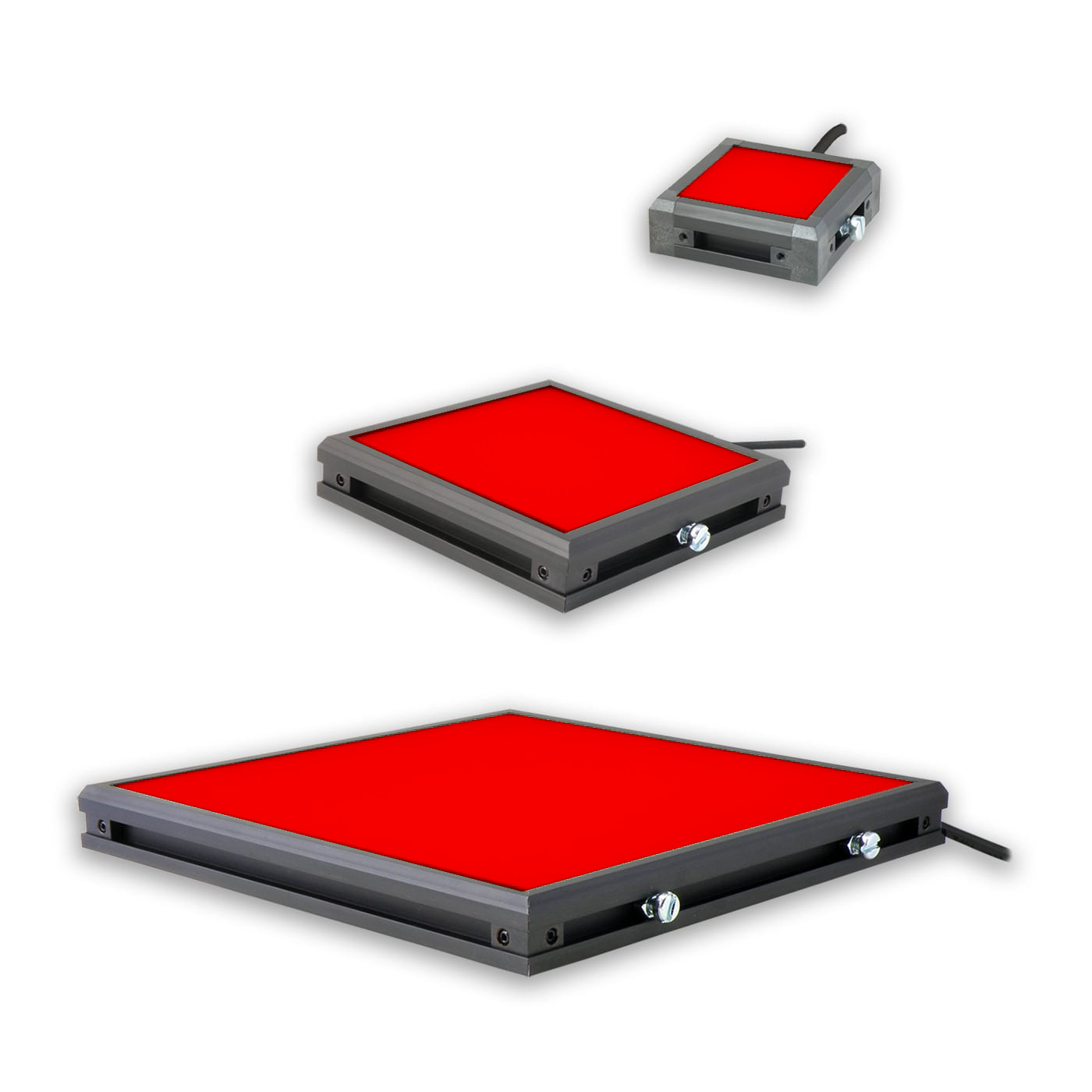

The BL Series of Back-lit Backlights offer a low profile design with a planar, back-lit array of LEDs.

BL Series backlights are part of our pre-engineered, expandable family of products.

Expandable products provide custom size and power options with short lead times.

Model numbers include the BL0202, BL0404, and BL0808.

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications 0.03A per sq. inch
Normal Operating Temperature

0 - 60°C

Weight 8" x 8" unit - 1034.2g (36.48oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.



Mechanical Specs

 BL Series Back-lit Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL Series Back-lit Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL Series Back-lit Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL Series Back-lit Backlights Control Specs | Advanced Illumination



Part No Key

 BL Series Back-lit Backlights Part No Key | Advanced Illumination

Advanced Illumination BL2222-66024 Downloads:

Advanced Illumination BL2222-66024 Datasheet | Machine Vision Direct
Advanced Illumination BL2222-66024 CAD PDF | Machine Vision Direct
Advanced Illumination BL2222-66024 CAD DXF | Machine Vision Direct
Advanced Illumination BL2222-66024 CAD STEP MODEL | Machine Vision Direct
