Back-lit Backlights - BL Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|

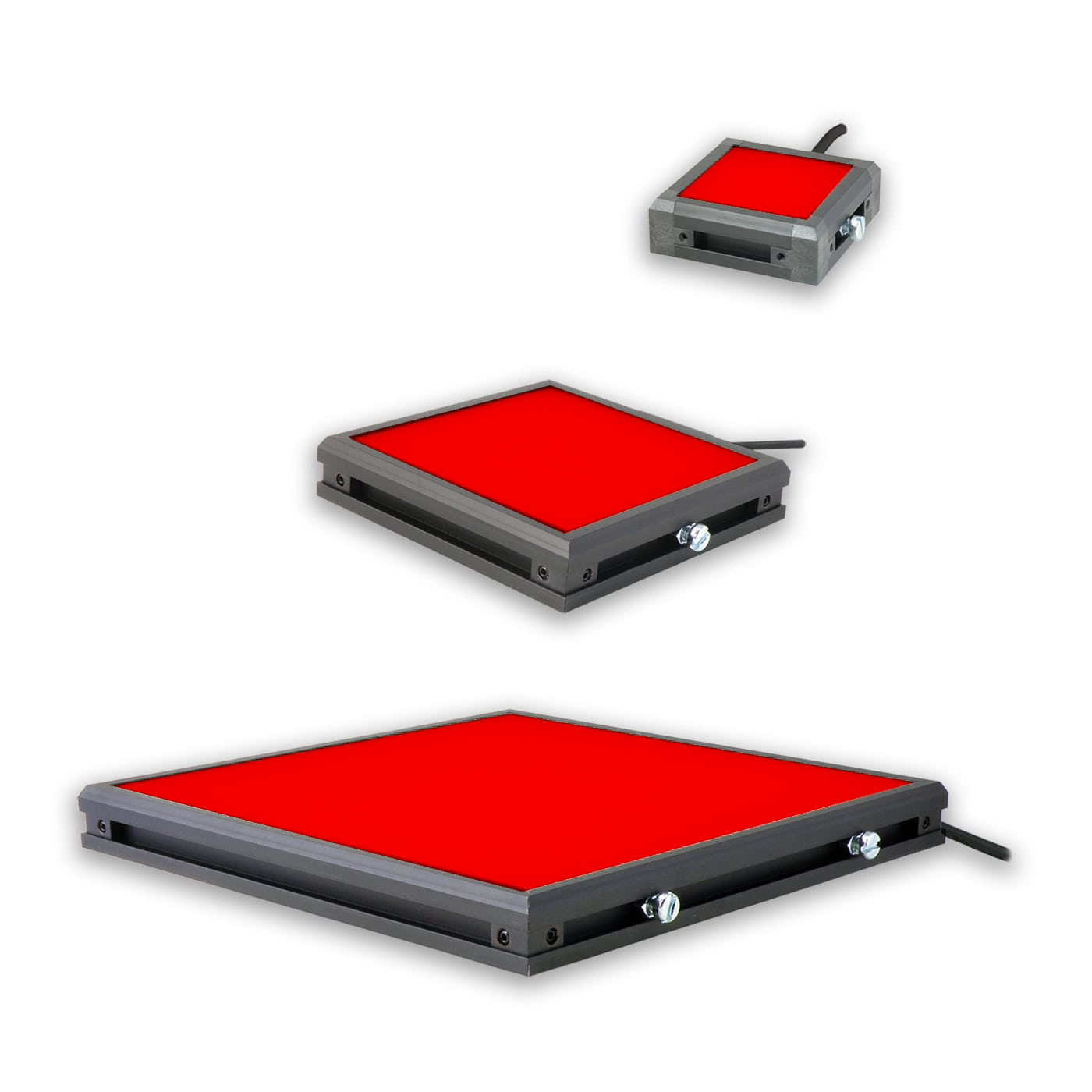

The BL Series of Back-lit Backlights offer a low profile design with a planar, back-lit array of LEDs.
BL Series backlights are part of our pre-engineered, expandable family of products.
Expandable products provide custom size and power options with short lead times.
Model numbers include the BL0202, BL0404, and BL0808.
This series comes with LB111 Mounting Brackets.
|Electrical Specifications||0.03A per sq. inch|
|Normal Operating Temperature||
0 - 60°C
|Weight||8" x 8" unit - 1034.2g (36.48oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||625nm Red Orange|
||880nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination BL1212-66024 Downloads:
