Description

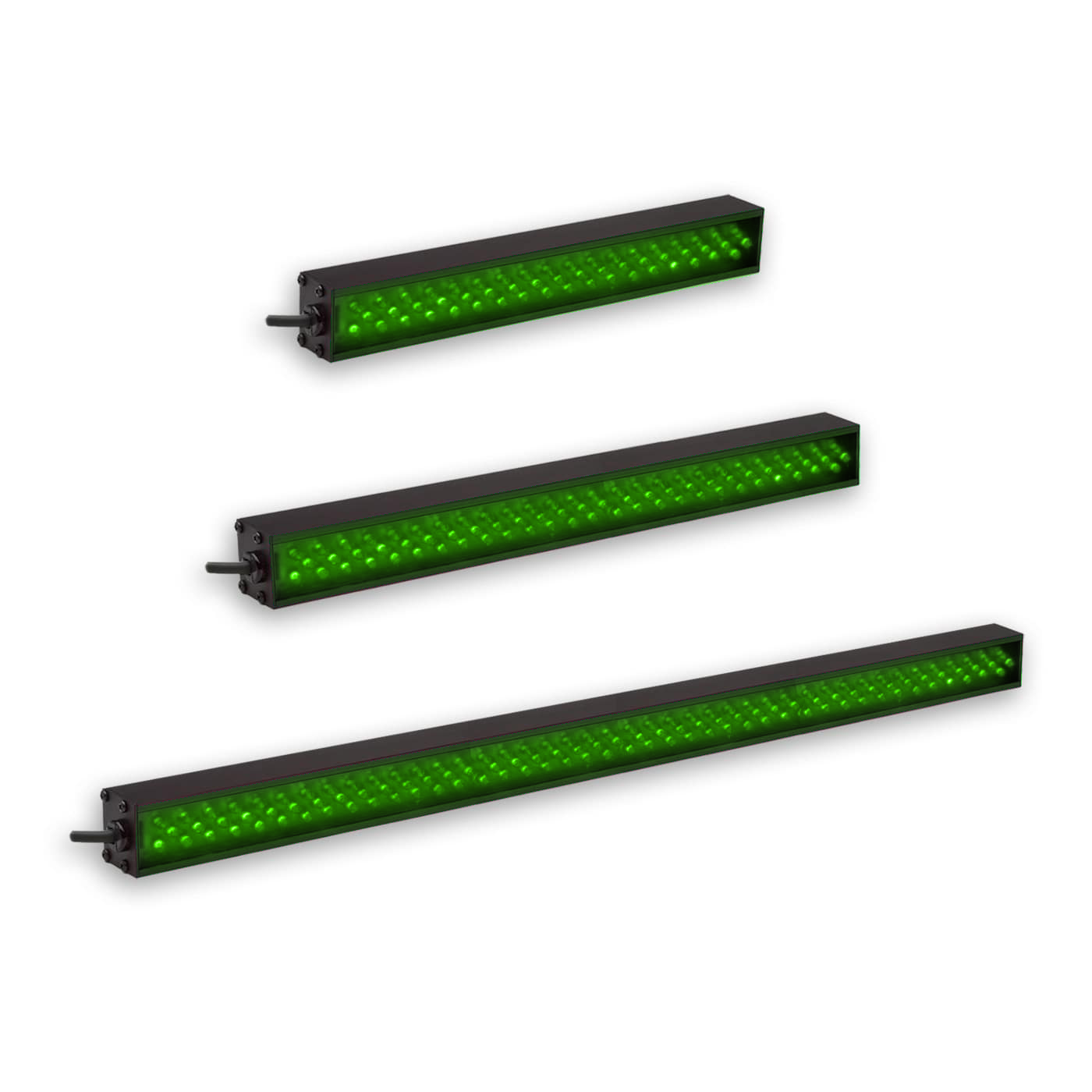

BALA Bar Lights - AL Series
AL150066-52024 Specifications:
Brand | Advanced Illumination |
Series | AL150 |
Wavelength | 520 |
Color | Green |
Driver | 24 |
Ingress Protection | IP50 |
Length | 11.7 in |
Weight | 435g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Designed for machine vision applications that require broad illumination over a wide area with controlled fall off.
This BALA (Broad Area Linear Array) bar light series is expandable in 1³ increments up to 82³.
Applications requiring an even wider area of illumination can utilize two BALA bar lights aligned in parallel, facing each other.
AL150 derivatives include AL4424 (4³), AL4554 (9³) and AL46120 (20³) (which represent legacy part numbers)
General Specs
Electrical Specifications |
0.10 A 0.08 A 0.09 A |
Normal Operating Temperature |
0 - 60°C |
Weight | Varies by size |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN. |
Photobiological Risk Factor |
EXEMPT APPLICABLE WAVELENGTHS: 880 GROUP 1 (LOW-RISK) APPLICABLE WAVELENGTHS: 470, 520, 625, 660, WHI GROUP 2 (MODERATE-RISK) APPLICABLE WAVELENGTHS: 395 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
395 | 395nm Ultra-Violet (UV) | |
470 | 470nm Blue | |
520 | 520nm Green | |
625 | 625nm Red Orange | |
660 | 660nm Red | |
880 | 880nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Bala Light Function Diagram
Part No Key
Advanced Illumination AL150066-52024 Downloads:
