AL150048 BALA Bar Light, 8.6 in

Advanced IlluminationSKU: AL150048-39524
Lead time: 2 Weeks

Color: UV (395nm)
Driver: 24 Volt
Price:
Sale price$1,157.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

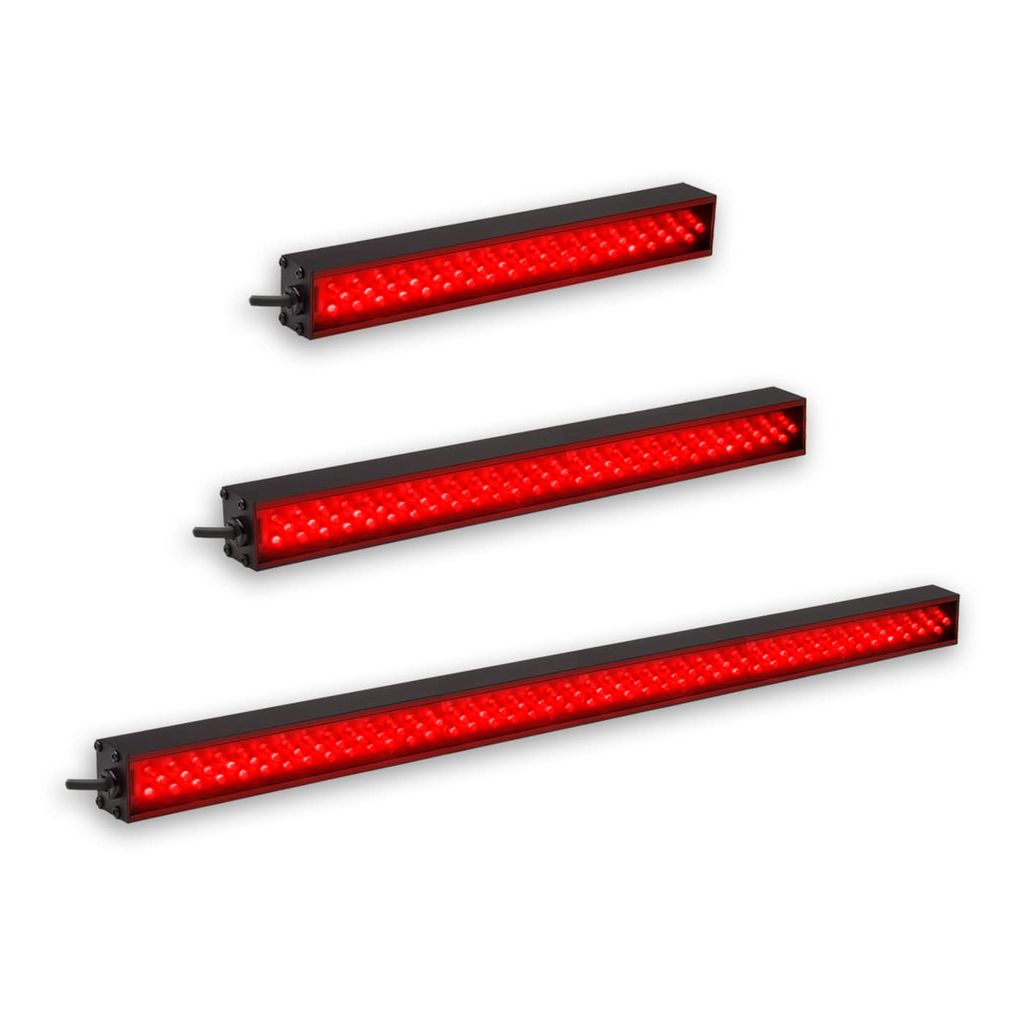

BALA Bar Lights - AL Series

AL150048 Specifications:

Brand Advanced Illumination
Series AL150
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection IP50
Length 8.6 in
Weight 363g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Designed for machine vision applications that require broad illumination over a wide area with controlled fall off.

This BALA (Broad Area Linear Array) bar light series is expandable in 1³ increments up to 82³.

Applications requiring an even wider area of illumination can utilize two BALA bar lights aligned in parallel, facing each other.

AL150 derivatives include AL4424 (4³), AL4554 (9³) and AL46120 (20³) (which represent legacy part numbers)

General Specs

Electrical Specifications

0.10 A

0.08 A

0.09 A
Normal Operating Temperature

0 - 60°C

Weight Varies by size
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN.
Photobiological Risk Factor EXEMPT APPLICABLE WAVELENGTHS: 880
GROUP 1 (LOW-RISK) APPLICABLE WAVELENGTHS: 470, 520, 625, 660, WHI
GROUP 2 (MODERATE-RISK) APPLICABLE WAVELENGTHS: 395
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 AL150 BALA Bar Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 AL150 BALA Bar Lights Optical Specs | Advanced Illumination
AL150 BALA Bar Lights Optical Specs | Advanced Illumination


Electrical Specs

 AL150 BALA Bar Lights Electrical Specs | Advanced Illumination



Control Specs

 AL150 BALA Bar Lights Control Specs | Advanced Illumination



Bala Light Function Diagram

 AL150 BALA Bar Lights Function Diagram | Advanced Illumination

Part No Key

 AL150 BALA Bar Lights Part No Key | Advanced Illumination

Advanced Illumination AL150048 Downloads:

Advanced Illumination AL150048 Datasheet | Machine Vision Direct
Advanced Illumination AL150048 CAD PDF | Machine Vision Direct
Advanced Illumination AL150048 CAD DXF | Machine Vision Direct
Advanced Illumination AL150048 CAD STEP MODEL | Machine Vision Direct
