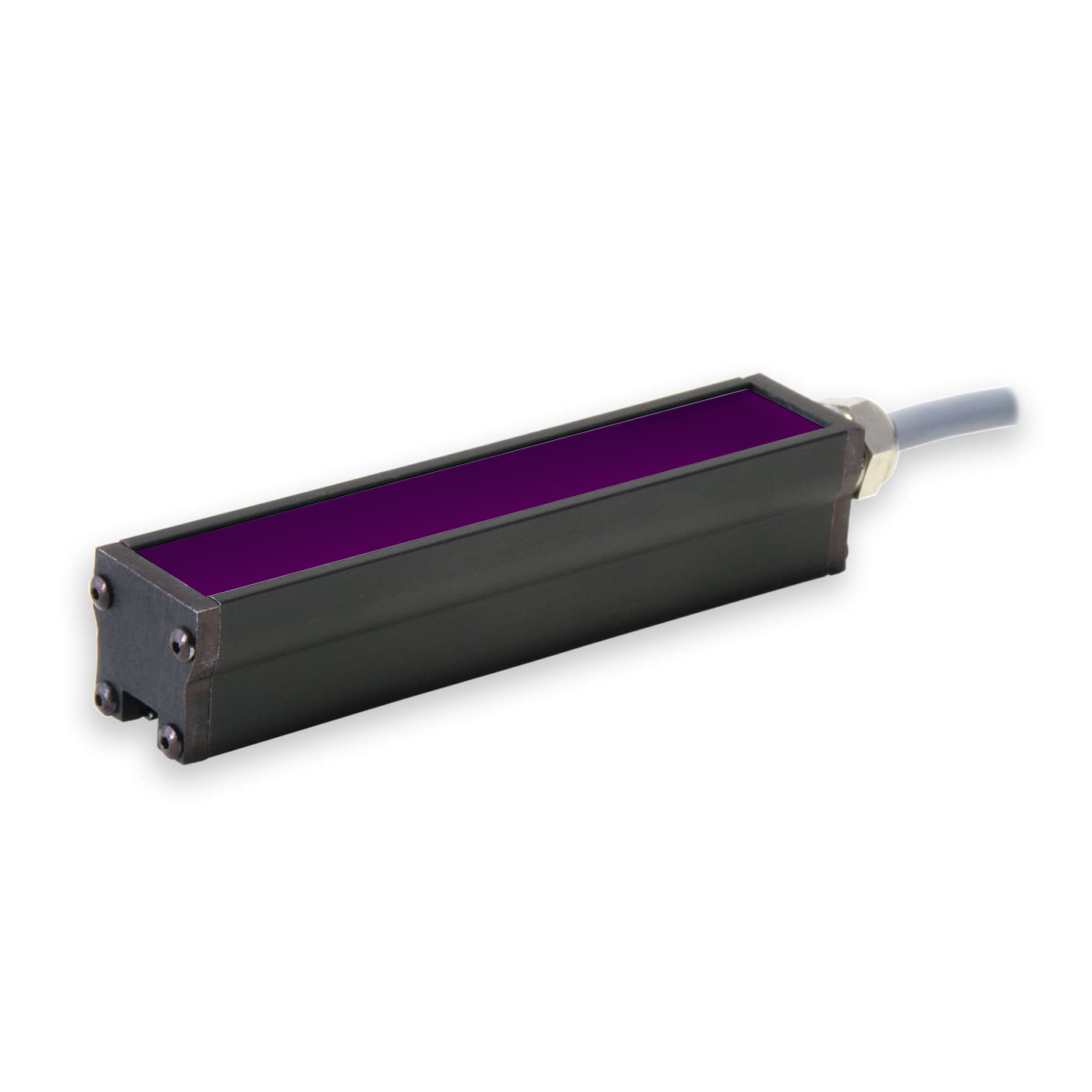

AL12606-36524 High Dispersion Narrow Bar Light, 365nm Ultra-Violet (UV), 06 in, 24 Volt Driver

Advanced IlluminationSKU: AL12606-36524
Lead Time: 2 Weeks

Price:
Sale price$1,092.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

High Dispersion Narrow Bar Lights - AL Series

AL12606-36524 Specifications:

Brand Advanced Illumination
Series AL126
Wavelength 365
Color Ultra-Violet (UV)
Driver 24
Ingress Protection IP50
Length 06 in
Weight 834g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

High dispersion for reflective surfaces and shorter working distances.

Provides a narrower and less intense illumination area than the AL116.

IP65 compliant washdown option is available, as are a wide spectrum of wavelengths.

Available with polarization and diffusion light conditioning.

This expandable compact bar light is pre-engineered for custom lengths in 2³ increments up to 40³.

General Specs

Electrical Specifications 0.06A per 2 inch
Normal Operating Temperature

0 - 60°C

Weight Per 4" (Sealed) 68.4g (2.4oz) (Nonsealed) 63.50mm (2.24oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating IP65 Sealed, IP50 Unsealed
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 AL126 High Dispersion Narrow Bar Lights Mechanical Specs | Advanced Illumination
AL126 High Dispersion Narrow Bar Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 AL126 High Dispersion Narrow Bar Lights Optical Specs | Advanced Illumination
AL126 High Dispersion Narrow Bar Lights Optical Specs | Advanced Illumination


Electrical Specs

 AL126 High Dispersion Narrow Bar Lights Electrical Specs | Advanced Illumination



Control Specs

 AL126 High Dispersion Narrow Bar Lights Control Specs | Advanced Illumination



Part No Key

 AL126 High Dispersion Narrow Bar Lights Part No Key | Advanced Illumination

Advanced Illumination AL12606-36524 Downloads:

Advanced Illumination AL12606-36524 Datasheet | Machine Vision Direct
Advanced Illumination AL12606-36524 CAD PDF | Machine Vision Direct
Advanced Illumination AL12606-36524 CAD DXF | Machine Vision Direct
Advanced Illumination AL12606-36524 CAD STEP MODEL | Machine Vision Direct
