Opto Engineering TCCP23260 2/3″ f/8 366 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCP23260

Precio:
Precio de venta$19,491.00 USD

Gastos de envío calculados en la caja

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

This price includes tariffs, based on the applicable tariff charges. Updated 04/30/2025, 06/04/2025, 06/05/25, and 10/23/25. Pricing is subject to change and may fluctuate.

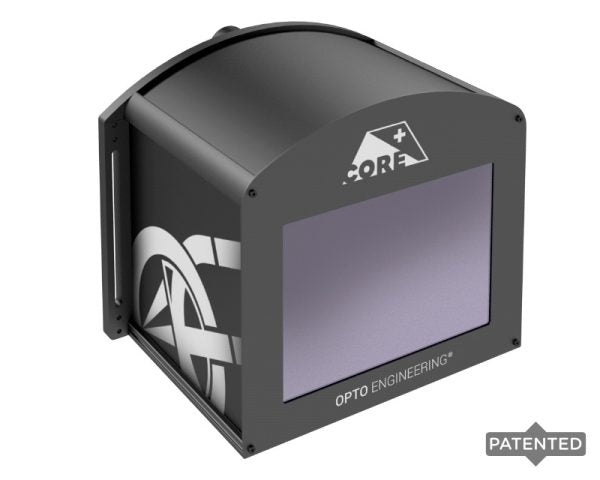

Opto Engineering TCCP23260

TC CORE PLUS series are large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their optomechanical design is ideal for measuring large objects in a reduced space. TC CORE PLUS series are up to 40% shorter than other telecentric lenses available. Their patent-pending optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.

The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make a measurement system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.

TCCP23260 Technical Specifications:

Product Line / Series TC CORE PLUS
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.036×
Image Circle Diameter Not Specified
Image Size Dimensions 8.93 x 7.45 mm
Imager Format 2/3″
Distortion Typical (%) < 0.9
Distortion Maximum (%) < 0.9
Residual Distortion (%) < 0.01
Phase Adjustment Yes
Telecentricity Typical < 0.18°
Telecentricity Maximum 0.22°
Working Distance 366 mm
Depth Of Field 319.4 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 141 μm
Mount C-Mount
Dimensions Approximate 435 x 397 x 480 mm
Weight 12337 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 158.33 x 118.89 mm
FoV @ 1/2″ 177.78 x 133.33 mm
FoV @ 1/1.8″ 198.06 x 148.06 mm
FoV @ 2/3″ 236.11 x 196.94 mm
