BP850-27 Broad Bandwidth NIR Bandpass Filter M27x0.5


Precio:
Precio de venta$119.40 USD

Gastos de envío calculados en la caja

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

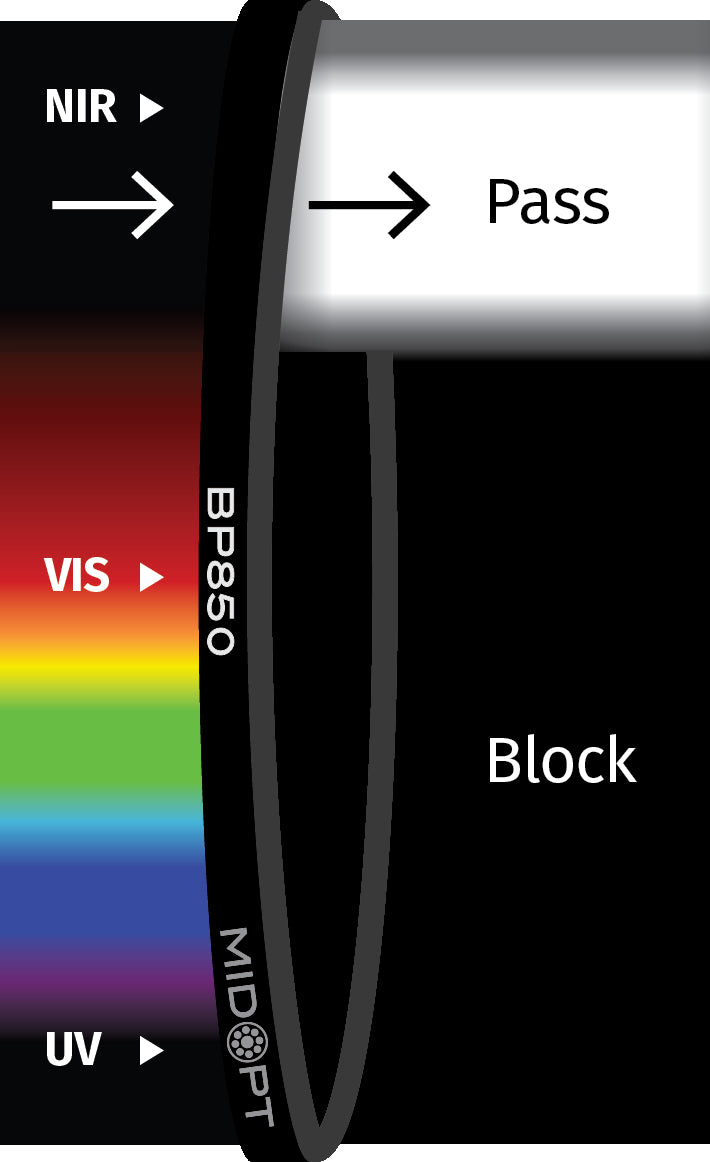

MidOpt BP850-27 Broad Bandwidth NIR Bandpass Filter

Recommended when using high-power 830-850nm LED or laser diode lighting to improve contrast in surveillance applications or when inspecting in the infrared, this filter features high peak transmission and exceptionally durable, robust coatings. This filter’s coated surface also significantly inhibits staining due to year-round heat, humidity, and air quality issues that affect uncoated infrared filters.

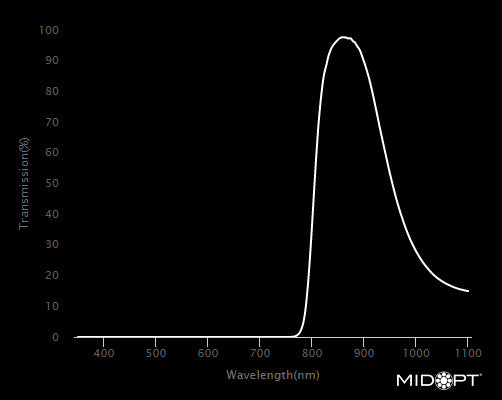

MidOpt BP850-27 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP850
Filter Type Broad Bandwidth NIR Bandpass
StablEDGE Yes
Useful Range 820nm - 910nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 27mm
Filter Thread M27x0.5
Outer Diameter 32.5mm
Clear Aperture 22.5mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 160nm
Compatible LED 840nm, 850nm
Average Transmission Not Specified
Brand Midwest Optical Systems
