APG C2-BQ | None Enclosure Powdercoat Viewport

APG VisionSKU: C2-BQ
Lead Time: 1-2 Weeks

Precio:
Precio de venta$1,001.00 USD

Gastos de envío calculados en la caja

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

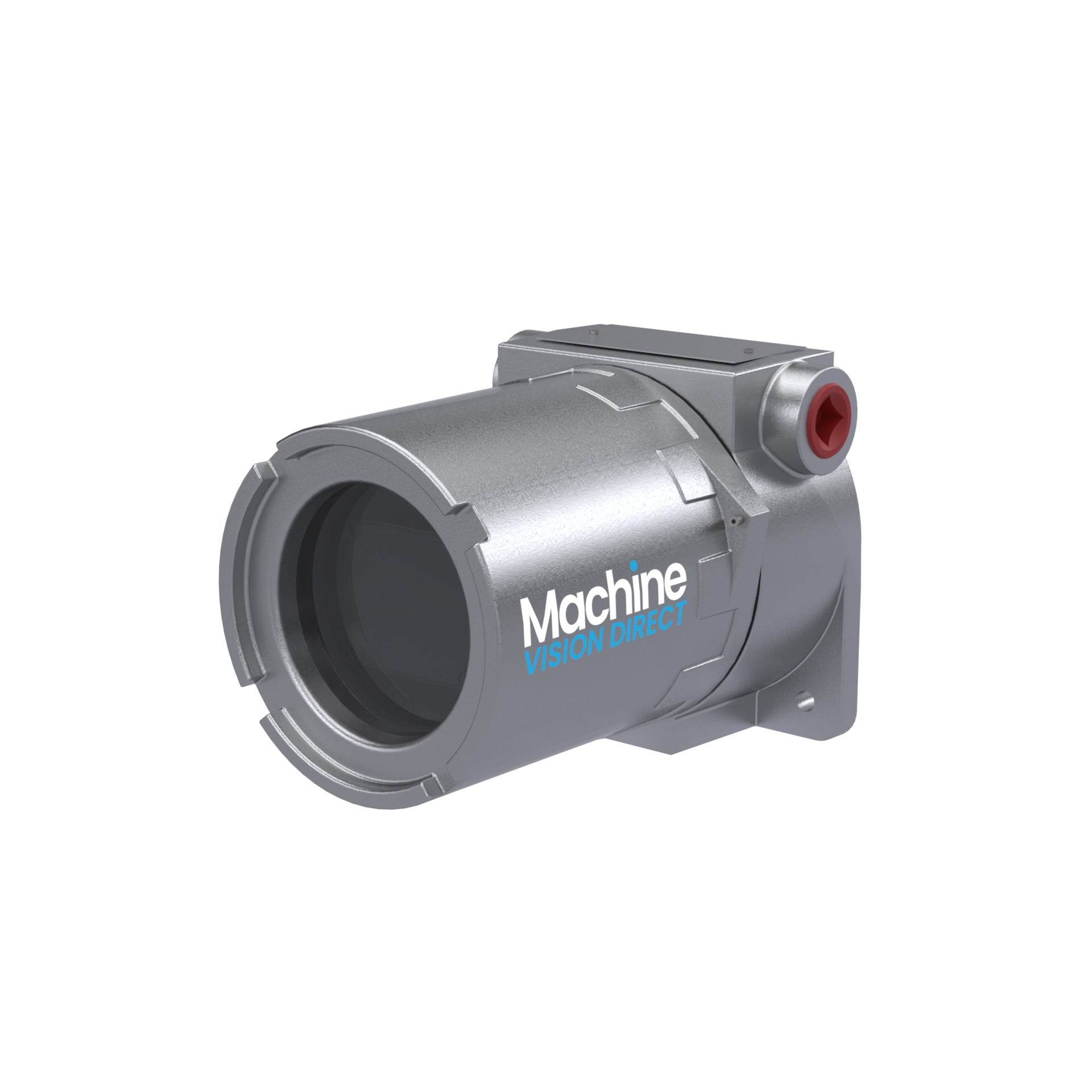

C2 SERIES EXPLOSION PROOF HOUSING WITH M3 37mm O.C. SLOTTED ARM, STANDARD APPROVALS: UL/cUL CLASS I, DIVISION 1, GROUP B; NEMA TYPES 4X/7/9, ATEX CERTIFIED, GLASS VP, SAFETY BLUE

APG Vision C2-BQ

C2-BQ Enclosure Technical Specifications:

Product Line / Series C2
Class Explosion Proof
Brand APG Vision
Body Material Aluminum Cast
Body Finish Powdercoat
Viewport Material Glass
Viewport Finish None
Gasket Material Buna-N
Washdown Yes
Corrosive Environment Yes
Food Grade No
Pan & Tilt Capable No
Mounting OC Arm 37mm
IP Rating IP68
NEMA Enclosure Rating NEMA 4X
Cable Gland None
Barrel Length 6″
Length 194.1 mm
Width 138.1 mm
Height 143.6 mm
Weight 3165 Grams
