Lead Times
Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us
Description
This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

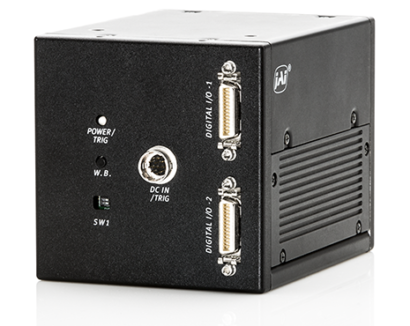

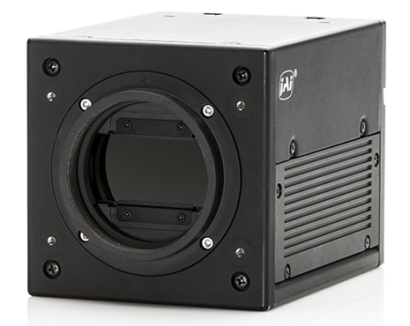

The Wave Series WA-1000D-CL camera is a dual-band 1K line scan camera capable of sensing Short Wave InfraRed (SWIR) light. The camera is based on Indium/Gallium/Arsenide (InGaAs) sensor technology and JAI’s prism line scan technology, making it capable of delivering dual-band imaging in the SWIR light spectrum (900 – 1700 nm).
Sweep+ Series: 3 and 4-sensor color line scan cameras
The Sweep+ Series comprises 3-sensor R-G-B and 4-sensor R-G-B-NIR or R-G-B-SWIR line scan cameras for industrial machine vision applications. They features state-off-the-art prism technology providing the best possible performance, precision, and versatility for line scan imaging in continuous production flows.
Technical Specifications
Product Line | Sweep+ Series |
Model | WA-1000D-CL |
Type | Line Scan |
Color/Monochrome | Multispectral |
Light Spectrum | 4-Bands R-G-B + NIR |
Resolution | N/A |
Resolution WxH | 8192 x 1 px |
Frame Rate/Line Rate | 36 kHz |
ROI | Yes |
Interface | 10 Gbps GigE Vision |
Sensors | 4xCMOS RGB/NIR |
Sensor Model | Custom |
Optical Format | 30.72 mm |
Cell Size | 3.75 x 5.78 µm |
Shutter | Global shutter |
Sensor Diagonal | 30.8 mm |
Active Sensor Dimensions | 30.8 mm |
Camera Dimensions | 90 x 90 x 120 mm |
Weight | 980 g |
Video | |
Lens Mount | M52-Mount |
Power Consumption | 19.3 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
