Description
DFLW-200-4Z (KIT) Dark Field Washdown Ring Light with Zones
Description

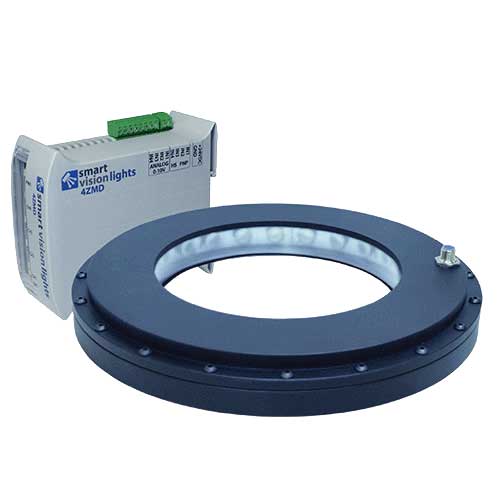

The DFLW-200-4Z Dark Field Washdown Ring Light is IP68 rated and comes in an anodized black aluminum housing. The DFLW-200-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive, allowing a range to be set from 10%-100% for continuous operation or OverDrive strobe mode. The DFLW-200-4Z (KIT) includes a DFLW-200-4Z, a 4ZMD-750 external driver and a 5PM12-J2000-KR jumper cable (2000 mm in length).
Product Details
- Four individual zones built into a single light
- Microlens turning film directs a beam of light at a 25º angle towards an object, resulting in a high concentration and uniform field of illumination
- SafeStrobe technology ensures protected operation of LEDs
- Requires Separate Driver (4ZMD-750)
Wavelength Colors
Understanding Zones

Adjusting Intensity

Smart Vision Lights DFLW-200-4Z Technical Specifications
DFLW-200-4Z Continuous Operation Specifications (Per Channel)
Maximum Input Current | 250 mA |
Input Connector | 5-pin M12 connector (male reverse-key) |
Operating Temperature | -10° - 40° C (14°-104° F) | RH max 80% non-condensing humidity |
Weight | ~365g |
IP Rating | IP65 |
Warranty | 10 years |
Compliances | CE, RoHS, IEC 62471 |
DFLW-200-4Z OverDrive Operation Specifications (Per Channel)
Maximum Input Current | 2 A Maximum: strobe duration = 50 ms, Duty cycle = 10% |
Input Connector | 5-pin M12 connector (male reverse-key) |
Operating Temperature | -10° - 40° C (14°-104° F) | RH max 80% non-condensing humidity |
Weight | ~365g |
IP Rating | IP65 |
Warranty | 10 years |
Compliances | CE, RoHS, IEC 62471 |
Smart Vision Lights 4ZMD-750 Technical Specifications
OUTPUT PER CHANNEL (MAX)
Maximum LED Continuous Current | 750mA |
Maximum LED OverDrive Current | 6A |
OUTPUT PER CHANNEL (MAX)
Continuous Input Current | 2.1 A |
Continuous Input Power | 50.4 W |
OverDrive Input Current | 19 A |
OverDrive Input Power | 460 W |
MOUNTING
Qty 4 M6 Tapped Holes are available on the rear of the light for mounting. 4 M6 Hex Head Bolts are included with the light. See drawing for most up to date details.
Possible Product Configurations:
DFLW-200-4Z-470

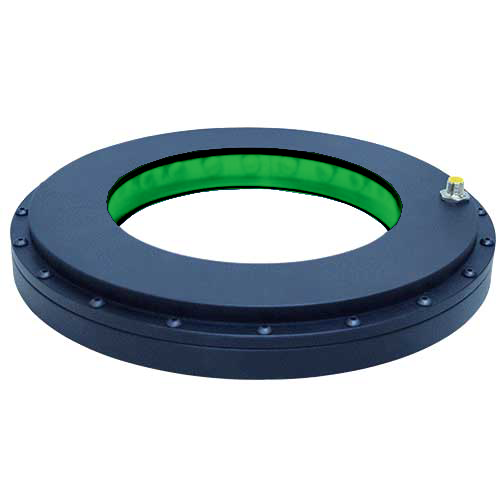

DFLW-200-4Z-530

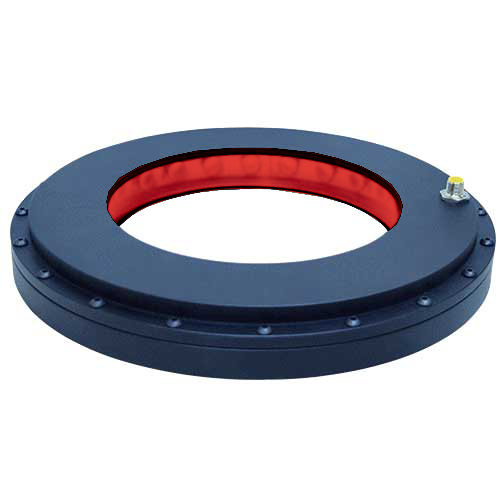

DFLW-200-4Z-625

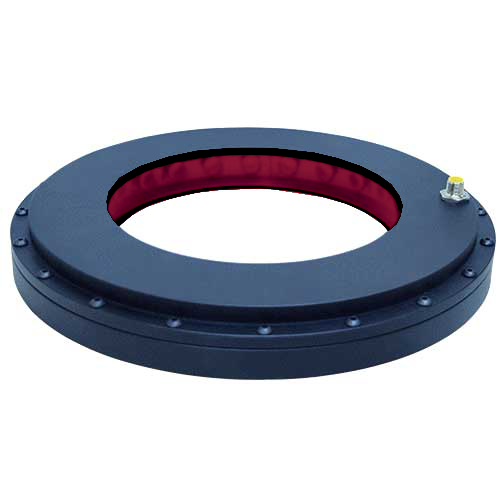

DFLW-200-4Z-850

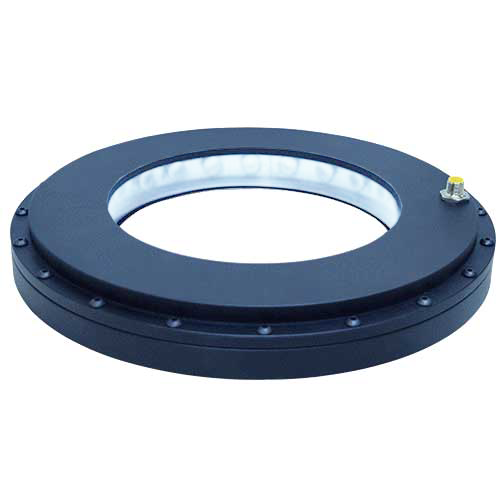

DFLW-200-4Z-WHI
DFLW-200-4Z-470-KIT
DFLW-200-4Z-530-KIT
DFLW-200-4Z-625-KIT
DFLW-200-4Z-850-KIT
DFLW-200-4Z-WHI-KIT
