ODRL300 Overdrive Large Area Ring Light (12" x 12")

Smart Vision LightsSKU: ODRL300-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$2,029.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

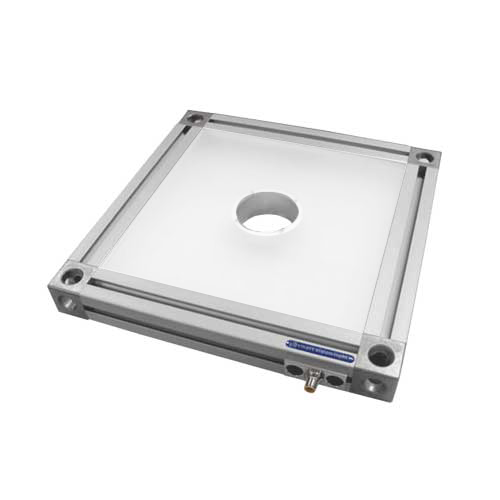

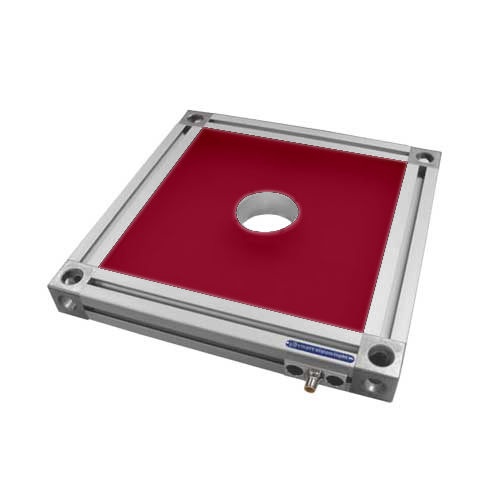

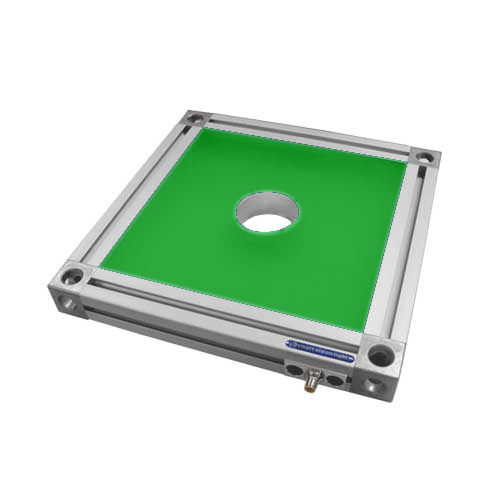

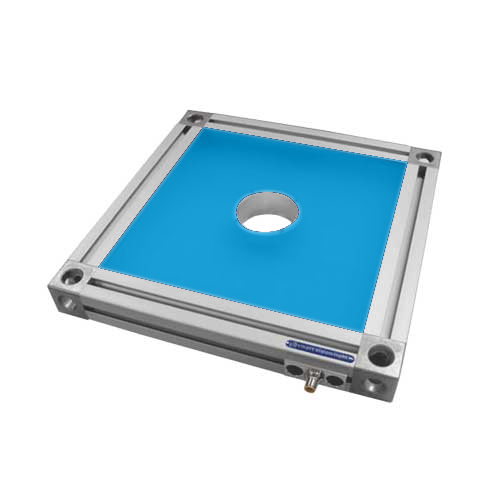

RL300 Large Area Ring Lights (RL200 Pictured Above)

Product Details

  • 128 High Output LED’s
  • Different Lenses Available
  • 45mm Industrial Frame with T-Slot
  • Driver built in - No External wiring to a driver
  • Continuous operation or Strobe mode
  • Analog intensity via 0-10VDC signal
  • PNP and NPN Strobe input

Smart Vision Lights ODRL300 Technical Specifications

ODRL300 Continuous Operation Specifications

Electrical Input 24VDC +/- 5%
Input Current  Max. 14 A per connector | 28 A total
Input Power  Max. 336 W per connector | 672 W total
Trigger Input PNP > +4VDC or greater to activate | NPN > GND (<VDC) to activate
PNP Trigger
2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Ground (0VDC)
Strobe Duration Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.*
Analog Intensity The output is adjustable from 10%–100% of brightness by a 1–10VDC signal.
(Jumpering pin 5 to pin 1 will provide maximum intensity).
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F ) | RH max 80% non-condensing humidity
Storage Temperature
20° - 70° C (-4° - 158° F) | RH max 80% non-condensing humidity
IP Rating  IP50
Weight ~183g
Compliances CE, RoHS, IEC 62471
Warranty 10 years**



Wavelength Colors
ODRL300 Wavelength Colors

Wiring

MOUNTING
Mount Using Standard T-nut with 5/16-18x1/2” bolt
Note: T-Nuts are not included. It is reccomended to use drop in style T-Nuts.

DOWNLOADS

ODRL300 DOWNLOADS
DATASHEET
STEP MODEL
DXF DRAWING
PDF DRAWING



Possible Product Configurations:
ODRL300-470
ODRL300-505
ODRL300-530
ODRL300-625
ODRL300-850
ODRL300-WHI
ODRL300-470-L
ODRL300-505-L
ODRL300-530-L
ODRL300-625-L
ODRL300-850-L
ODRL300-WHI-L
