OUTPUT PER CHANNEL (MAX)
| Maximum LED Continuous Current | 750mA |
| Maximum LED OverDrive Current | 6A |
OUTPUT PER CHANNEL (MAX)
| Continuous Input Current | 2.1A |
| Continuous Input Power | 50.4 W |
| OverDrive Input Current | 19 A |
| OverDrive Input Power | 460 W |
Lead Times
Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us
Description

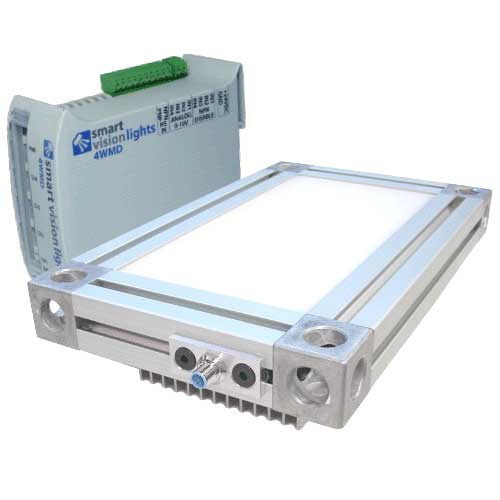

MOBL series HIGH OUTPUT: High Power Backlights for the machine vision industry The MOBL (RGBW) Backlight Series is designed for maximum output and includes four wavelengths. Each wavelength is independent and can be tuned individually, allowing for the light to output just about any color imaginable. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The MOBL (RGBW) Backlight Kit includes a MOBL RGBW backlight, external driver, and reverse-key jumper cable. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.
Product Details
- PNP and NPN high speed trigger signal input
- 24VDC
- NPN and PNP Strobe
- 45mm industrial extrusion for mounting
- 5-pin M12 quick connect (reverse key)
- Kit includes a MOBL RGBW backlight, external driver, and reverse-key jumper cable.
Smart Vision Lights MOBL-150x150-RGBW-KIT Technical Specifications
MOBL-150x150-RGBW-KIT Specifications
| Weight | ~3.08 kg | 6.8 lbs |
| Max LED Current/Channel |
750mA/channel Continuous 6A/channel OverDrive Strobe |
| Input Connector | 5-pin M12 connector (male — reverse-key) |
| Max Strobe Duration |
Continuous: Not Applicable OverDrive Strobe: 50ms |
| Max Duty Cycle |
Continuous: Not Applicable OverDrive Strobe: 10 % |
| Ambient Temperature | 0º – 45º C (32º – 114º F) |
| IP Rating | IP50 |
| Compliances | CE, RoHS, IEC 62471. |
4WMD Specifications Standard (Per Channel)
| Electrical Input | 24VDC +/- 5% |
| Electrical Input Connector | 2 position screw terminal block – 14 AWG max wire size |
| Operating Current (No Load) | 70 mA |
| Number of Input Channels | 4 |
| Input Connector |
10 position screw terminal block – 14 AWG max wire size (4 for channel control, 4 for analog, and 2 for PNP/NPN strobing/trigger) |
| Max Input Channel Voltage | Not to exceed electrical input voltage |
| On / Off Trigger Input |
PNP mode: +4VDC or greater to activate (max 26VDC) NPN mode: GND (<1VDC) to activate |
| Input Channel Current |
PNP line: 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC NPN line: 15 mA @ Ground (0VDC) |
| Analog Intensity |
Continuous Operation: The output is adjustable from 10%–100% of intensity by applying 1–10 V DC signal OverDriveTM Strobe Mode: Apply 0 V DC |
| Output Channels | 4 channels for LED tuning control |
| Output Connectors |
1 - 5-pin M12 Reverse Key connector 1- 5 position screw terminal block – 14 AWG max wire size |
| Indicator Lights |
Power on = Green light Individual channels = Yellow light Service = Red light |
| Indicator Lights | Power on = Green light Ethernet = 2 indicator lights |
| Mounting | DIN rail |
| Dimensions | H = 102 mm (4.0"), L = 119 mm (4.7"), W = 45 mm (1.8") |
| Ambient Temperature | -18º–40º C (0º–104º F) |
| Ambient Humidity | 0–95% non-condensing |
| Weight | Standard ~233g; High-Current ~425g |
| Compliances | CE, RoHS |
| Terminal Blocks (Included With 4WMD) |
2 position terminal block plug 5 position terminal block plug 10 position terminal block plug |
ILLUMINATION TECHNOLOGY
MOBL Backlights are Area Lit. Each SOBL has LEDs placed to dispense an even light flow throughout the lighted surface area
Recommended illumination usage: Backlighting
Using the Reverse-Key 5-pin M12 Connector
When connecting a Smart Vision Lights™ RGBW light to the 4WMD, a reverse-key 5-pin M12 cable is required. All Smart Vision Lights™ RGBW lights come equipped with a 5-pin reverse-key connector. With very little wiring needed, the reverse-key 5-pin M12 connector simplifies connecting lights to the 4WMD
NOTE: Smart Vision Lights™ uses reverse-key cables that have a blue-grey tip on the connectors. A 2 meter version of the cable is included when ordered (Part number: 5PM12-J2000-KR)
| PIN | CHANNEL | COLOR |
| 1 | COMMON | BROWN |
| 2 | 1 | WHITE |
| 3 | 2 | BLUE |
| 4 | 3 | BLACK |
| 5 | 4 | GRAY |
HOW TO DISABLE A CHANNEL
| If one or more wavelengths are not needed, the channels associated with the wavelength can be disable. Disabling a channel will turn off the wavelength. To disable a channel, connect that channel to ground (GND). Example: To disable channel 4, connect NPN Disable IN 4 to GND. |  |
TUNING WAVELENGTHS
The 4WMD allows for the tuning of up to four individual wavelength intensities. Depending on its configuration, a channel can tune the output intensity of a given wavelength for either continuous operation or OverDrive™ strobe mode. Each channel can be tuned for continuous operation or OverDrive™ strobe mode. Continuous operation and OverDrive™ cannot be used simultaneously. Each channel has a yellow indicator light that illuminates when the channel is active
WAVELENGTH ASSIGNMENTS
When connecting the RMX140-RGBW to the 4WMD, wavelength are set to be controlled as followed.
4WMD DRIVER OVERVIEW
The 4WMD permits up to four independent channels to be tuned individually. The 4WWD has independent tuning controls and built-in MultiDrive™, allowing for the intensity range to be set from 10%–100% for continuous operations or OverDrive™ strobe mode. In addition, when in continuous operation mode, the intensity can be adjusted using the analog signal line. Disabling a channel will turn off the wavelength tied to that channel. Each output channel has its own tuning control located on the front of the driver
MOUNTING
Smart Vision Lights recommends using drop-in T-nuts for mounting a MOBL Backlight. The MOBL extrusion has a Bosch size 10 T-nut channel. It is recommended to use drop in style T-Nuts.
CUSTOM SIZES
SVL can customize an MOBL to the size you need - When requesting a custom MOBL, include the following: size (length x width) in millimeters, what side the 5-pin M12 connector should be placed on, and desired wavelength (color).
P.A.L. (PATTERN AREA LIGHTING)
Patterned Area Lighting™ (PAL) is designed to help simplify inspecting specular surface inspection by combining 2D and 3D qualitative methods into one image. PAL lighting features patterns printed directly on the lens, allowing users to quickly and easily detect defects that are nearly impossible to discover otherwise. PAL lighting is best used for phase measuring deflectometry applications, such as looking for chips, dents, scratches, scruffs, and even peeling paint. PAL patterns can be printed on the Diffuse Ring Light Panels. If you would like Pattern Area Lighting, please contact sales@machinevisiondirect.com and our staff will help with your customization request.
MOBL-150x150 Downloads
 |
 |
 |
 |
Possible Product Configurations:
MOBL-150x150-RGBW-KIT
