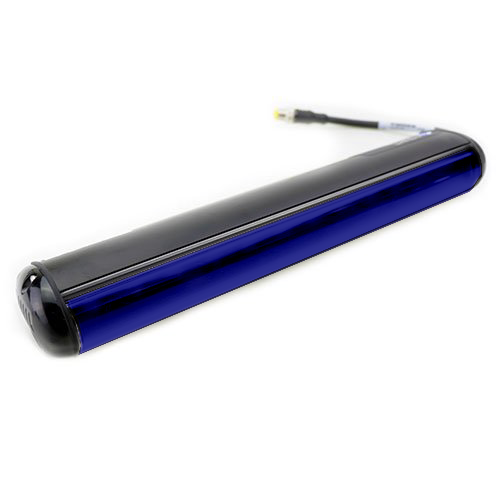

LE900 Light Everything Series Bar Light (36")

Smart Vision LightsSKU: LE900-WHI
Lead time: 3 Business Days

Color: WHITE
Lens: Standard
Price:
Sale price$962.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Inspired by European style, the LE Series lights offer everything needed in one sleek design, including rugged IP65-rated housing, strobe and constant operation capability, and the convenience of aluminum extrusion T-slot mounting. The housings with internal driver are sealed to provide drip-proof/splash-proof protection, and the aluminum design provides maximum heat dissipation and ventilation to allow for pressure equalization. The LE is among the first products to include Smart Vision Lights’ new Multi-Drive™ driver, which allows the light to operate in constant output mode or in OverDrive strobe operation. Details
  • Sealed to IP65 standards
  • Driver Built In - No External Wiring To A Driver
  • NPN or PNP Signal Options
  • Continuous Operation or Strobe Mode
  • Built In Industry Standard 5-Pin M12 connector
  • Drip Proof / Splash Proof
  • Light is not designed for outdoor use

Smart Vision Lights LE900 Technical Specifications

LE900 Continuous Operation Specifications

Electrical Input 24VDC +/- 5%
Current 750mA per 300mm (12”)
Wattage 18W per 300mm (12”)
ON/OFF Input PNP ► +4VDC or greater to activate │ NPN ► GND (<1VDC) to activate 5μS LED activation time
PNP Line 3.7mA @ 3VDC │6.2mA @ 5VDC │ 12.6mA @ 10VDC │ 30.4mA @ 24VDC
NPN Line 22mA @ Common (0VDC)
Continuous Mode Light will be in continuous mode by leaving signal on NPN/PNP input active
Connection 5 pin M12 connector
Ambient Temperature -40º - 50º C (-40º - 122º F)
IP Rating IP65



LE900 OverDrive Operation Specifications

Electrical Input 24VDC +/- 5%
Current 5A during strobe per 300mm 500mA Max. Avg. per 300mm
Wattage 120W during strobe per 300mm 12W Max. Avg. per 300mm
Strobe Input PNP ► +4VDC or greater to activate │ NPN ► GND (<1VDC) to activate 5μS LED activation time
PNP Line 3.7mA @ 3VDC │6.2mA @ 5VDC │ 12.6mA @ 10VDC │ 30.4mA @ 24VDC
NPN Line 22mA @ Common (0VDC)
OverDrive Mode Connect Pin 5 to GND (more info. in wiring configuration)
Duty Cycle Max.10%
Strobe Duration Max. 50mS
Connection 5 pin M12 connector
Ambient Temperature -40º - 50º C (-40º - 122º F)
IP Rating IP65



LE900 Downloads

LE900 Datasheet | Smart Vision Lights LE900 3D STEP Model | Smart Vision Lights
LE900 2D DXF Drawing | Smart Vision Lights LE900 PDF Dimension Drawing | Smart Vision Lights



Possible Part Configurations:
LE900-470
LE900-505
LE900-530
LE900-625
LE900-850
LE900-940
LE900-WHI
LE900-470-W
LE900-505-W
LE900-530-W
LE900-625-W
LE900-850-W
LE900-940-W
LE900-WHI-W
LE900-470-L
LE900-505-L
LE900-530-L
LE900-625-L
LE900-850-L
LE900-940-L
LE900-WHI-L
