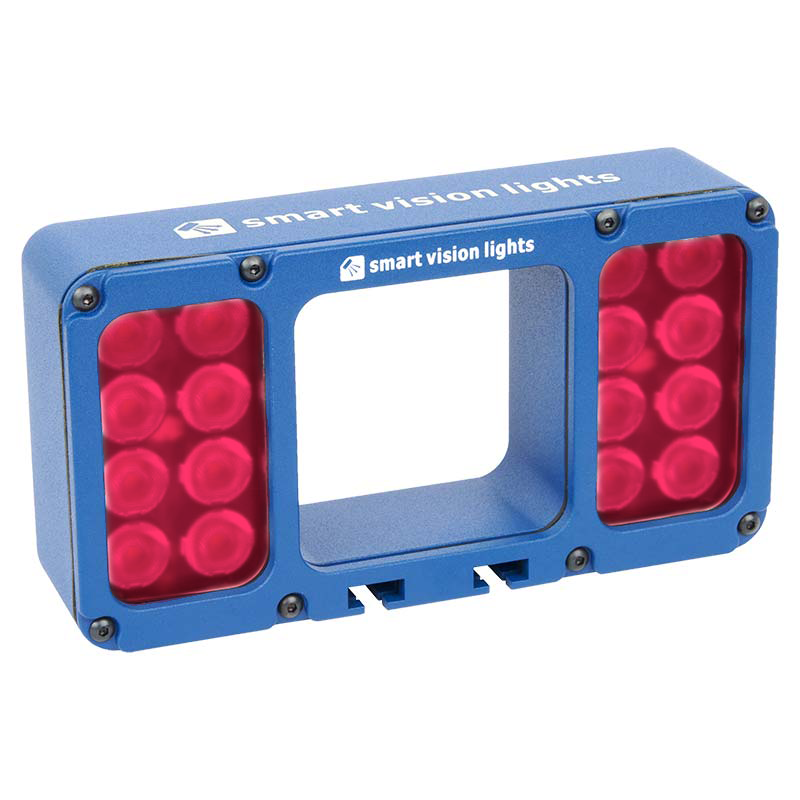

JWL150-MD-850-N10 | JWL150-MD Camera to Light Ring Light | 850nm IR Light, Narrow 10 Degree Lens

Smart Vision LightsSKU: JWL150-MD-850-N10

Price:
Sale price$679.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

JWL150-MD Lightgistics Ring Lights

Smart Vision Lights JWL150-MD Technical Specifications

Continuous Operation Specifications

Electrical Input 24VDC +/€“5%
Input Current 750 mA Maximum
Input Power 18 Watts
PNP Trigger

2 mA @ 4 VDC
7 mA @ 12 VDC
13.4 @ 24 VDC

NPN Trigger 9.9 mA @ Common (0VDC)
Trigger Input PNP > +3.3 VDC (24 VDC max.) to activate or
NPN > GND (<1.4 VDC) to activate (not both)
Mode Control Connect pin 5 to 1-10 VDC (10 - 100% output)
24 VDC Maximum
Strobe Duration Minimum 30 μs | Maximum ˆž
Strobe Trigger Latency

6 μs

Strobe Frequency

Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.

Duty Cycle 7% Maximum
Analog Intensity The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal.
Jumpering pin 5 to pin 1 will provide maximum intensity.
Intensity limit can be remotely adjusted via SmartVisionLink
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F)
RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C (-4° to 158° F)
RH max 80% non-condensing humidity
IP Rating  IP65
Weight 1.3 pounds | 0.6 kg
Compliances CE, IEC-62471, RoHS, UL, CSA, FCC, KCC Pending
Warranty 10 Years


OverDrive Operation Specifications

Electrical Input 24VDC +/€“5%
Input Current Charge Rate, 2.3 Amps Peak
Input Power During Strobe, 55 Watts Peak
PNP Trigger

2 mA @ 4 VDC
7 mA @ 12 VDC
13.4 @ 24 VDC

NPN Trigger 9.9 mA @ Common (0VDC)
Trigger Input PNP > +3.3 VDC (24 VDC max.) to activate or
NPN > GND (<1.4 VDC) to activate (not both)
Mode Control Connect pin 5 to GND
Strobe Duration 10 μs Minimum
7 ms Maximum
Strobe Trigger Latency

30 μs

Strobe Frequency

Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.

Duty Cycle Not Applicable
Analog Intensity The output is adjustable from 10% - 100% of the intensity limit by a 1 - 10 VDC signal.
Jumpering pin 5 to pin 1 will provide maximum intensity.
The intensity limit can be remotely adjusted via SmartVisionLink
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F)
RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C (-4° to 158° F)
RH max 80% non-condensing humidity
IP Rating  IP65
Weight 1.3 pounds | 0.6 kg
Compliances CE, IEC-62471, RoHS, UL, CSA, FCC, KCC Pending
Warranty 10 Years


Ring Light Overview:
The JWL150-MD is an OverDrive-only light source that provides external illumination for logistics. This light can be mounted to camera housings through optional mounting plates. The JWL150-MD is compatible with many common major machine vision cameras and can be directly connected and controlled through a camera€™s trigger output.

Recommended Illumination Usage: Bright Field, Direct Lighting

Wavelength Colors:

OverDrive Operation Wiring:

Continuous Operation Wiring:

Continuous Operation Wiring

Mounting:
JWL150-MD Lights feature two slots for quick and easy installation. These lights come with two T-bolts, washers, and nuts.

JWL150-MD Accessories:

JWL150-MD Power Cables
Smart Vision Link

JWL150-MD Downloads:

JWL150-MD Datasheet | Smart Vision Lights
JWL150-MD 3D STEP Model | Smart Vision Lights
JWL150-MD 2D DXF Drawing | Smart Vision Lights
JWL150-MD PDF Dimension Drawing | Smart Vision Lights


Possible Product Configurations:

JWL150-MD-WHI-N10
JWL150-MD-WHI
JWL150-MD-WHI-W30
JWL150-MD-WHI-N10-LPI
JWL150-MD-WHI-LPI
JWL150-MD-WHI-W30-LPI
JWL150-MD-470-N10
JWL150-MD-470
JWL150-MD-470-W30
JWL150-MD-470-N10-LPI
JWL150-MD-470-LPI
JWL150-MD-470-W30-LPI
JWL150-MD-625-N10
JWL150-MD-625
JWL150-MD-625-W30
JWL150-MD-625-N10-LPI
JWL150-MD-625-LIP
JWL150-MD-625-W30-LPI
JWL150-MD-850-N10
JWL150-MD-850
JWL150-MD-850-W30
JWL150-MD-850-N10-LPI
JWL150-MD-850-LPI
JWL150-MD-850-W30-LPI
