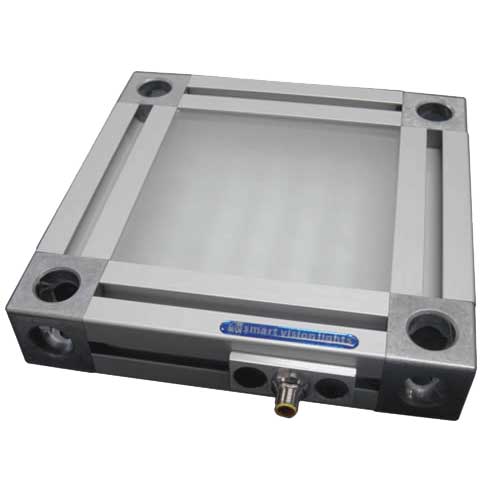

AL-150x150 Area Spot Light (6" x 6")

Smart Vision LightsSKU: AL-150x150-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$992.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

The AL Area Light Series of spot lights is designed for maximizing light output. The AL series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The AL Area Light runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and back plate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required.

Standard sizes are: 150×150, 300×150, and 300×300 – additional sizes are available upon request.

Smart Vision Lights AL-150x150 Technical Specifications

Al-150x150 Specifications

Electrical Input 24VDC +/–5%
Input Current 0.82 Amps Max
Wattage 19.68 Watts Max
On/Off Input PNP: +3VDC Or greater to Activate NPN: GND (<1VDC) to Activate
PNP Line 3.7mA @ 3VDC
6.2mA @ 5VDC
12.6mA @ 10VDC
30.4mA @ 24VDC
NPN Line 22mA @ Ground (0VDC)
Continuous Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Analog Intensity The output is adjustable from 10%–100% of brightness by a 1–10VDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection 5-pin M12 connector
Ambient Temperature -20ºC–50ºC (-4ºF–122ºF)
IP Rating IP50
Weight 2.22 kg
Compliances CE, RoHS, IEC 62471
Warranty 10 years. For complete warranty information, visit smartvisionlights.com/warranty


Wavelengths

AL-150x150 Wavelengths

Mounting

Smart Vision Lights recommends using drop-in T-nuts for mounting a AL Area Light. T-Slot size on AL extrusion is Bosch size 10 T-nut channel.

AL-150x150 Mounting

AL-150x150 Downloads

AL-150x150 Datasheet | Smart Vision Lights AL-150x150 3D STEP Model | Smart Vision Lights
AL-150x150 2D DXF Drawing | Smart Vision Lights AL-150x150 PDF Dimension Drawing | Smart Vision Lights



Part Numbers

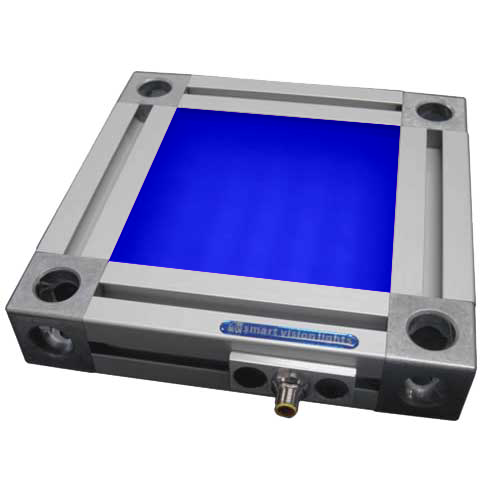

AL-150x150-470
AL-150x150-505

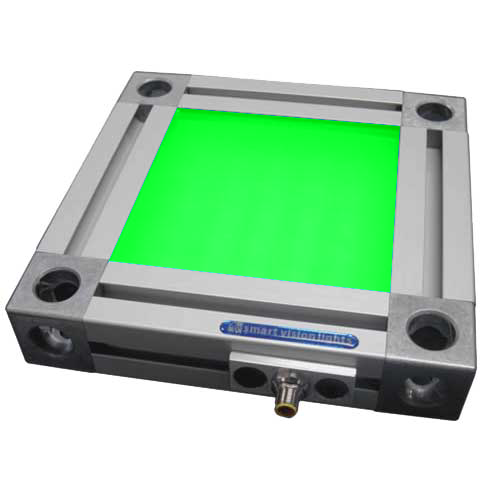

AL-150x150-530

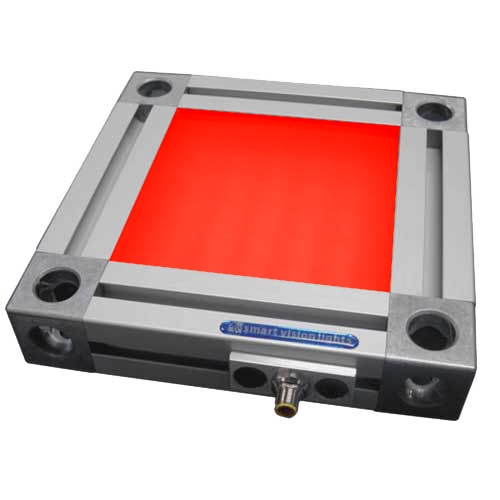

AL-150x150-625

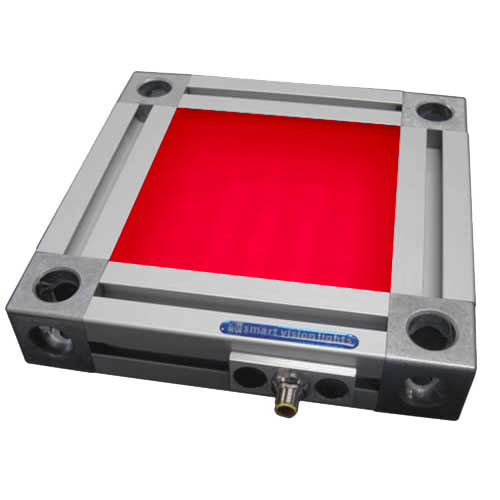

AL-150x150-850
AL-150x150-WHI
