Description

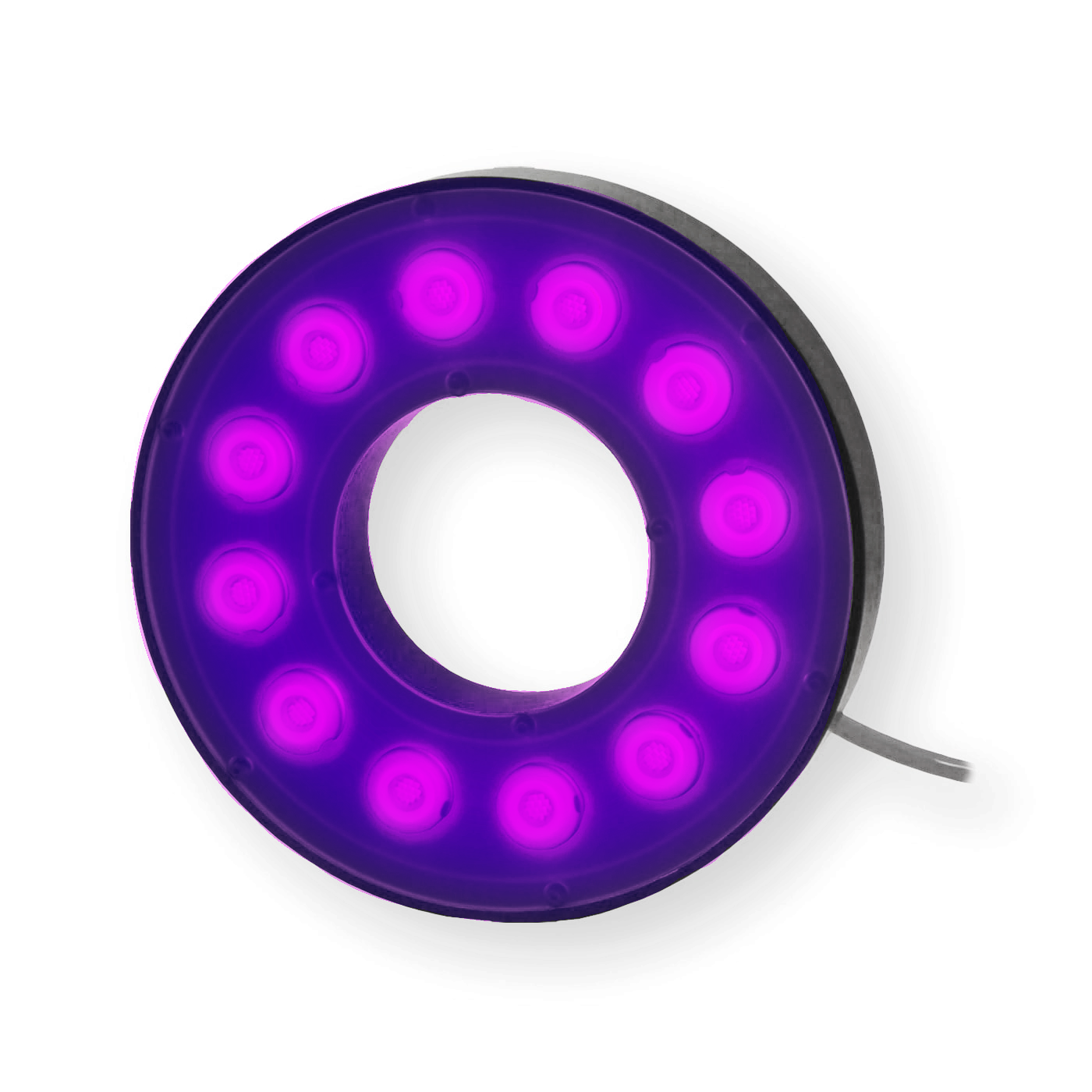

High Intensity Bright Field Ring Lights - RL Series
RL113M-405I3S Specifications:
Brand | Advanced Illumination |
Series | RL113 |
Wavelength | 405 |
Color | Violet |
Driver | I3S |
Ingress Protection | IP67 |
Lens | MEDIUM |
Inner Diameter | 66 mm |
Outer Diameter | 152.4 mm |
Illuminated Field of View | .0 mm |
Weight | 811g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The RL113 High Intensity Bright Field ring light offers a very wide array of wavelengths from UV to IR.
With intensities of up to 45.5kLux at 12� (300mm), the RL113 is particularly well suited to longer working distances.
A rugged, heavy enclosure, compliant with IP67 requirements, is well suited to demanding environments.
General Specs
Electrical Specifications | 0.54 A |
Normal Operating Temperature |
0 - 60°C |
Weight | 725.7g (25.60z) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Line 1.5 Line 2 Line 2 Line 2 |
Compliance | CE, RoHS, IEC 6247 |
IP Rating | IP67 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
