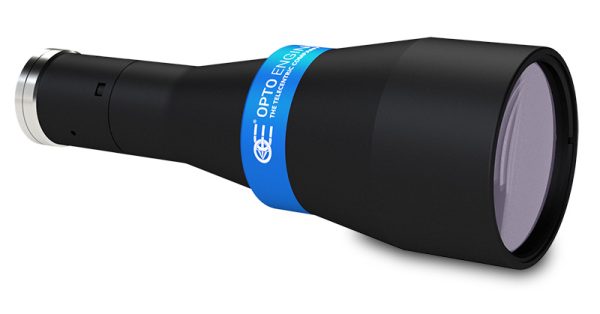

Opto Engineering TC1MHR048-C 1/1.2″ f/8 132.4 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TC1MHR048-C

Price:
Sale price$2,515.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TC1MHR048-C

TC1MHR series features high-resolution telecentric lenses designed for sensors up to 1/1.2” and is the perfect choice for advanced metrology applications. Our TC1MHR series delivers unmatched resolution thanks to the low F#, low distortion, and homogeneous image quality while offering the best performance-to-price ratio.

TC1MHR lenses feature a compact and robust design allowing easy industrial integration. Additionally, the camera phase can be easily adjusted by loosening the set screws in the eyepiece part.

TC1MHR048-C Technical Specifications:

Product Line / Series TC1MHR
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.222×
Image Circle Diameter 13.3 mm
Image Size Dimensions Not Specified
Imager Format 1/1.2″
Distortion Typical (%) < 0.08
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.08°
Telecentricity Maximum 0.10°
Working Distance 132.4 mm
Depth Of Field 8.4 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 23 μm
Mount C-Mount
Dimensions Approximate 215.9 x 75 x 75 mm
Front Diameter 75 mm
Weight 719 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/1.8″ 32.12 x 24.01 mm
FoV @ 2/3″ 38.29 x 31.94 mm
Fov @ 1.2″ 51.13 x 32.12 mm
