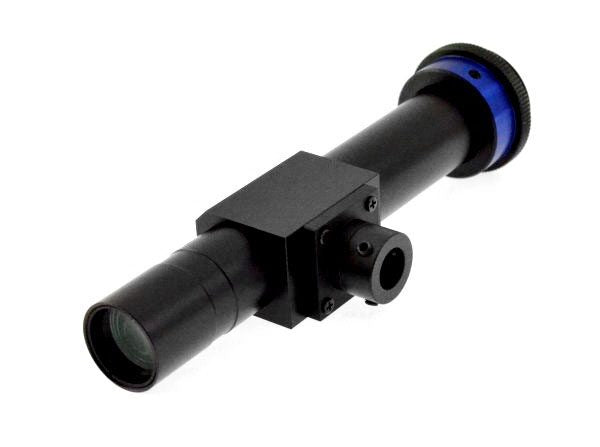

Opto Engineering RT-HR-1F-71 2/3″ f/15.6 71.1 mm C-Mount Telecentric Lens

Opto EngineeringSKU: RT-HR-1F-71

Price:
Sale price$1,437.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

Opto Engineering RT-HR-1F-71

High magnification telecentric lenses for sensors up to 2/3” with 1 to 6 times magnification. To meet all our customer's needs, we have carefully selected a collection of machine vision components from experienced and qualified suppliers to complement our product range. These products will be delivered to you with the same level of competence, quality, and technical support that you have come to know and expect from Opto Engineering®.

RT-HR-1F-71 Technical Specifications:

Product Line / Series TCCXHM
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.01
Distortion Maximum (%) Not Specified
Phase Adjustment Yes
Working Distance 71.1 mm
Depth Of Field 0.9 mm
Working ƒ/N ƒ/15.6
Resolution (Pixel Size) 10.5 μm
Mount C-Mount
Dimensions Approximate 116.4 x 18 x 18 mm
Front Diameter 18 mm
Weight 65 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 5.70 x 4.28 mm
FoV @ 1/2″ 6.40 x 4.80 mm
FoV @ 1/1.8″ 7.13 x 5.33 mm
FoV @ 2/3″ 8.50 x 7.09 mm
