SP635-34 NIR Block Absorptive Visible Shortpass Filter M34x0.5


Price:
Sale price$128.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

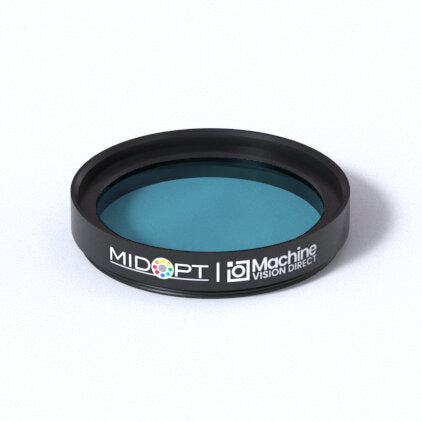

MidOpt SP635-34 NIR Block Absorptive Visible Shortpass Filter

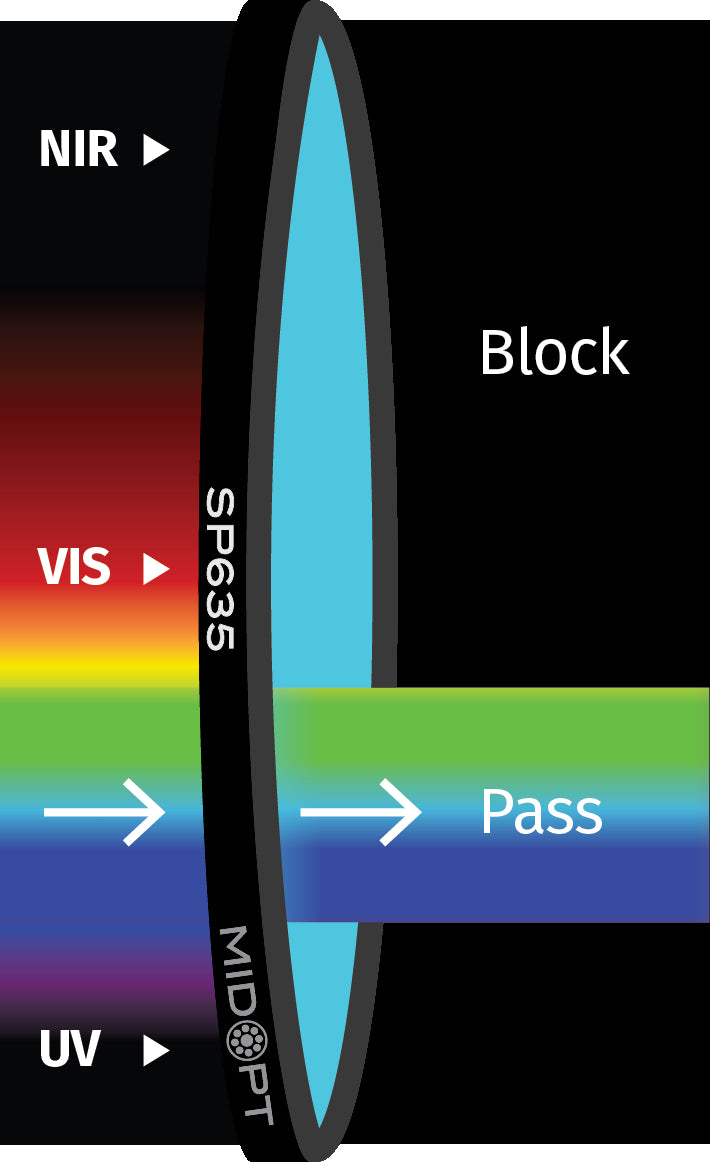

SP635 filters are commonly used inside cameras to block infrared light. When working with any camera that has been modified and its internal IR cut filter has been removed, a SP635 filter mounted on the front of the lens, when desired, can return function once again like the unmodified camera.

This is an absorptive infrared rejection filter that is also recommended for protecting a camera’s sensor from stray light emitted by lasers or other high power NIR light sources. SP635 filters are AR coated on both sides to maximize visible band transmission while offering superior out-of-band blocking.

MidOpt SP635-34 Technical Specifications:

Product Line / Series SP - Visual Pass NIR Block
Filter Model SP635
Filter Type NIR Block Absorptive Visible Shortpass
StablEDGE Yes
Useful Range 380nm - 585nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 34mm
Filter Thread M34x0.5
Outer Diameter 37.5mm
Clear Aperture 30.5mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM Not Specified

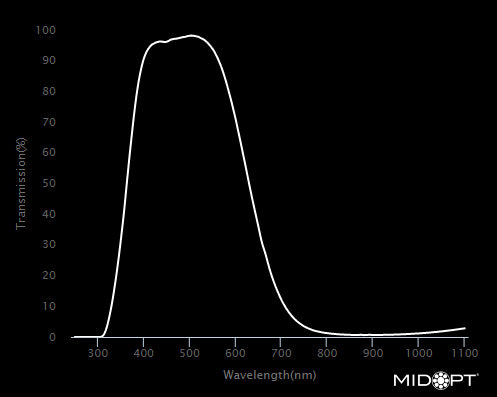

Cut-on Wavelength 50% T 635nm
Average Transmission Not Specified
Brand Midwest Optical Systems
