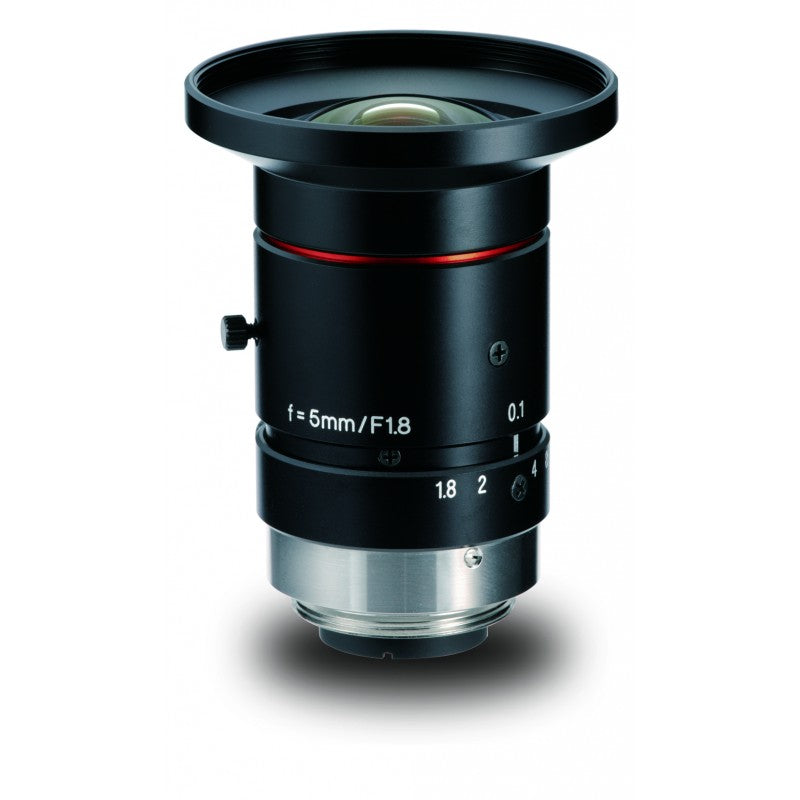

Kowa LM5JC10M 5 mm 2/3″ f/1.8 - f/16 C-Mount Fixed Focal Length Lens

Save $522.00
KowaSKU: LM5JC10M
Lead Time: Not Specified

Price:
Sale price$1,044.00 USD Regular price$1,566.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM5JC10M

The 2/3″ 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series dramatically reduces chromatic aberration at any distance and maintains a high transmission from visible to NIR.

LM5JC10M Technical Specifications:

Product Line / Series JC10M
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 5 mm
ƒ/N ƒ/1.8 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 10
Resolution (Pixel Size) 2.5 μm
Resolution (Line Pairs per mm @ Center) 200
Resolution (Line Pairs per mm @ Corner) 160
Weight 120 Grams
Mount C-Mount
Filter Thread M46-0.75
Minimum Object Distance 100 mm
Magnification 0.05×
Front Diameter 27.5 mm
Rear Effective Diameter 14.3 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 10.3 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 48 × 48 × 59.4 mm
Shooting Range at MOD 197.0(H)×147.0(V)
TV Distortion (%) −0.33
Angle of View @ 1/1.8″ 71.1° × 56.5°
Angle of View @ 1/2″ 64.9° × 51.1°
Angle of View @ 2/3″ 82.2° × 66.5°
