LQ-401CL-F JAI Camera Link Line Scan Camera 28.67 mm Format Multispectral 4096 × 1 px 18 kHz

JAISKU: JAI LQ-401CL-F
Lead Time: 4-12 Weeks

Price:
Sale price$12,000.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

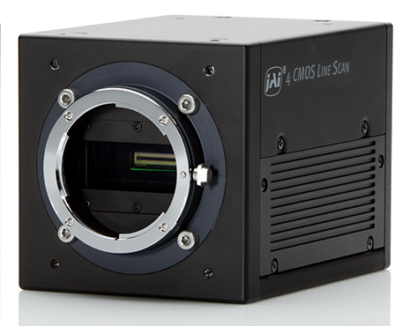

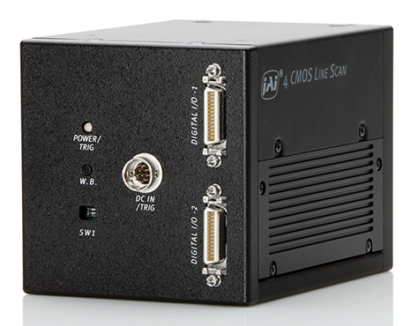

The LQ-401CL is a prism-based industrial RGB/NIR color line scan camera with four separate imagers for simultaneously capturing red, green, blue and near infrared light. Besides delivering supreme RGB color data, the NIR image makes it possible to identify an even wider set of defects on inspected objects.

Sweep Series: Monochrome and trilinear line scan cameras

JAI€™s Sweep Series includes both monochrome and trilinear color line scan cameras with line rates that are among the fastest available for their type and resolution. The Sweep SW-4000TL trilinear models deliver outstanding color line scan images for applications that don’t require the ultimate image precision provided by the Sweep+ Series.

Technical Specifications

Product Line Sweep Series
Model LQ-401CL-F
Type Line Scan
Color/Monochrome Multispectral
Light Spectrum 4-Bands R-G-B + NIR
Resolution N/A
Resolution WxH 4096 x 1 px
Frame Rate/Line Rate 18 kHz
ROI N/A
Interface Camera Link
Sensors 4xCMOS RGB/NIR
Sensor Model N/A
Optical Format 28.67 mm
Cell Size 7.0 x 7.0 µm
Shutter Global shutter
Sensor Diagonal 28.7 mm
Active Sensor Dimensions 28.7 mm
Camera Dimensions 90 x 90 x 120 mm
Weight 1050 g
Video
Lens Mount F-Mount
Power Consumption 9 Watt
Operating Temperature (Ambient) -5°C to +45°C
