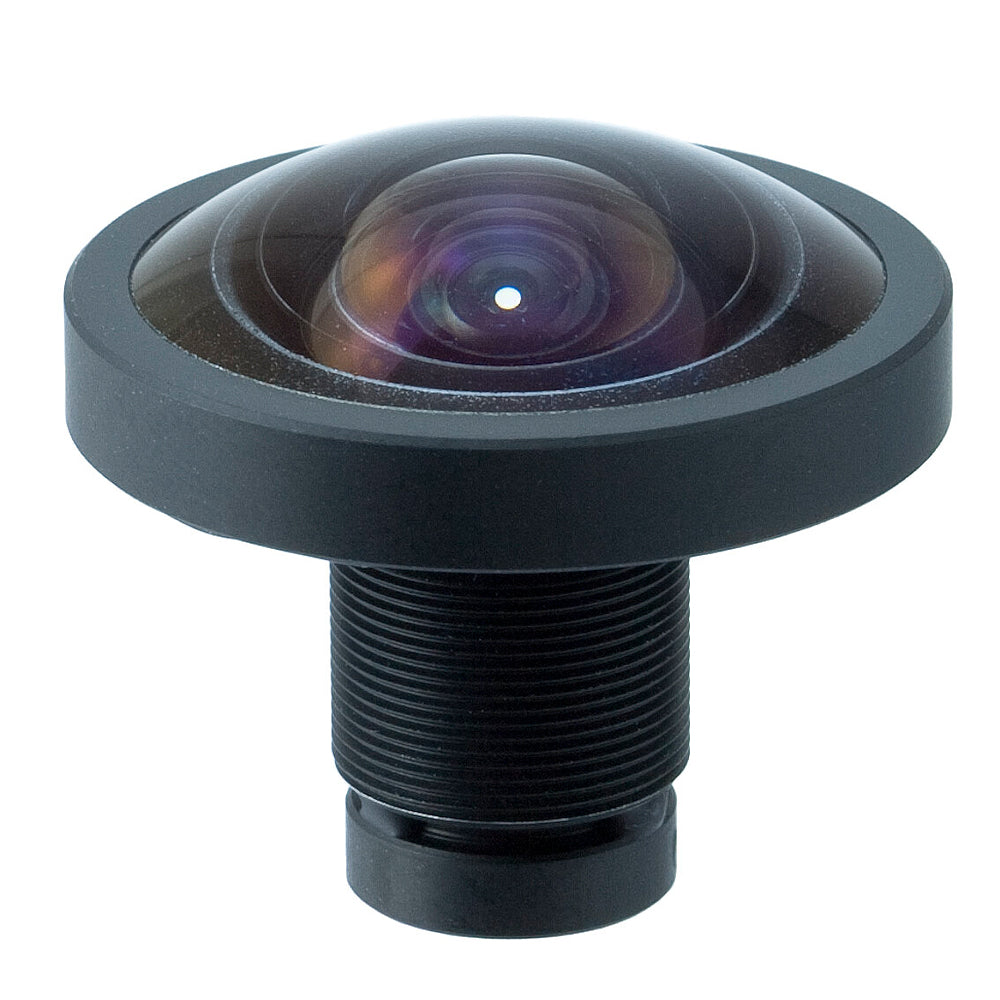

Computar E1222KRY 1.2 mm 1/1.7″ f/2.2 Fixed Focal Length, Fisheye Lens

ComputarSKU: E1222KRY

Price:
Sale price$92.90 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar E1222KRY

Supporting 5MP and 12 MP lenses across several sensor sizes, Fisheye lenses from Computar support both machine vision and security needs.

  • Over 180° ultra-wide angle fisheye lens
  • Resolution up to 12MP supported.
  • Compact fisheye lenses for IMX226. (E1628KRY and E1222KRY)
  • Panorama view fisheye lenses for IMX334. (E2328KRY)
  • Stereographic versions are available, Suitable for security applications. (E1222KRY and L1028KRW)

E1222KRY Technical Specifications:

Product Line / Series Fisheye Series
Lens Type Fixed Focal Length, Fisheye
IP Rating Not Specified
Focal Length 1.2 mm
Working ƒ/N ƒ/2.2
Image Circle Diameter 5.38 mm
Imager Format 1/1.7″
Light Spectrum Visible, NIR
Resolution (MP) 12
Resolution (Pixel Size) Not Specified
Weight 16.3
Mount M12-0.5
Filter Thread No Filter Threads
Minimum Object Distance Not Specified
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 24.4 mm
Rear Effective Diameter 5.6 mm
Focus Control None
Iris Control None
Zoom Control None
Focus Range Fixed
Back Focal Length 4.2 mm
Zoom Range Fixed
Operating Temperature Range -20 to +60 °C
Dimensions 29.2 × 29.2 × 25.7 mm
AOV @ 1/1.7″ H°×V°×D° 185.0°
AOV @ 1/4″ H°×V°×D° 139.5 × 110.3 × 164.2°
AOV @ 1/3″ H°×V°×D° 171.5 × 139.5°
