Bi385-25.5 Narrow Bandwidth Interference Near UV Bandpass Filter M25.5x0.5

Midwest Optical SystemsSKU: Bi385-25.5

Precio:
Precio de venta$248.00 USD

Gastos de envío calculados en la caja

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

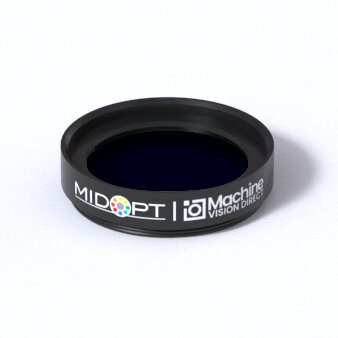

MidOpt Bi385-25.5 Narrow Bandwidth Interference Near UV Bandpass Filter

Bi385 UV narrow band interference filters can be used together with 385nm UV LED, UV fluorescent, and other UV-producing lamp-based lighting. Bi385 filter material blocks visible through NIR wavelengths while passing UV light efficiently. It can be helpful when used in conjunction with UV curing, photocatalytic air/water purification, medical and analytic instrumentation, and various types of near-UV fluorescence imaging, blocking visible light together with light from deeper UV excitation sources. The substrate material is a precision polished absorptive filter glass that blocks deep red and NIR wavelengths.

MidOpt Bi385-25.5 Technical Specifications:

Product Line / Series Bi - Narrow Bandwidth Interference
Filter Model Bi385
Filter Type Narrow Bandwidth Interference Near UV Bandpass
StablEDGE No

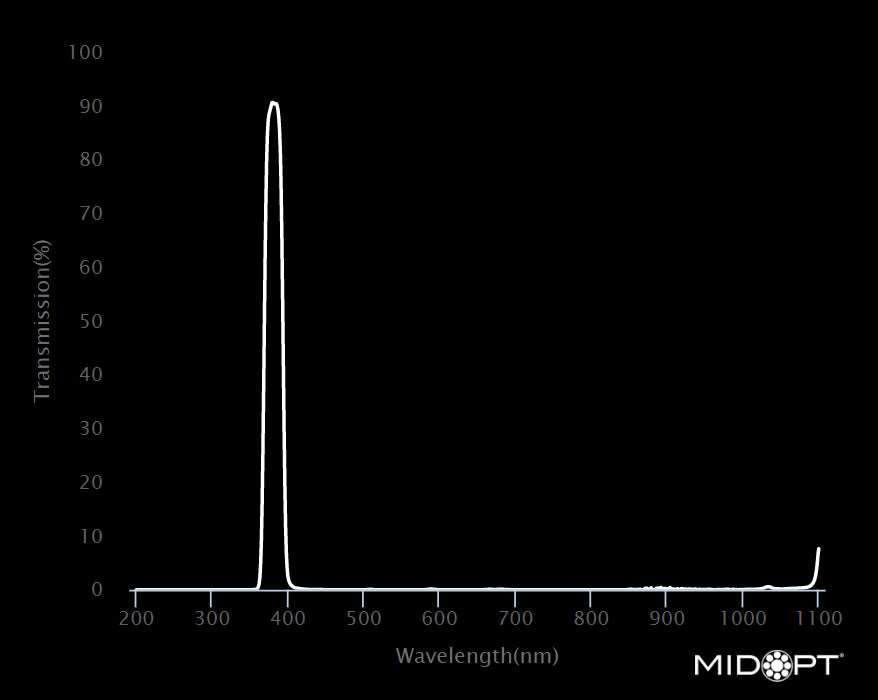

Useful Range 370nm - 390nm
Tolerance +/- 5nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 25.5mm
Filter Thread M25.5x0.5
Outer Diameter 29mm
Clear Aperture 22.5mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 25nm
Compatible LED 385nm
Average Transmission Not Specified
Brand Midwest Optical Systems
