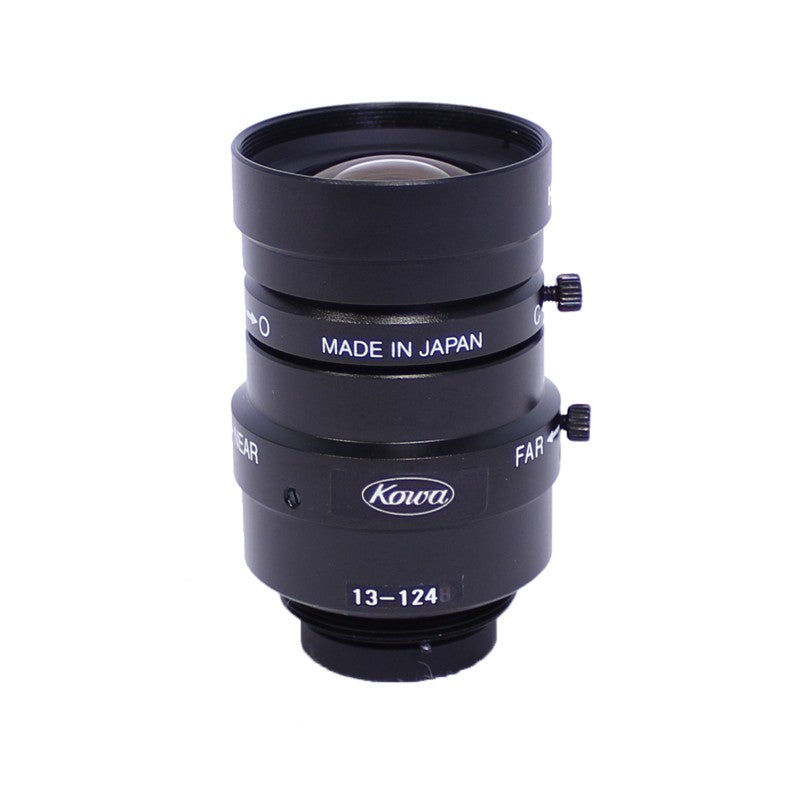

Kowa LM6NCM 6 mm 1/1.8″ f/1.2 - Close C-Mount Fixed Focal Length Lens

Ahorrar $114.00
KowaSKU: LM6NCM
Lead Time: Not Specified

Precio:
Precio de venta$210.00 USD Precio habitual$324.00 USD

Gastos de envío calculados en la caja

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

Kowa LM6NCM

With a metal body and locking screws, the Kowa 1/1.8″ LM4NCL series lenses can be used in various machine vision and robotics applications where high resolution is required.

LM6NCM Technical Specifications:

Product Line / Series NCM/JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 6 mm
ƒ/N ƒ/1.2 - Close
Image Circle Diameter 8 mm
Image Size Dimensions 6.4 mm x 4.8 mm
Imager Format 1/1.8″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 4.5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 100 Grams
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 100 mm
Front Diameter 21.1 mm
Rear Effective Diameter 15.4 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 8.2 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 34 × 34 × 45.8 mm
Shooting Range at MOD 122.2(H)×91.0(V)
TV Distortion (%) −0.2
Angle of View @ 1/3″ 43.5° × 33.2°
Angle of View @ 1/2″ 56.2° × 43.5°
