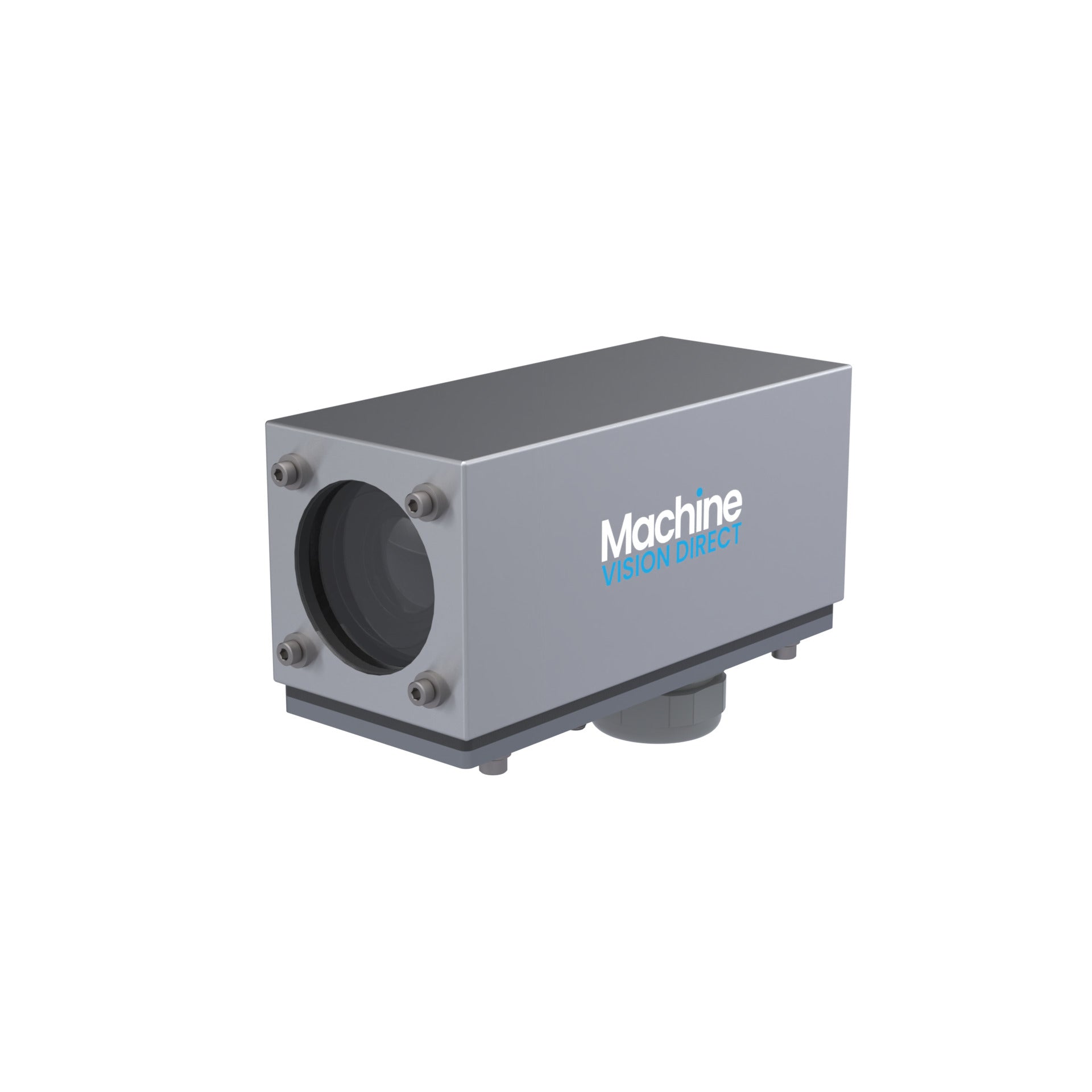

APG 38D-DW | PG36 Enclosure Burnished Viewport

APG VisionSKU: 38D-DW
Lead Time: 5-6 Weeks

Precio:
Precio de venta$1,418.00 USD

Gastos de envío calculados en la caja

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

38D SERIES 8.75IN SEALED ENCLOSURE, 304 STAINLESS STEEL BODY, ANODIZED ALUMINUM BASE, ACRYLIC VP, EPDM FOAM GASKET, PG36 CABLE GLAND, 20.3mm O.C. SLOTTED ARM

APG Vision 38D-DW

38D-DW Enclosure Technical Specifications:

Product Line / Series 38D
Class Basic Protection
Brand APG Vision
Body Material Stainless Steel 304
Body Finish Burnished
Viewport Material Clear Flowcoat Acrylic
Viewport Finish ABR2
Gasket Material EPDM Foam
Washdown No
Corrosive Environment No
Food Grade No
Pan & Tilt Capable Yes
Mounting OC Arm 20.3mm
IP Rating IP64
NEMA Enclosure Rating NEMA 12
Cable Gland PG36
Barrel Length 8.7″
Length 222.3 mm
Width 96.5 mm
Height 144.6 mm
Weight 1885 Grams
