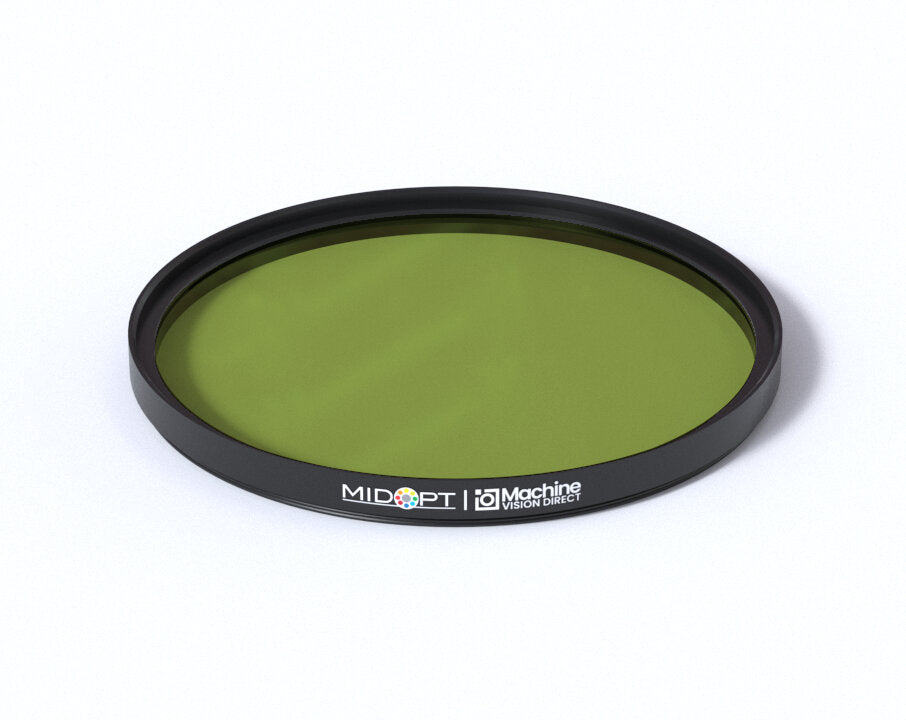

TB550/660/850-82 Green Red NIR Triple Bandpass Filter M82x0.75

Midwest Optical SystemsSKU: TB550/660/850-82

Price:
Sale price$1,223.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MidOpt TB550/660/850-82 Green Red NIR Triple Bandpass Filter

MidOpt triple bandpass filters are primarily designed for aerial agriculture mapping and surveying purposes. Green-Red-Near IR data is used for applications where Chlorophyll Vegetation Index (CVI) and other vegetative index monitoring is preferred. TB550/660/850 filters, when mounted in converted consumer cameras, can help in achieving a more affordable, lightweight alternative to systems using three or more cameras or sensors.

Some of the formulas that are employed in these cases include:
Chlorophyll Vegetation Index
CVI = (NIR * Red) / (Green ^ 2)
Normalized Green
NG = Green / (NIR + Red + Green)
Normalized Near Infrared
NNIR = NIR / (NIR + Red + Green)
Normalized Red
NR = Red / (NIR + Red + Green)
Triangular Vegetation Index
TVI =0.5 * (120 * (NIR – Green) – 200 * (Red – Green))

MidOpt TB550/660/850-82 Technical Specifications:

Filter Model TB550/660/850
Filter Type Green Red NIR Triple Bandpass
StablEDGE No
Useful Range 543nm - 558nm / 653nm - 668nm / 835nm - 865nm
Tolerance +/- 10nm
Peak Transmission ≥85%
Surface Quality 40/20
Filter Size 82mm
Filter Thread M82x0.75
Outer Diameter 89mm
Clear Aperture 80.8mm
Overall Thickness 6.5mm
Exposed Thickness 4.5mm
FWHM 20nm/20nm/45nm
Average Transmission Not Specified
Brand Midwest Optical Systems
