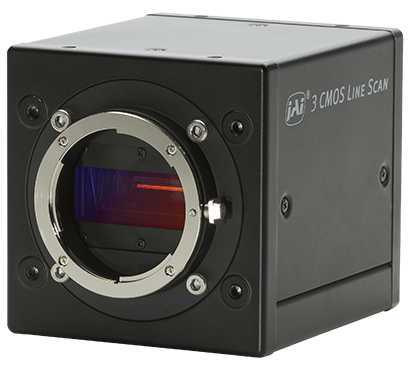

The SW-8000T-10GE is an 8K prism-based industrial RGB color line scan camera with 8,192 pixels per line and a fast, 49 kHz line rate thanks to a high speed 10 GigE interface. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.
Sweep+ Series: 3 and 4-sensor color line scan cameras
The Sweep+ Series comprises 3-sensor R-G-B and 4-sensor R-G-B-NIR or R-G-B-SWIR line scan cameras for industrial machine vision applications. They features state-off-the-art prism technology providing the best possible performance, precision, and versatility for line scan imaging in continuous production flows.
Technical Specifications
Product Line | Sweep+ Series |
Model | SW-8000T-10GE-M52 |
Type | Line Scan |
Color/Monochrome | Color |
Light Spectrum | Visible |
Resolution | N/A |
Resolution WxH | Not Found |
Frame Rate/Line Rate | 49 kHz |
ROI | Yes |
Interface | 10 Gbps GigE Vision |
Sensors | 3xCMOS RGB |
Sensor Model | Custom |
Optical Format | 30.72 mm |
Cell Size | 3.75 x 5.78 µm |
Shutter | Global shutter |
Sensor Diagonal | 30.8 mm |
Active Sensor Dimensions | 30.8 mm |
Camera Dimensions | 90 x 90 x 90 mm |
Weight | 840 g |
Video | |
Lens Mount | M52-Mount |
Power Consumption | 13.7 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
