Description
This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

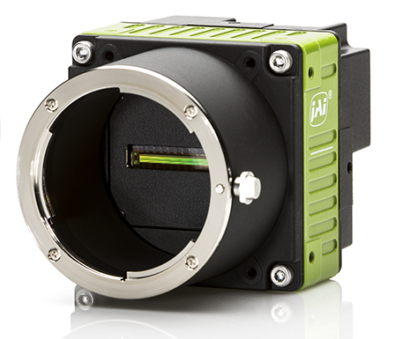

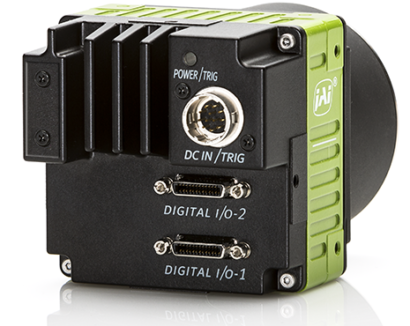

The SW-8000M-PMCL is a high speed monochrome line scan camera featuring a custom-designed 8K monochrome line sensor capable of running at up to 100,000 lines per second. The CMOS imager features 3.75-micron by 5.78-micron rectangular pixels offering excellent sensitivity for high-speed applications.
Sweep Series: Monochrome and trilinear line scan cameras
JAI€™s Sweep Series includes both monochrome and trilinear color line scan cameras with line rates that are among the fastest available for their type and resolution. The Sweep SW-4000TL trilinear models deliver outstanding color line scan images for applications that don’t require the ultimate image precision provided by the Sweep+ Series.
Technical Specifications
Product Line | Sweep Series |
Model | SW-8000M-PMCL-M42A |
Type | Line Scan |
Color/Monochrome | Monochrome |
Light Spectrum | Visible |
Resolution | N/A |
Resolution WxH | 8192 x 1 px |
Frame Rate/Line Rate | 100 kHz |
ROI | N/A |
Interface | Mini Camera Link (PoCL) |
Sensors | 1xCMOS |
Sensor Model | Custom |
Optical Format | 30.72 mm |
Cell Size | 3.75 x 5.78 µm |
Shutter | Global shutter |
Sensor Diagonal | 30.8 mm |
Active Sensor Dimensions | 30.8 mm |
Camera Dimensions | 62 x 62 x 84 mm |
Weight | 320 g |
Video | |
Lens Mount | M42A-Mount |
Power Consumption | 5.22 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
