FD21616 BackLit Diffuse Light, 16 in x 16 in

Advanced IlluminationSKU: FD2-161647024
Lead Time: 2 Weeks

Color: Blue (470nm)
Driver: 24 Volt
Price:
Sale price$6,415.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

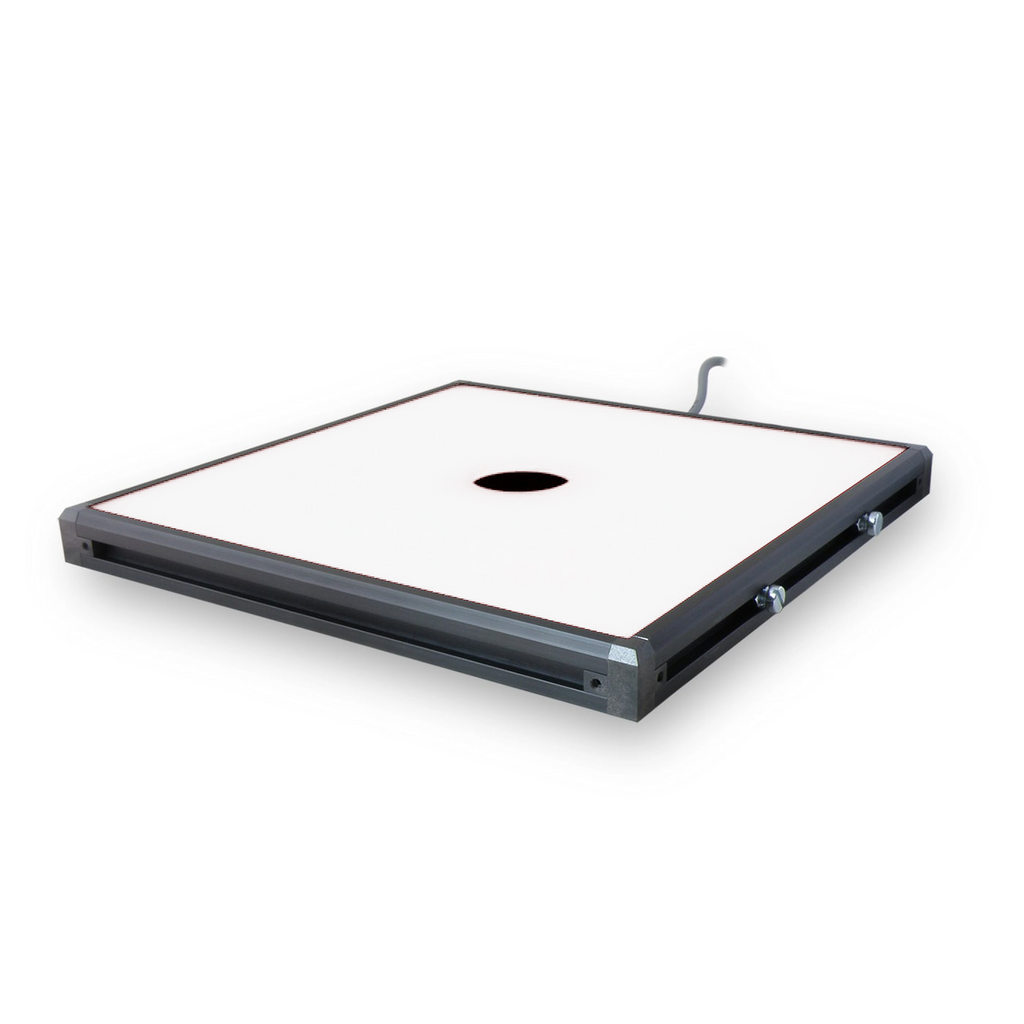

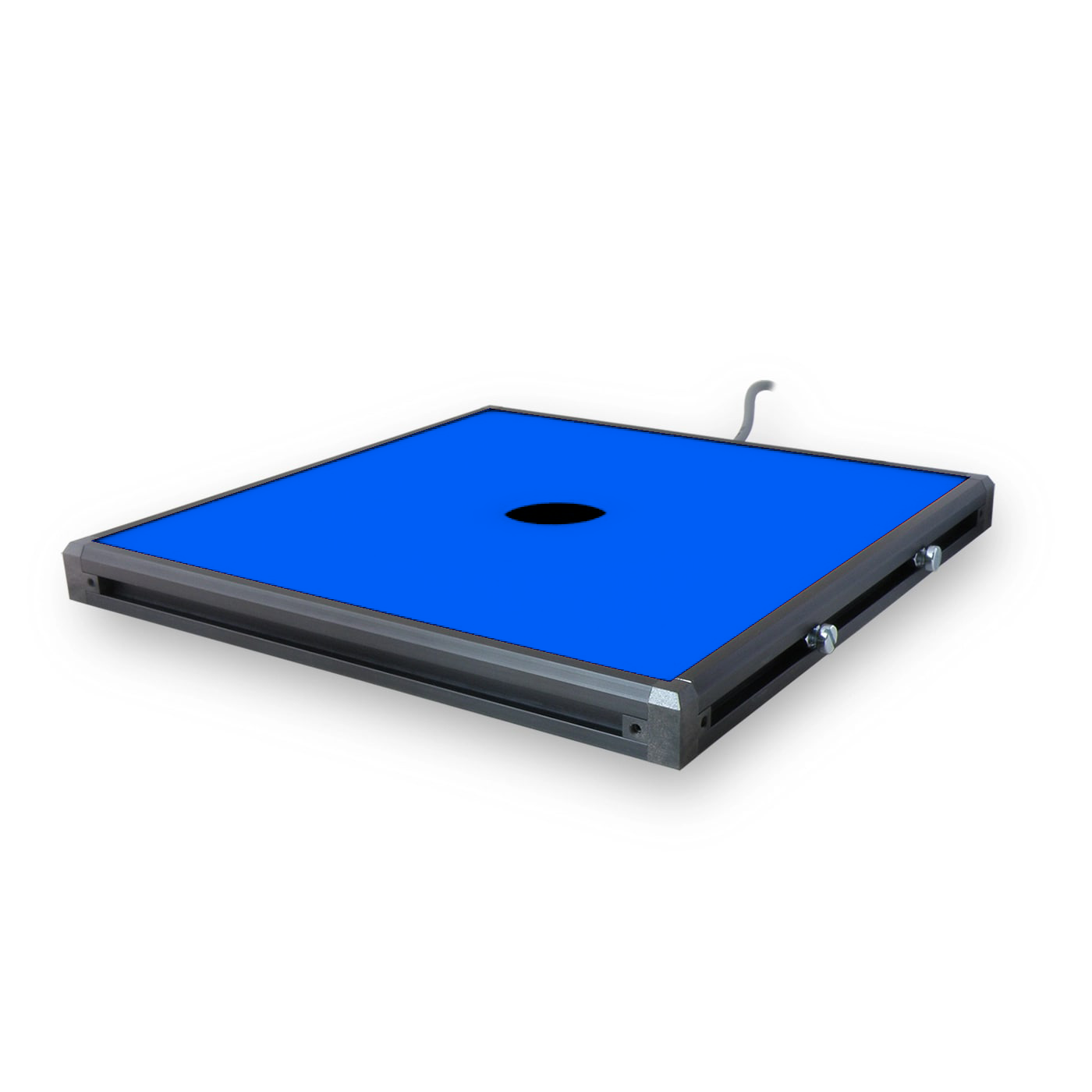

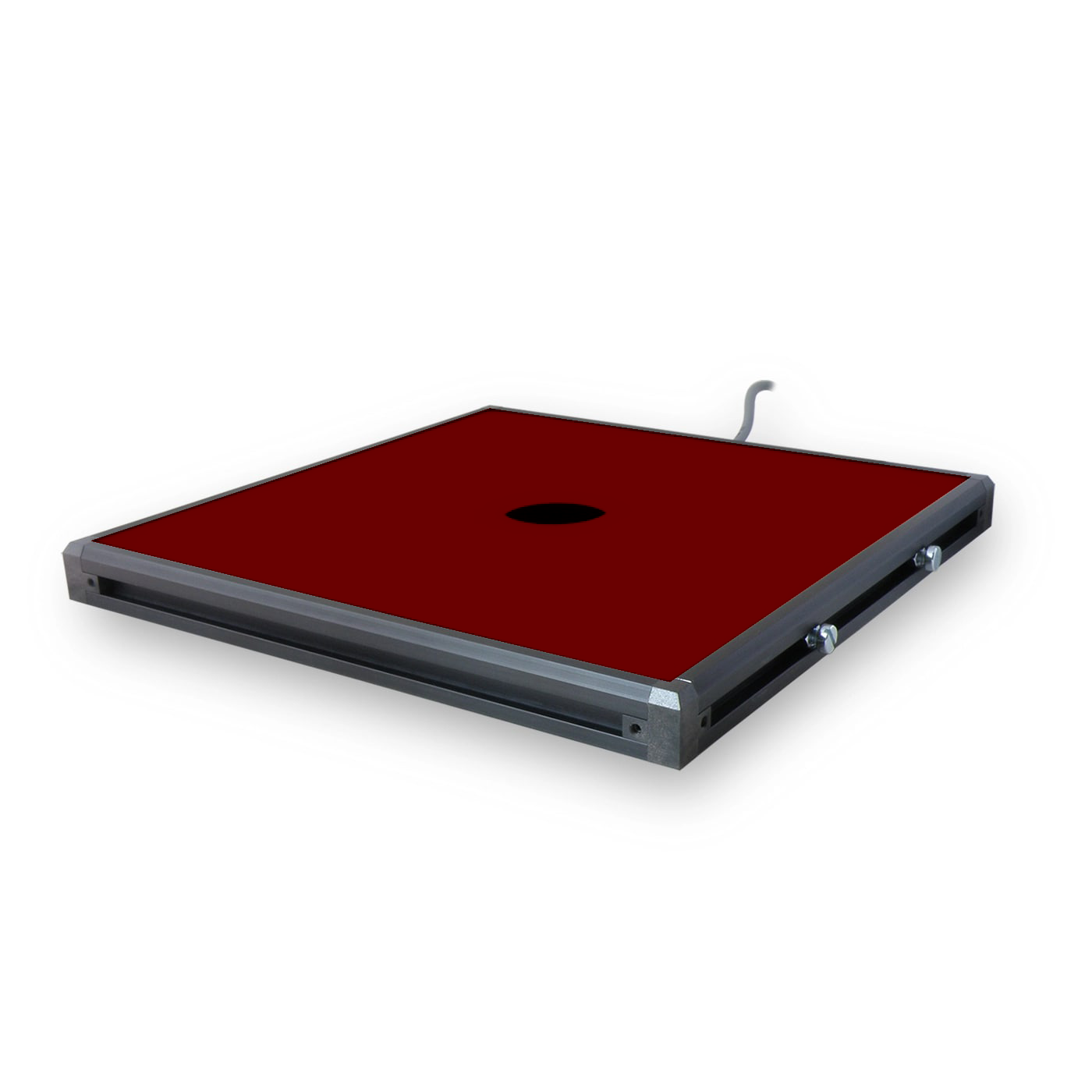

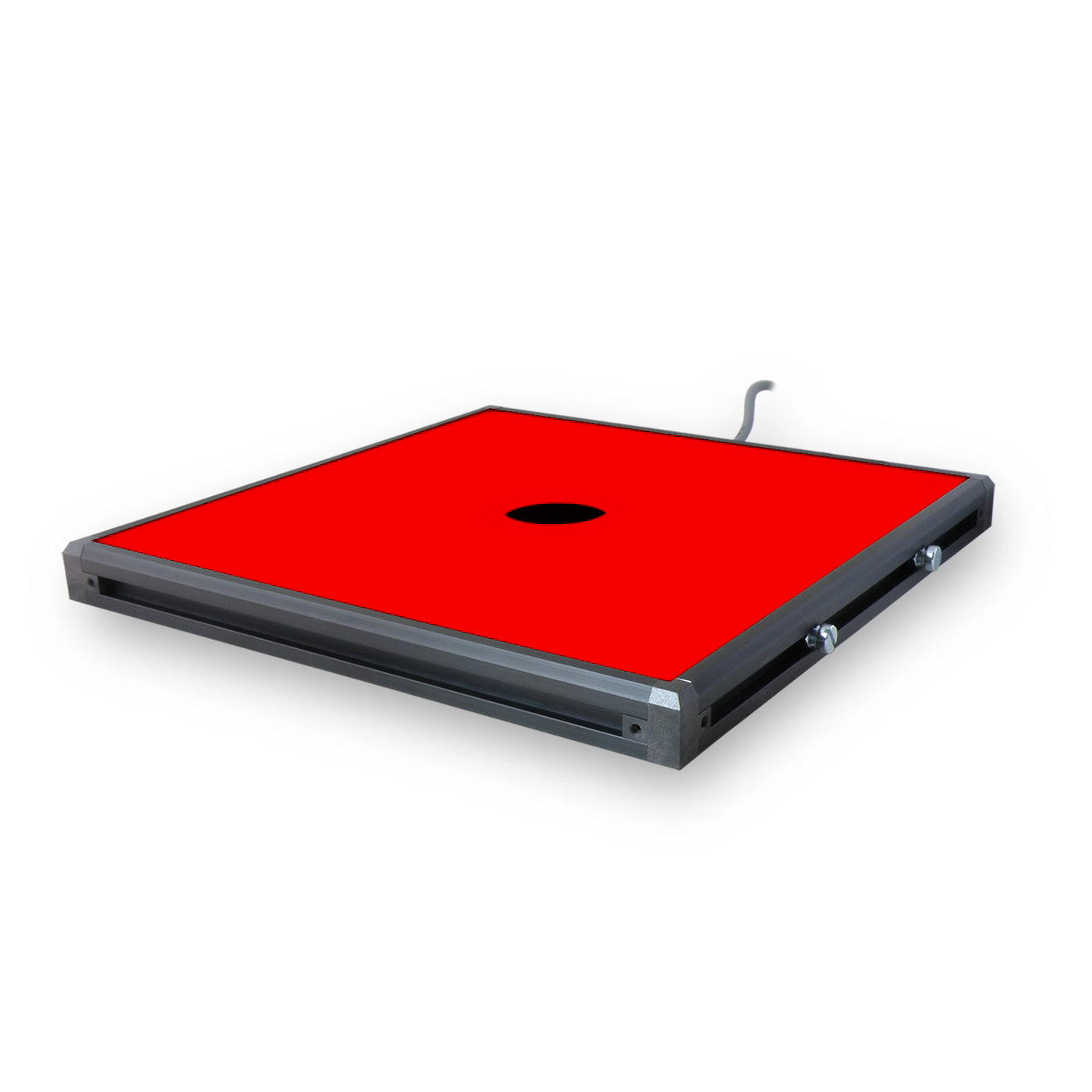

Back-Lit Diffuse Lights - FD2 Series

FD21616 Specifications:

Brand Advanced Illumination
Series FD2
Wavelength 470nm, 530nm, 625nm, 850nm, White
Color Blue, Green, Red, IR, White
Driver 24V, I3S
Ingress Protection Not Rated
Length 16 in
Width 16 in
Weight 477g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The FD2 Series provides a highly diffuse and high-intensity source of illumination, primarily used for inspecting highly specular surfaces.

General Specs

Electrical Specifications 0.015A per sq. inch
Normal Operating Temperature

0 - 60°C

Weight 12" x 12" Unit - 2167g (76.44oz) (4.78lbs)
Standard Cable Information 2m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 625, White
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours

Mechanical Specs

Optical Specs

Electrical Specs

Control Specs

Part Number Key
