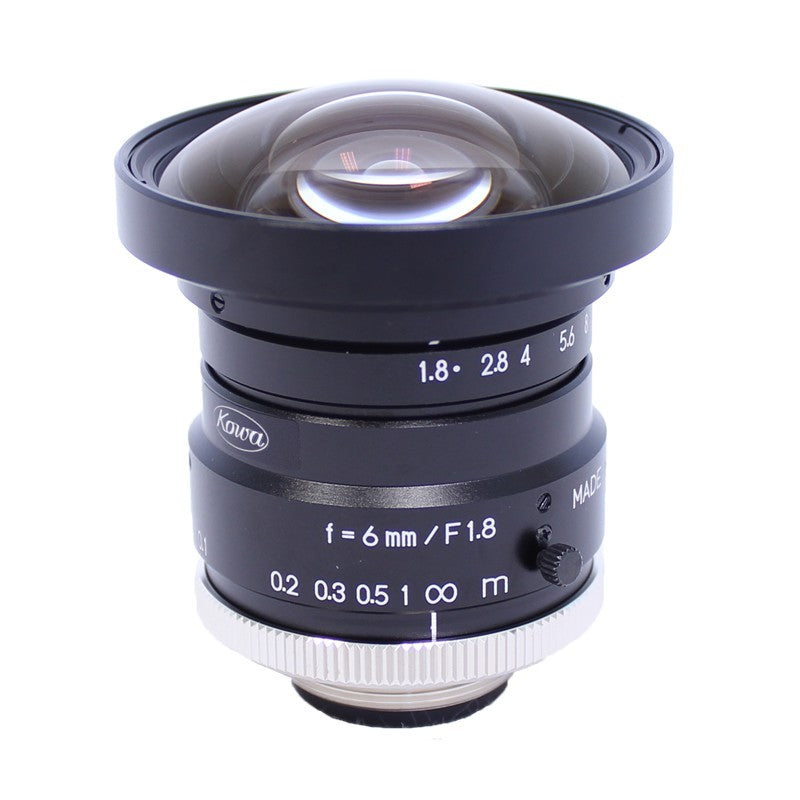

Kowa LM6HC 6 mm 1″ f/1.8 - f/11 C-Mount Fixed Focal Length Lens

Save $243.30
KowaSKU: LM6HC
Lead Time: Not Specified

Price:
Sale price$486.70 USD Regular price$730.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM6HC

Kowa's HC lenses are designed for 1″ megapixel cameras. They have low distortion, excellent light transmission, and can be used with smaller format size cameras.

LM6HC Technical Specifications:

Product Line / Series HC
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 6 mm
ƒ/N ƒ/1.8 - ƒ/11
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 215 Grams
Mount C-Mount
Filter Thread No Filter Threads
Minimum Object Distance 100 mm
Magnification 0.05×
Front Diameter 46 mm
Rear Effective Diameter 16.8 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 11.1 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 54 × 54 × 56.2 mm
Shooting Range at MOD 267.4(H)×196.3(V)
TV Distortion (%) −0.2
Angle of View @ 1/1.8″ 62.6° × 48.2°
Angle of View @ 2/3″ 74.1° × 58.0°
Angle of View @ 1″ 96.8° × 79.4°
