Kowa LM25HC 25 mm 1″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $110.70
KowaSKU: LM25HC
Lead Time: Not Specified

Price:
Sale price$221.30 USD Regular price$332.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

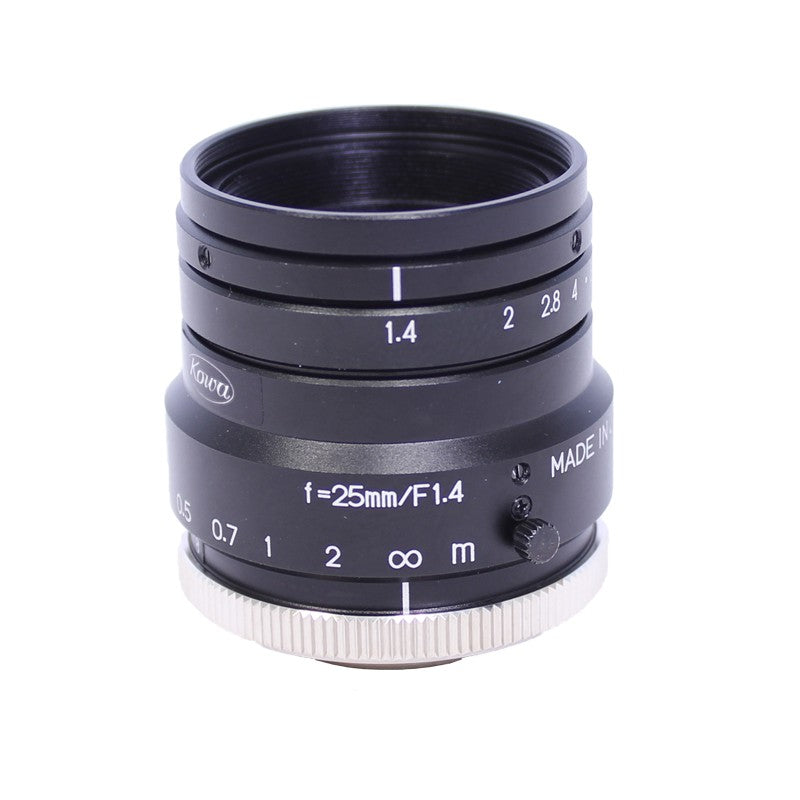

Kowa LM25HC

Kowa's HC lenses are designed for 1″ megapixel cameras. They have low distortion, excellent light transmission, and can be used with smaller format size cameras.

LM25HC Technical Specifications:

Product Line / Series HC
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 25 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 135 Grams
Mount C-Mount
Filter Thread M35.5-0.5
Minimum Object Distance 300 mm
Magnification 0.08×
Minimum Object Distance with 1mm Ring 200 mm
Minimum Object Distance with 5mm Ring 83 mm
Magnification with 1mm Ring 0.12×
Magnification with 5mm Ring 0.28×
Front Diameter 21 mm
Rear Effective Diameter 19.4 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.3 m - ∞
Back Focal Length 16.5 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 43 × 43 × 43 mm
Shooting Range at MOD 160.7(H)×119.2(V)
TV Distortion (%) −1.0
Angle of View @ 1/1.8″ 16.5° × 12.4°
Angle of View @ 2/3″ 20.2° × 15.1°
Angle of View @ 1″ 29.3° × 22.0°
