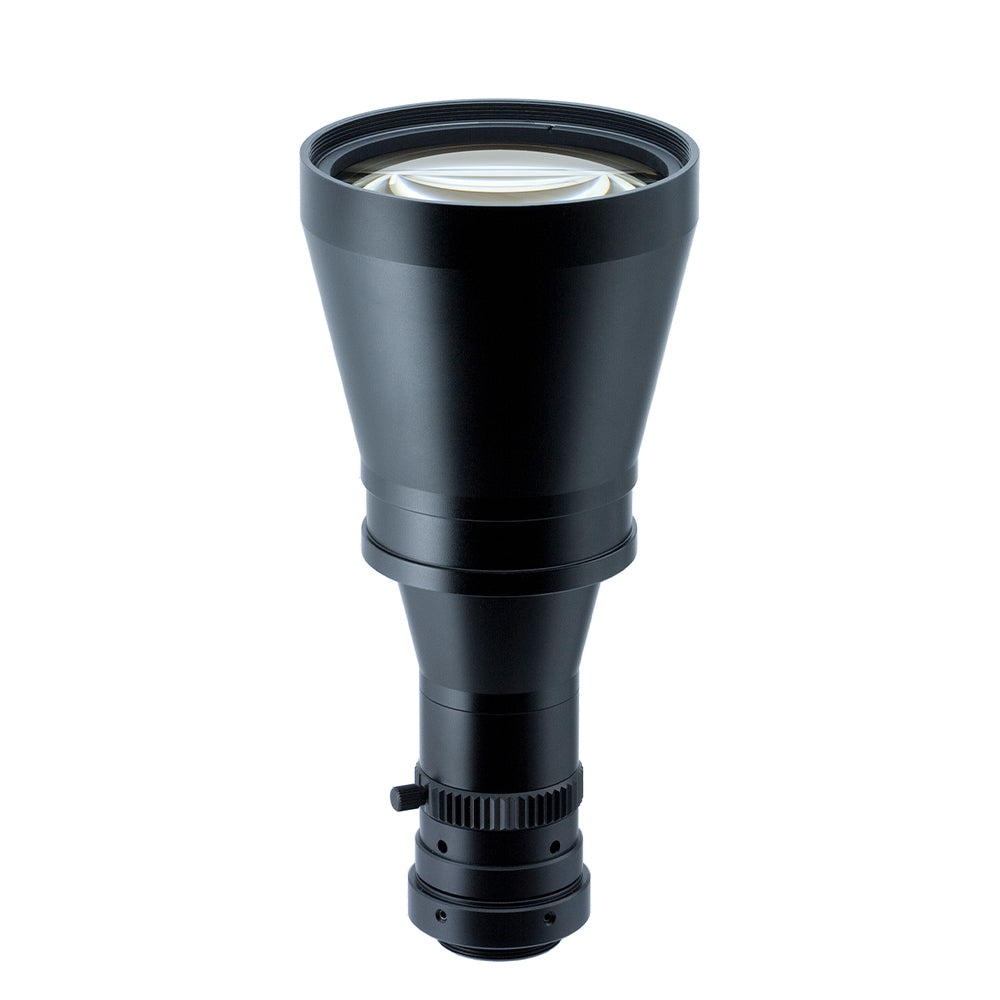

Computar TEC-V0345165MPY-WI 1.1″ f/5 - f/32.4 Fixed Focal Length, Telecentric Lens

ComputarSKU: TEC-V0345165MPY-WI

Price:
Sale price$1,984.30 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar TEC-V0345165MPY-WI

TEC-V Series Telecentric lenses from Computar offer high-resolution images with the lowest possible geometrical distortion.

  • Compatible with 5MP sensors on 1″ cameras
  • Versatile lens lineup designed for 65mm and 110mm WD (working distance)
  • 0.5x and 1.0x magnification options available
  • Low 1V distortion correction up to the furthest corner (0.01 - 0.02s%)

TEC-V0345165MPY-WI Technical Specifications:

Product Line / Series TEC-V Series
Lens Type Fixed Focal Length, Telecentric
IP Rating Not Rated
Focal Length Telecentric
Working ƒ/N ƒ/5 - ƒ/32.4
Image Circle Diameter 17.6 mm
Imager Format 1.1″
Light Spectrum Visible
Resolution (MP) 12
Resolution (Pixel Size) 9.7 μm
Weight 380
Mount C-Mount
Filter Thread M72-0.75
Minimum Object Distance 165.2 mm
Magnification 0.345×
Depth Of Field 6.63 mm
Front Diameter Not Specified
Rear Effective Diameter Not Specified
Focus Control None
Iris Control Manual
Zoom Control None
Focus Range Not Specified
Back Focal Length 28.375 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 75 × 75 × 160.8 mm
TV Distortion (%) -0.024
