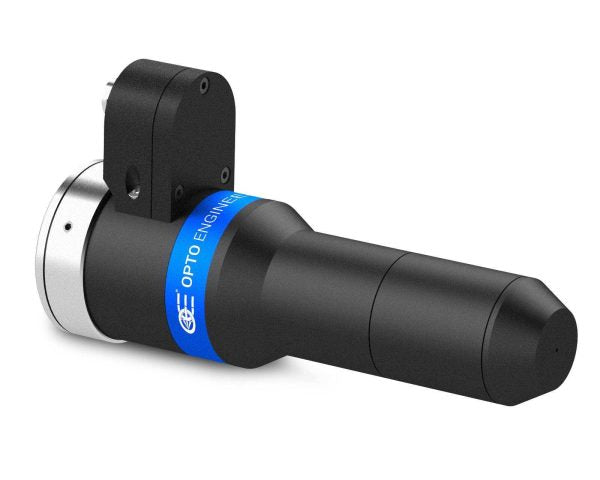

Opto Engineering PCHI3M-AF
PCHI optics have been developed to inspect holes, cavities, and containers quickly. Unlike standard optics or so-called “pinhole lenses,” which can only image flat fields of view, hole inspection optics are specifically designed to image both the bottom of a hole and its vertical walls.
Thanks to the large angle of view (>82°) and innovative optical design, these lenses are compatible with a wide range of object diameters and thicknesses. Hole inspection optics are the perfect solution to inspect various object shapes such as cylinders, cones, holes, bottles, or threaded objects.
New and improved models are now available, providing the ease of use of an upgraded focusing mechanism (PCHI MF) and the flexibility of an immediate focusing thanks to the integration of Optotune liquid lens technology into the lens optical design (PCHI AF).
PCHI3M-AF Technical Specifications:
Product Line / Series | PCHI |
Brand | Opto Engineering |
Lens Type | Hole Inspection |
Connector | HR10A-7R-6PB |
IP Rating | Not Specified |
Image Circle Diameter | 10 mm |
Image Size Dimensions | Not Specified |
Imager Format | 1.1″ |
Distortion Maximum (%) | Not Specified |
Phase Adjustment | Not Applicable |
Working Distance @ FoV Minimum | 14 mm |
Working Distance @ FoV Maximum | 71 mm |
Working ƒ/N | ƒ/13 |
Mount | C-Mount |
Dimensions Approximate | 40 x 122.4 x 122.4 mm |
Front Diameter | Not Specified |
Weight | 282 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | 20-85 Non Condensing |
Installation Location | Indoor Use Only |
Temperature Sensor | Yes |
Liquid Lens Model | EL-3-10 |
Response Time | 1 Millisecond |
Setting Time | 4 Milliseconds |
Focal Power Mode | Yes |
Current Range | -120 to +120 mA |
Lifecycles (10%-90% Sinusoidal) | >1,000,000,000 |
AoV | 82 ° |
FoV Minimum | 10 |
FoV Maximum | 120 |
Focus Control | Liquid Lens |
