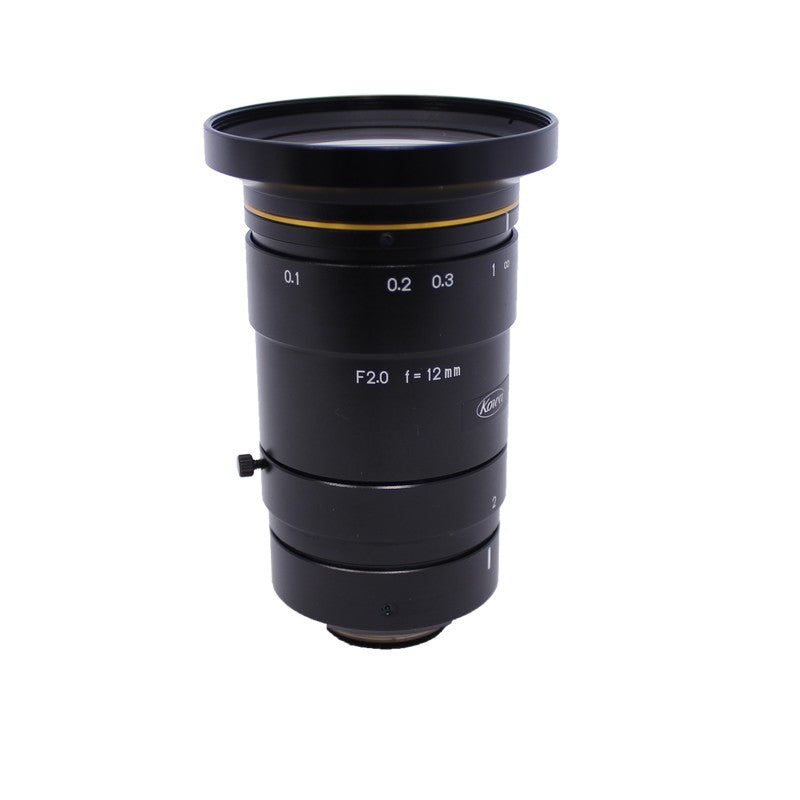

Kowa LM12XC 12 mm 4/3″ f/2 - f/22 C-Mount Fixed Focal Length Lens

Save $553.30
KowaSKU: LM12XC
Lead Time: Not Specified

Price:
Sale price$1,106.70 USD Regular price$1,660.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM12XC

The 2/3″ 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series dramatically reduces chromatic aberration at any distance and maintains a high transmission from visible to NIR.

LM12XC Technical Specifications:

Product Line / Series XC
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 12 mm
ƒ/N ƒ/2 - ƒ/22
Image Circle Diameter 23 mm
Image Size Dimensions 18.4 mm x 13.8 mm
Imager Format 4/3″
Light Spectrum Visible
Resolution (MP) 20
Resolution (Pixel Size) 3 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 80
Weight 270 Grams
Mount C-Mount
Filter Thread M55-0.75
Minimum Object Distance 100 mm
Magnification 0.1×
Minimum Object Distance with 1mm Ring 48 mm
Magnification with 1mm Ring 0.19×
Front Diameter 44.8 mm
Rear Effective Diameter 16 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 13 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 57 × 57 × 85 mm
Shooting Range at MOD 181.5(H)×135.5(V)
TV Distortion (%) 0.59
Angle of View @ 2/3″ 39.8° × 30.2°
Angle of View @ 1″ 55.9° × 43.1°
Angle of View @ 1.1″ 60.6° × 47.1°
Angle of View @ 4/3″ 74.9° × 59.6°
