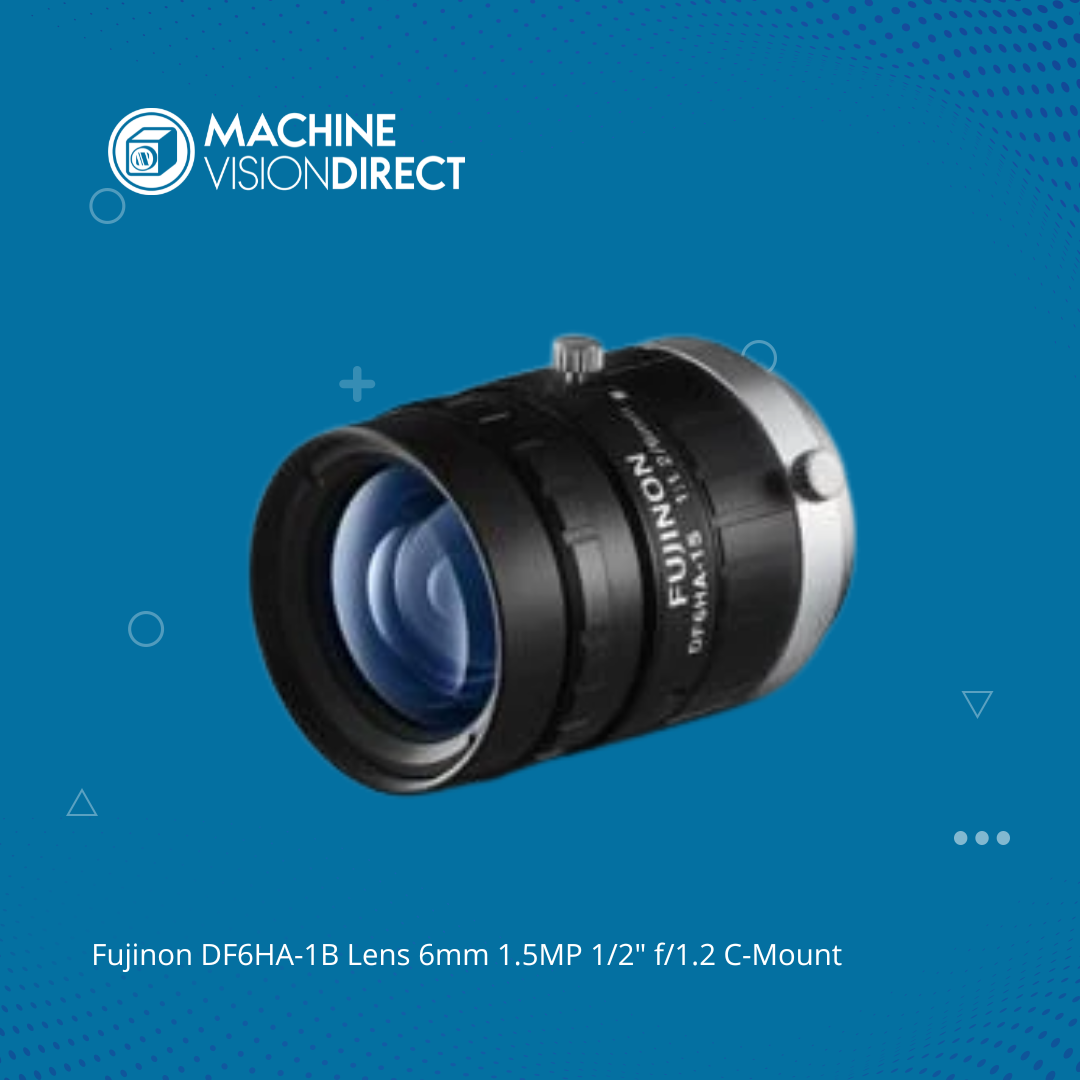

Fujinon's DF6HA-1B 1/2" 6.15mm 1.5MP Machine Vision Lens is a C-mount lens for 1/2" and smaller sensors, and it is designed specifically for machine vision applications. This lens is designed for producing images on sensors up to 1.5MP, and features locking manual focus and iris rings for use in tough environments such as robot mounted applications. The lens can focus from distances down to 100mm (~4")
Fujinon DF6HA-1B Series Lens Features
- Supports Sensor Sizes up to 1.5 Megapixels
- Supports Imager Formats up to and including 1/2"
- Focal length: 6mm (Actual 6.15mm)
- Aperture: F1.2 to F16
- Filter thread: M27 x 0.5
- Dimensions (D x L): 29.5 x 36.8
- Weight: 55g
- Camera mount: C-mount
- Manual Adjustable Aperture and Focus
- Low f-number of f/1.2
- Vibration Resistant and Impact Resistant Design
Optimal Design for Compact Form Factor Cameras
Despite being 1.5MP Resolution lenses, the DF/HF-HA-1B series lenses are excellent for use with compact form factor machine vision cameras.
6mm/9mm/12.5mm/16mm/25mm/35mm/50mm：φ29.5mm
75mm：φ31.5mm
Locking Holes
FUJINON DF-HA-1S and HF-HA-1S series lenses come with locking holes for the iris as well as for the focus. They are located on the lens barrels to provide additional flexibility. Included thumbscrews provide an easy way to lock the focus and iris in place. Note: Included thumb screws can be replaced by set screws to prevent tampering.
