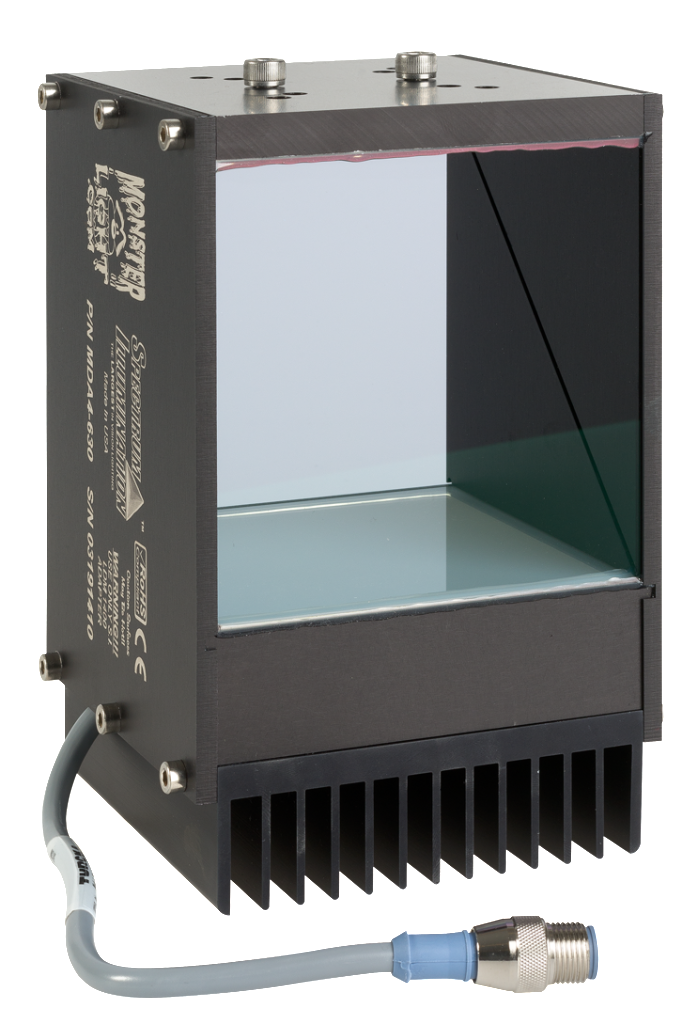

MDA4 – 4" Diffused Axial Light

Spectrum IlluminationSKU: MDA4-WHI

Color: White
Precio:
Precio de venta$2,250.00 USD

Gastos de envío calculados en la caja

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

MDA4 – 4" Diffused Axial Light

Features:

•External driver/controller included
•High speed strobe technology
•High power LED’s (24 VDC)
•DIN rail mount driver/controller
•M12 connector for quick disconnect
•Available in 8 colors and Infrared
•Available in 2 sizes
•10 Year Warranty* – 100,000 hours

Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the fixture directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

Spectrum Illumination MDA4 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) diffusers or cable: Please select options from the tables below.

Example Part Number:
MDA4-630 / A / MC15



Base Part Number Cable Type Driver Type
MDA4-630 MC15 A

Example shown: 4" x 4 " Diffused Axial Light with red LEDs, analog driver and 15 meter cable.



Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15 meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM1400 LDM1400 STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
