Descripción

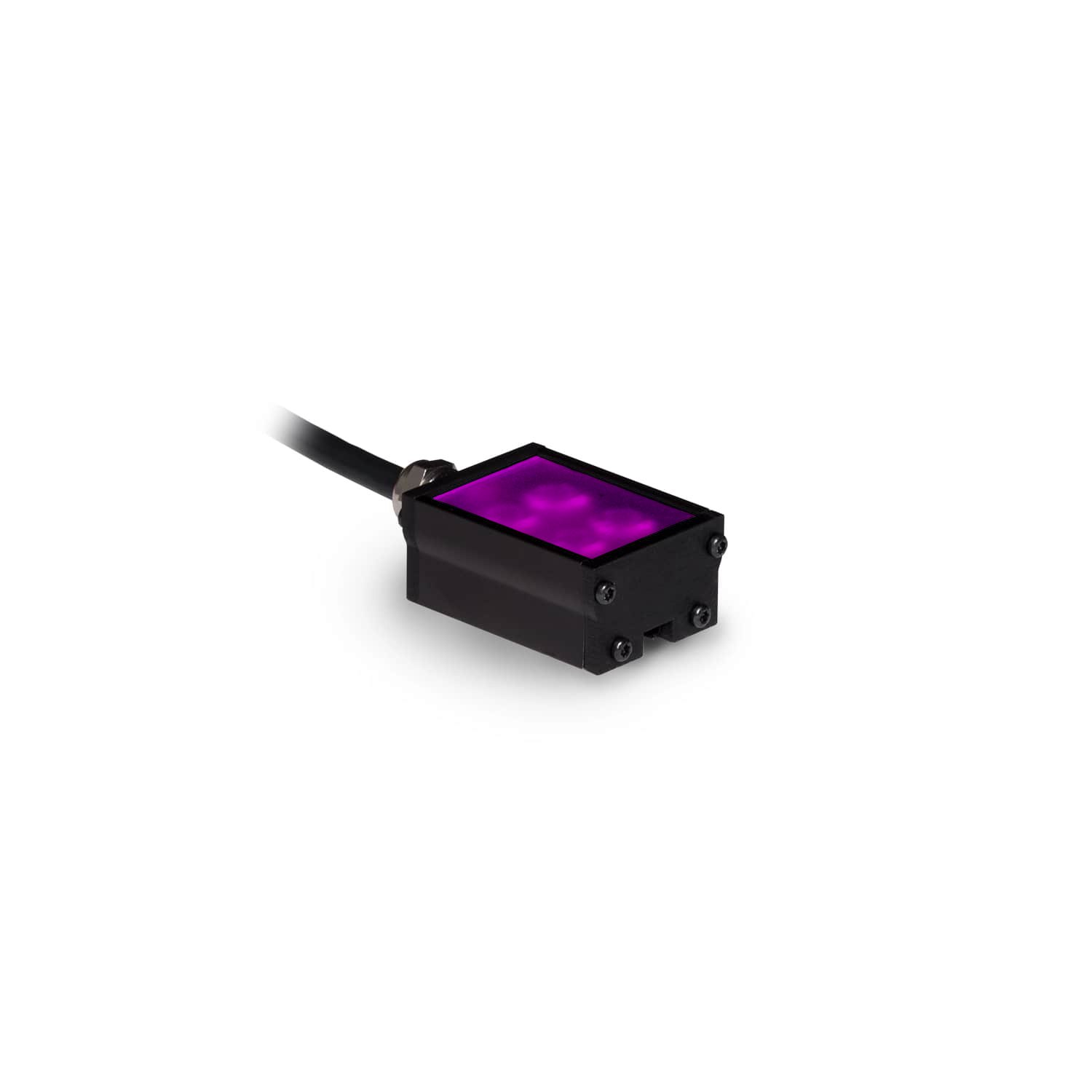

MicroBrite Spot Lights - SL Series
SL244-375I3S Specifications:
Brand | Advanced Illumination |
Series | SL244 |
Wavelength | 375 |
Color | Ultra-Violet (UV) |
Driver | I3S |
Ingress Protection | 0 |
Weight | 42g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
High-Intensity Illumination in a Compact Package
Available in a broad range of wavelengths
Washdown Version Available
Convenient M4 T-Slot for Mounting
General Specs
Electrical Specifications | 0.19 A Max |
Normal Operating Temperature |
0 - 60°C |
Weight | 42g (1.48 oz) |
Standard Cable Information | 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI Group 2 (Moderate Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | TBD |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() ![]() |
Optical Specs
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
Advanced Illumination SL244-375I3S Downloads:
![]() |
|
