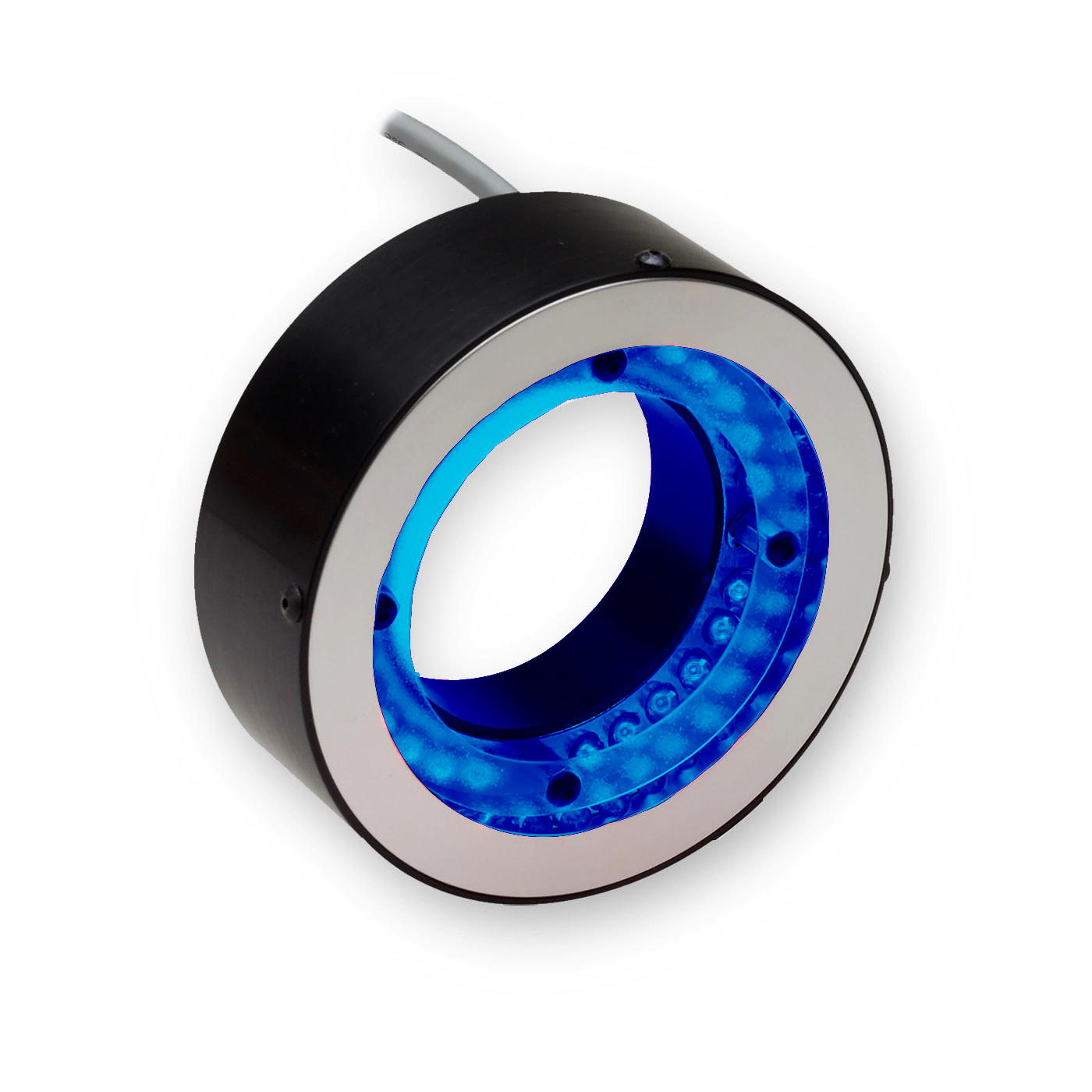

RL5064S-470I3S Dual Function Ring Light, 470nm Blue, ICS 3S (I3S) Driver

Advanced IlluminationSKU: RL5064S-470I3S
Lead Time: 1 Week

Precio:
Precio de venta$1,631.00 USD

Gastos de envío calculados en la caja

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

Dual Function Ring Lights - RL Series

RL5064S-470I3S Specifications:

Brand Advanced Illumination
Series RL5064
Wavelength 470
Color Blue
Driver I3S
Ingress Protection Not Rated
Mount Standard
Inner Diameter 55.6 mm
Outer Diameter 99.8 mm
Weight 503g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Characterized as a Dual Function Ring Light, the RL5064 is capable of both bright and dark field illumination with independent control (depending on control option).

General Specs

Electrical Specifications

0.12 A

0.19 A
Normal Operating Temperature

0 - 60°C

Weight 273.1g (9.6 oz) for standard mounting option
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
Compliance CE, RoHS
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL5064 Dual Function Ring Light Mechanical Specs | Advanced IlluminationRL5064 Dual Function Ring Light Mechanical Specs | Advanced Illumination


 Optical Specs

 RL5064 Dual Function Ring Light Optical Specs | Advanced IlluminationRL5064 Dual Function Ring Light Optical Specs | Advanced Illumination

Electrical Specs

 RL5064 Dual Function Ring Light Electrical Specs | Advanced Illumination


Control Specs

 RL5064 Dual Function Ring Light Control Specs | Advanced Illumination

Part No Key

 RL5064 Dual Function Ring Light Part No Key | Advanced Illumination

Advanced Illumination RL5064S-470I3S Downloads:

Advanced Illumination RL5064S-470I3S Datasheet | Machine Vision Direct
Advanced Illumination RL5064S-470I3S CAD PDF | Machine Vision Direct
Advanced Illumination RL5064S-470I3S CAD DXF | Machine Vision Direct
Advanced Illumination RL5064S-470I3S CAD STEP MODEL | Machine Vision Direct
