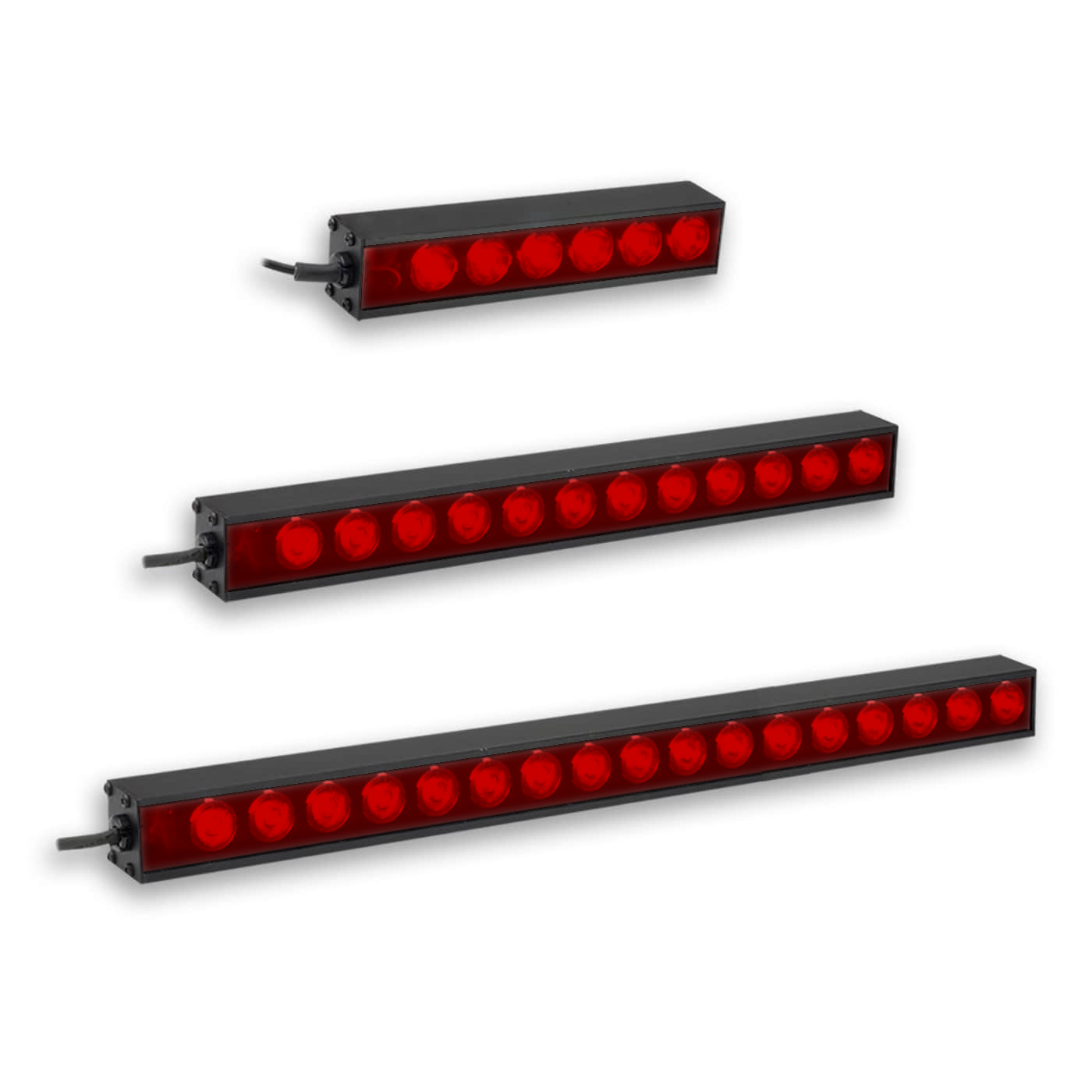

LL174M36-73024 High Intensity Bar Light, 730nm Infra-Red (IR), 36 in, 24 Volt Driver

Advanced IlluminationSKU: LL174M36-73024
Lead Time: 2 Weeks

Precio:
Precio de venta$2,531.00 USD

Gastos de envío calculados en la caja

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

High Intensity Bar Lights - LL Series

LL174M36-73024 Specifications:

Brand Advanced Illumination
Series LL174
Wavelength 730
Color Infra-Red (IR)
Driver 24
Ingress Protection IP50
Length 36 in
Lens MEDIUM
Weight 3806g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

High Intensity Bar Lights with a large degree of available customization:

“ 16 available wavelengths
“ Expandable in 6³ (150mm) increments up to 84³ (2.13m)
“ Optional heat sink for higher performance and/or high ambient temperatures
“ Optional light conditioning including polarization and diffusion
“ Optional IP65 rated sealing for washdown environments
“ 3 lens options for narrow, medium and wide beam spreads

All available with 2 week lead times

General Specs

Electrical Specifications

0.35A per 6 inches

0.37A per 6 inches

0.38A per 6 inches

0.38A per 6 inches
Normal Operating Temperature

0 - 60°C

Weight Sealed Per 6" - 195.10g (6.88oz)
Nonsealed Per 6" - 193.26g (6.82oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating IP65 Sealed, IP50 Nonsealed
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.



Mechanical Specs

 LL174 High Intensity Bar Lights Mechanical Specs | Advanced Illumination
LL174 High Intensity Bar Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 LL174 High Intensity Bar Lights Optical Specs | Advanced Illumination
LL174 High Intensity Bar Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL174 High Intensity Bar Lights Electrical Specs | Advanced Illumination


Control Specs

 LL174 High Intensity Bar Lights Control Specs | Advanced Illumination


Part No Key

 LL174 High Intensity Bar Lights Part No Key | Advanced Illumination

Advanced Illumination LL174M36-73024 Downloads:

Advanced Illumination LL174M36-73024 Datasheet | Machine Vision Direct
Advanced Illumination LL174M36-73024 CAD PDF | Machine Vision Direct
Advanced Illumination LL174M36-73024 CAD DXF | Machine Vision Direct
Advanced Illumination LL174M36-73024 CAD STEP MODEL | Machine Vision Direct
