Descripción
Wide Linear Diffuse Lights - DL Series
DL067A24 Specifications:
Brand | Advanced Illumination |
Series | DL067 |
Wavelength | VARIES |
Color | VARIES |
Driver | 24 |
Ingress Protection | Not Rated |
Length | 24 in |
Weight | 3969g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
The Wide Linear Diffuse Light series is ideal for the inspection of elongated or cylindrical objects.
Perfect for inspections requiring a multi-camera setup.
Can be provided with up to 4 viewing ports.
Expandable lengths from 6� “ 36� (152 “ 194mm) in 6� increments.
General Specs
Electrical Specifications | 0.65 A Per 6" |
Normal Operating Temperature |
0 - 60°C |
Weight |
DL067X06: 1162g (41oz) (2.55lb) DL067X12: 2608g (92oz) (5.75lb) DL067X18: 4054g (143oz) (8.95lb) DL067X24: 5500g (194oz) (12.15lb) DL067X30: 6974g (246oz) (15.35lb) DL067X36: 8420g (297oz) (18.55lb) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | Not Rated |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |

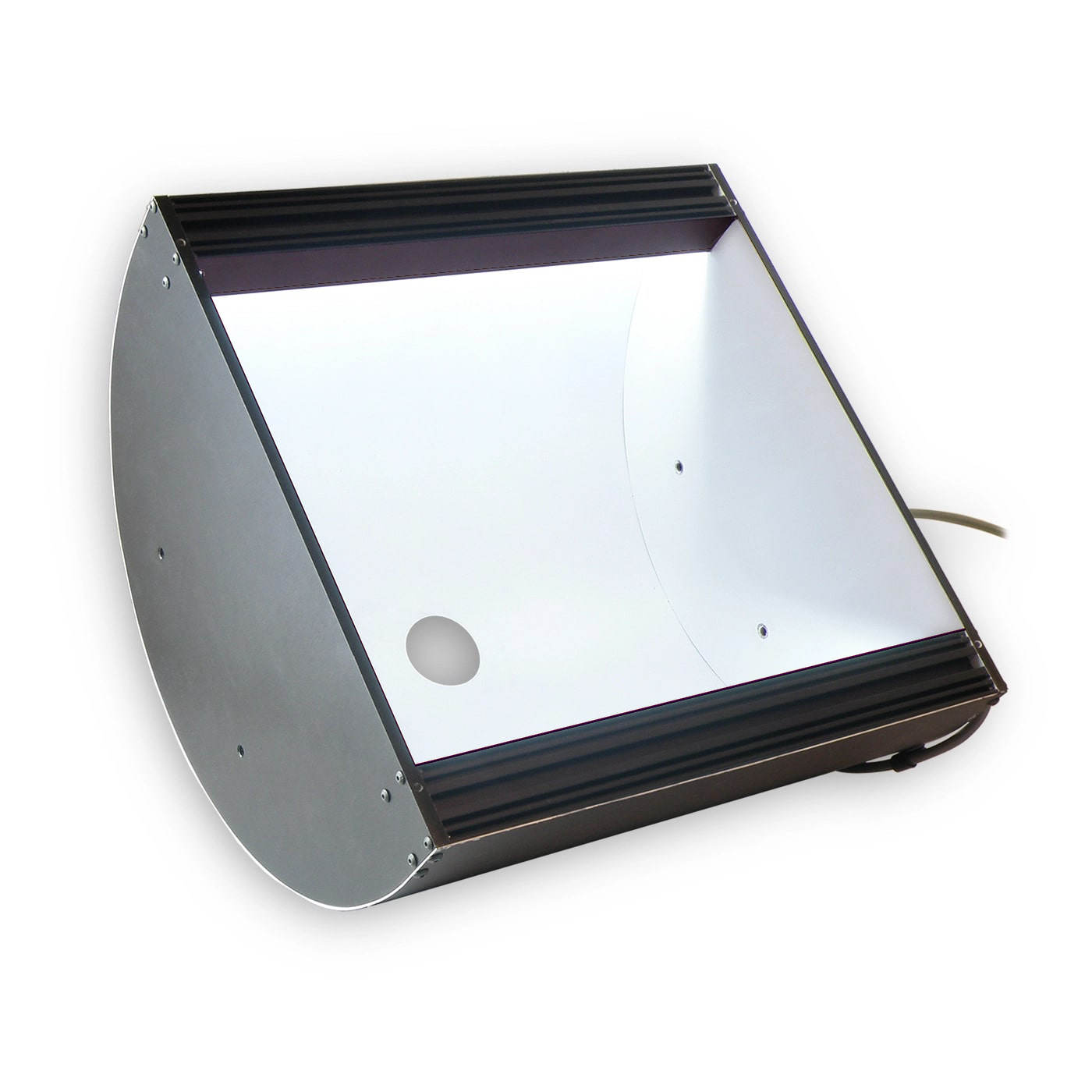

WHITE |
![]() |
WHITE |

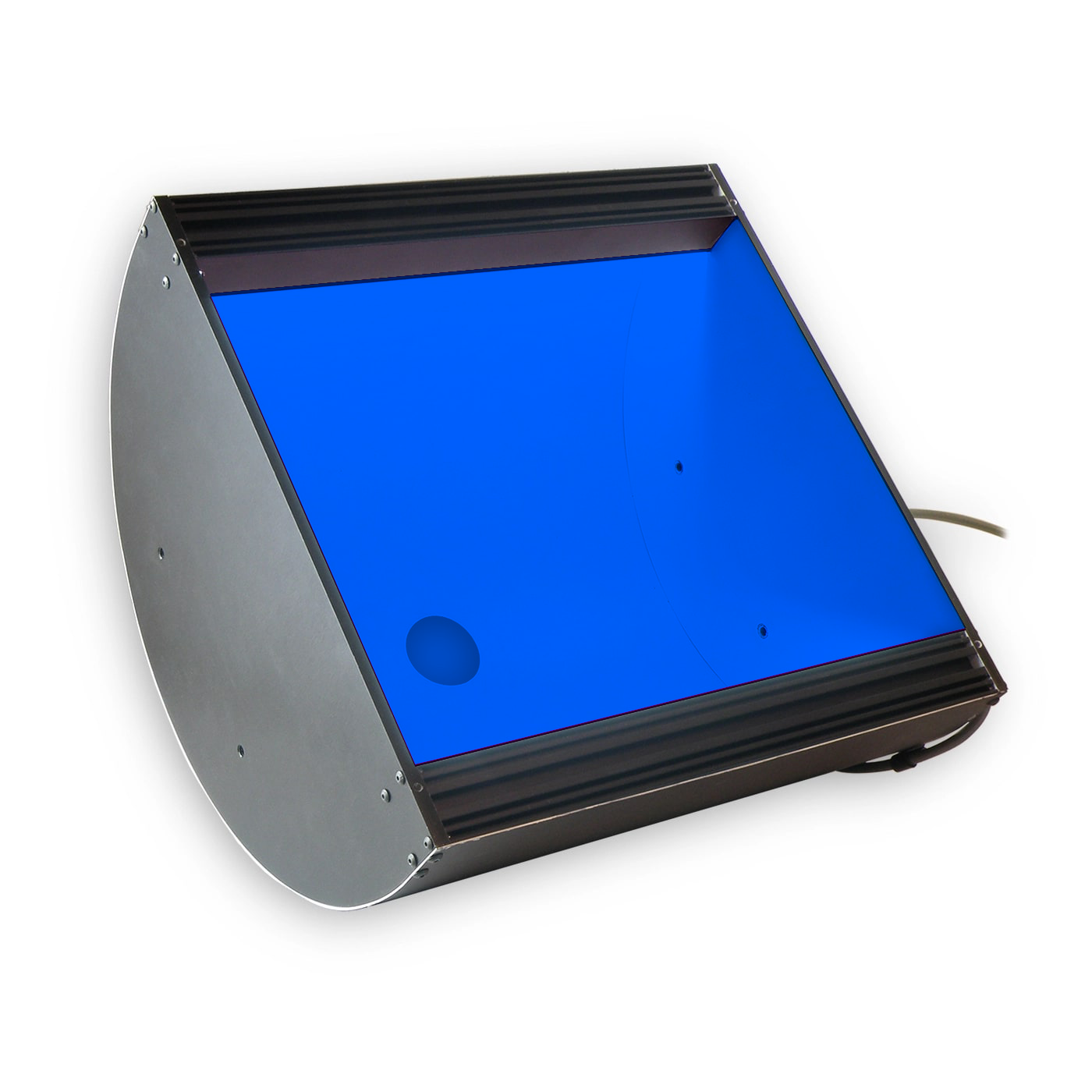

455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |

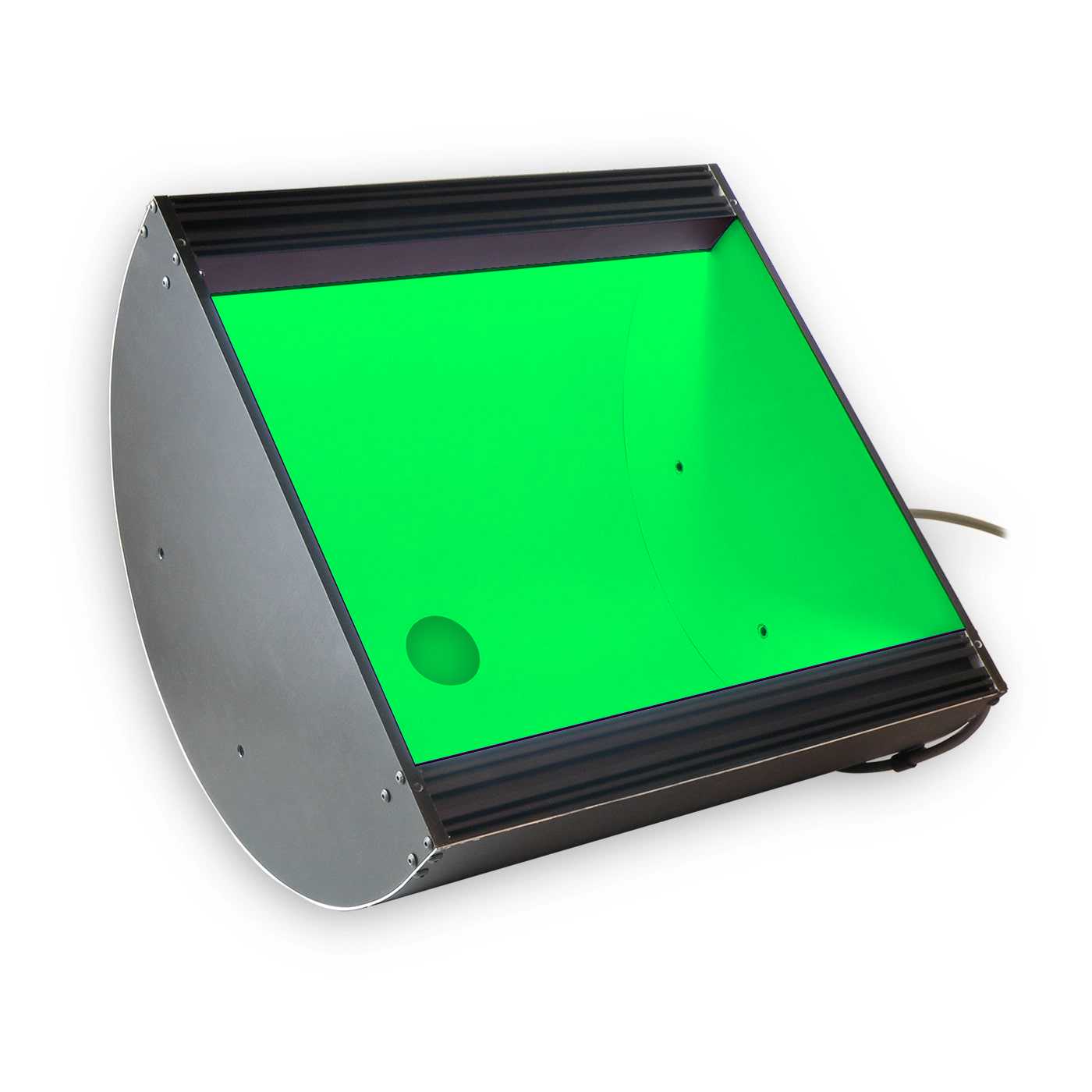

505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |

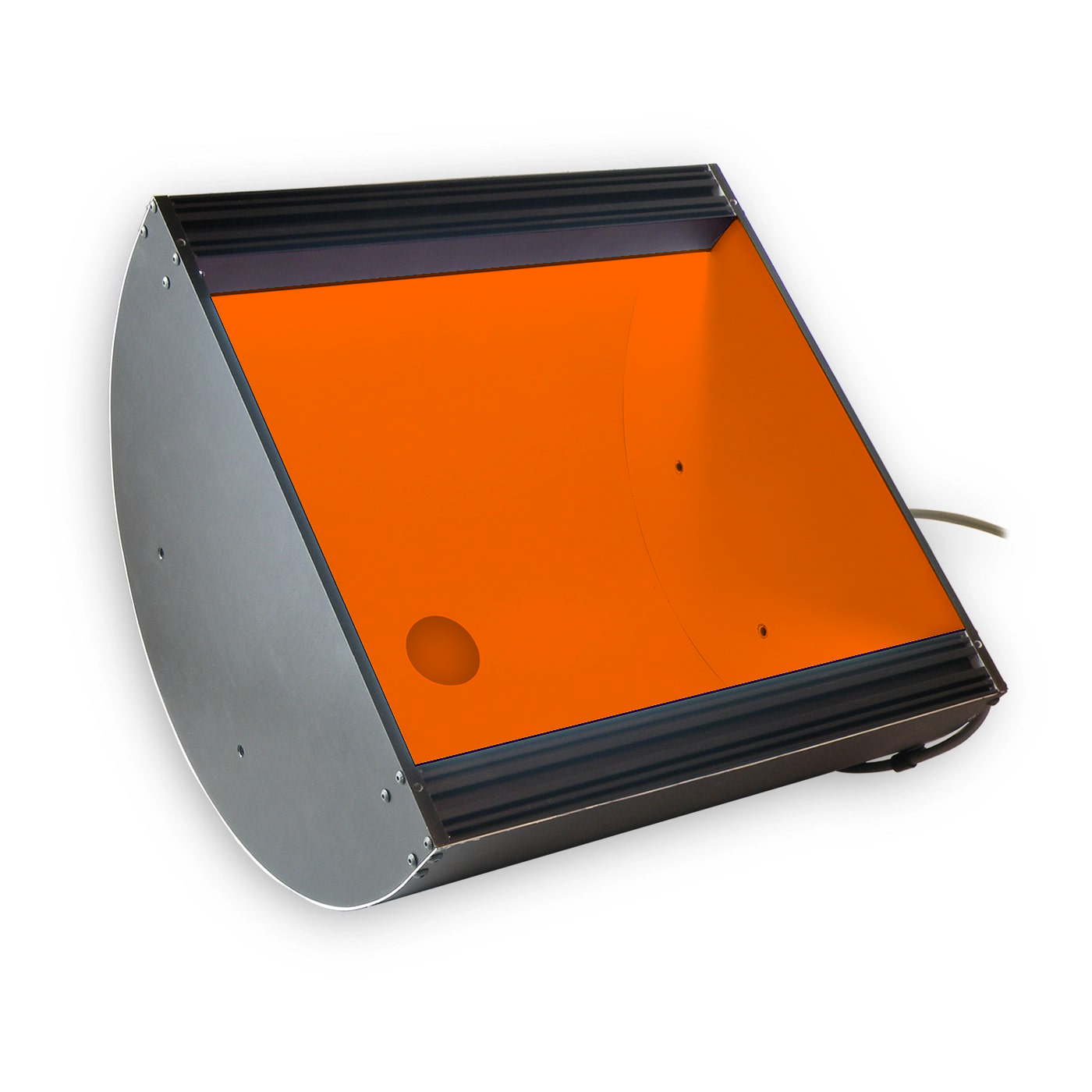

625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |

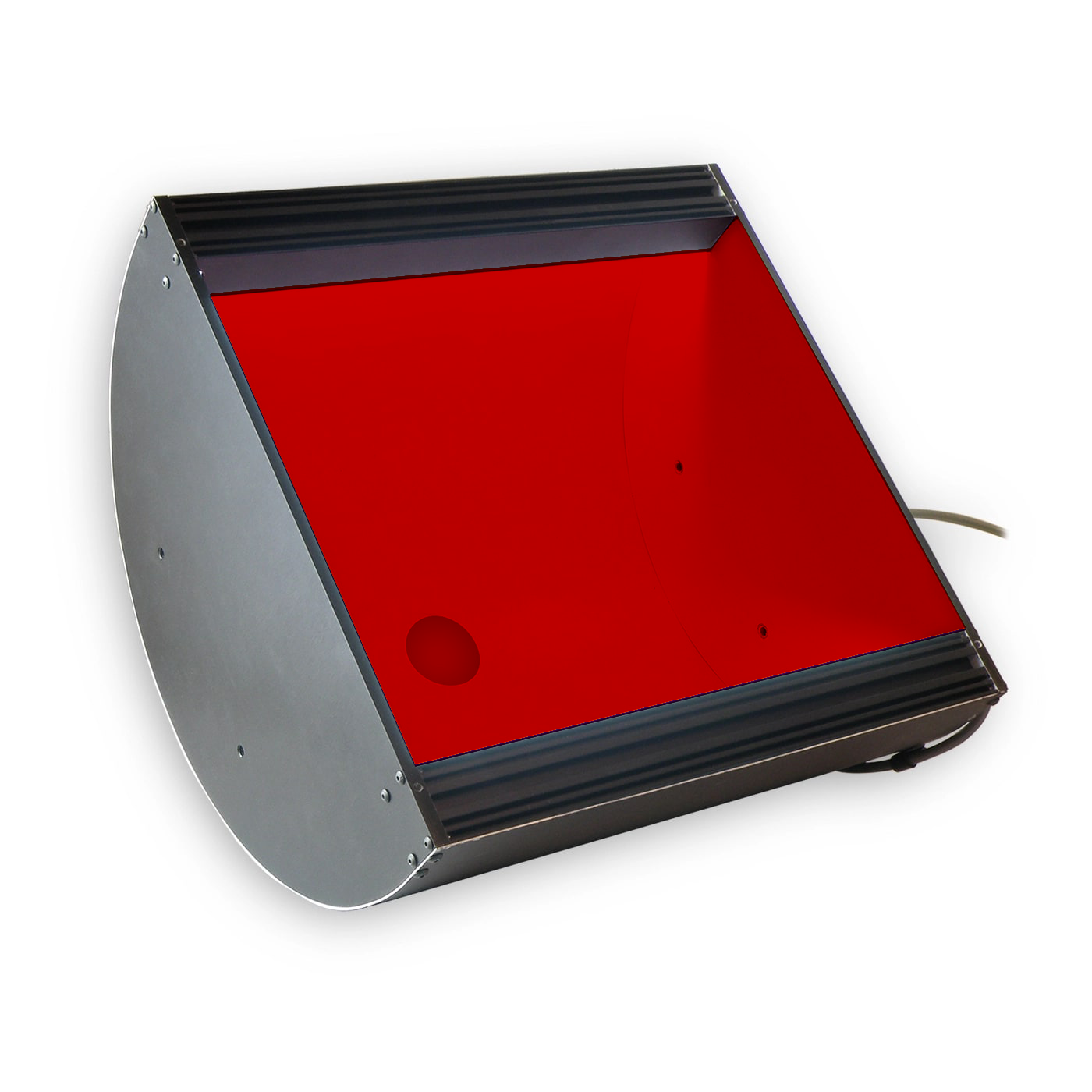

730 |
![]() |
730nm Infra-Red (IR) |

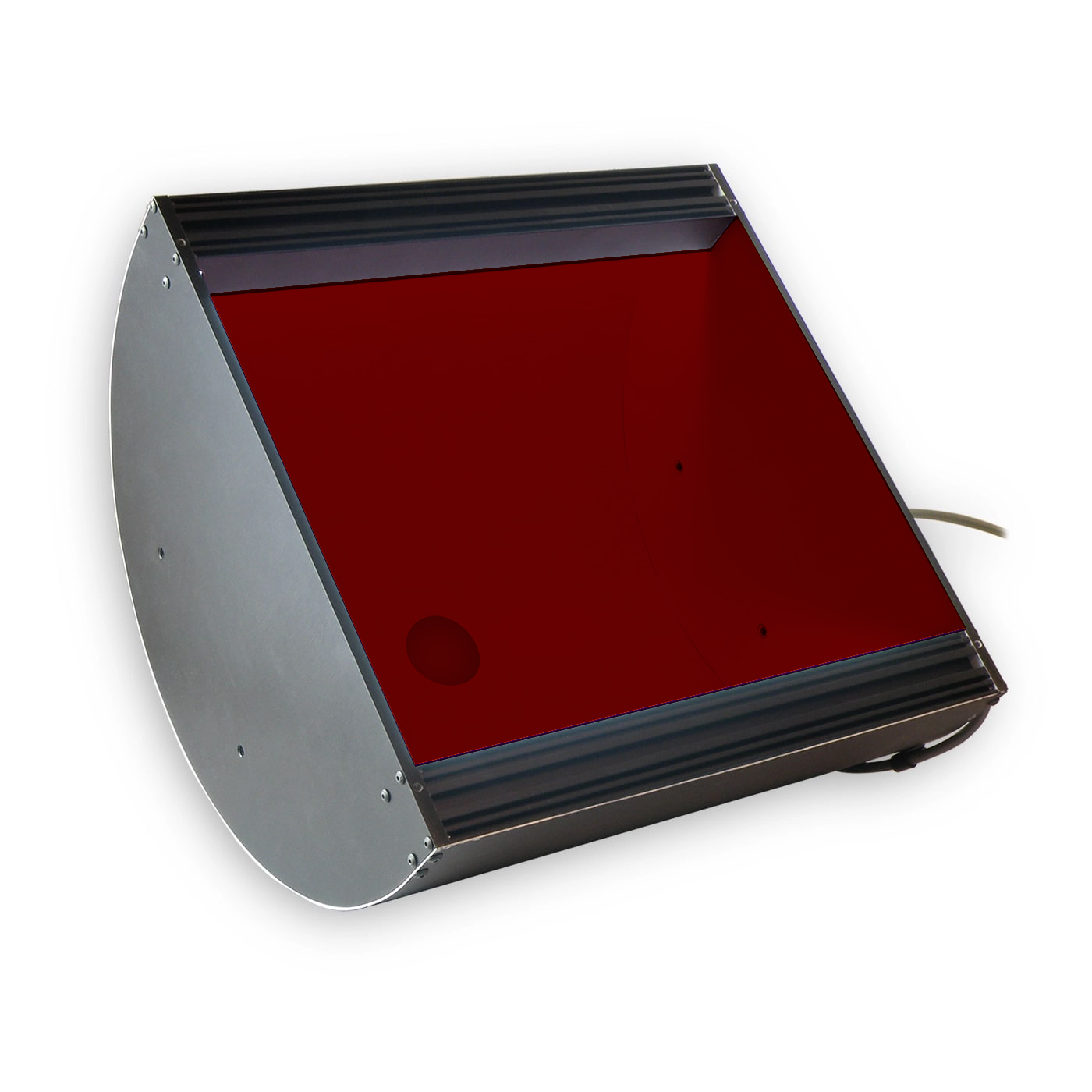

850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() |
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
