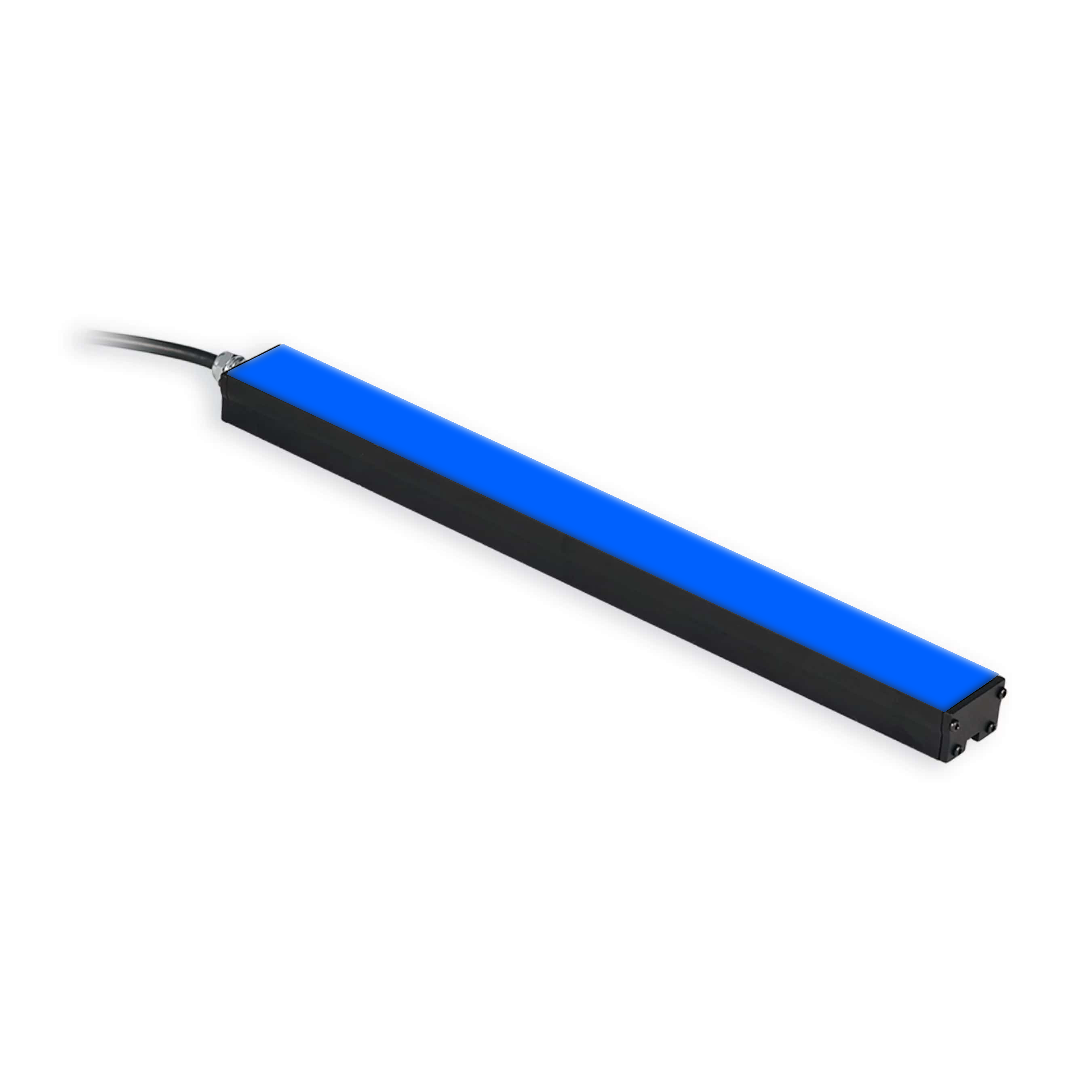

BL31318-47024 Medium Intensity Linear BackLight, 470nm Blue, 18 in, 24 Volt Driver

Advanced IlluminationSKU: BL31318-47024
Lead Time: 2 Weeks

Precio:
Precio de venta$1,507.00 USD

Gastos de envío calculados en la caja

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

Medium Intensity Linear Backlights - BL Series

BL31318-47024 Specifications:

Brand Advanced Illumination
Series BL313
Wavelength 470
Color Blue
Driver 24
Ingress Protection IP50
Length 18 in
Weight 381g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

This Linear Backlight delivers intense, diffuse illumination in a scalable design. The BL313 features 17x higher output intensity than the existing BL193, and it is available with varying power options for strobed or continuous operation. Ideal for backlighting line scan applications and object silhouetting.

General Specs

Electrical Specifications

0.12A per 2"

0.06A per 2"

0.12A per 2"
Max Case Temperature

60°C @ 25°C Ambient

Ambient Temperature Range

0-50°C

Weight .482 lbs for 12" model (BL31312)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.

Photobiological Risk Factor

Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating P65 Sealed, IP50 Unsealed
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL313 Medium Intensity Linear Backlights Mechanical Specs | Advanced Illumination
BL313 Medium Intensity Linear Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL313 Medium Intensity Linear Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL313 Medium Intensity Linear Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL313 Medium Intensity Linear Backlights Control Specs | Advanced Illumination



Part No Key

 BL313 Medium Intensity Linear Backlights Part No Key | Advanced Illumination

Advanced Illumination BL31318-47024 Downloads:

Advanced Illumination BL31318-47024 Datasheet | Machine Vision Direct
Advanced Illumination BL31318-47024 CAD PDF | Machine Vision Direct
Advanced Illumination BL31318-47024 CAD DXF | Machine Vision Direct
Advanced Illumination BL31318-47024 CAD STEP MODEL | Machine Vision Direct
