Descripción

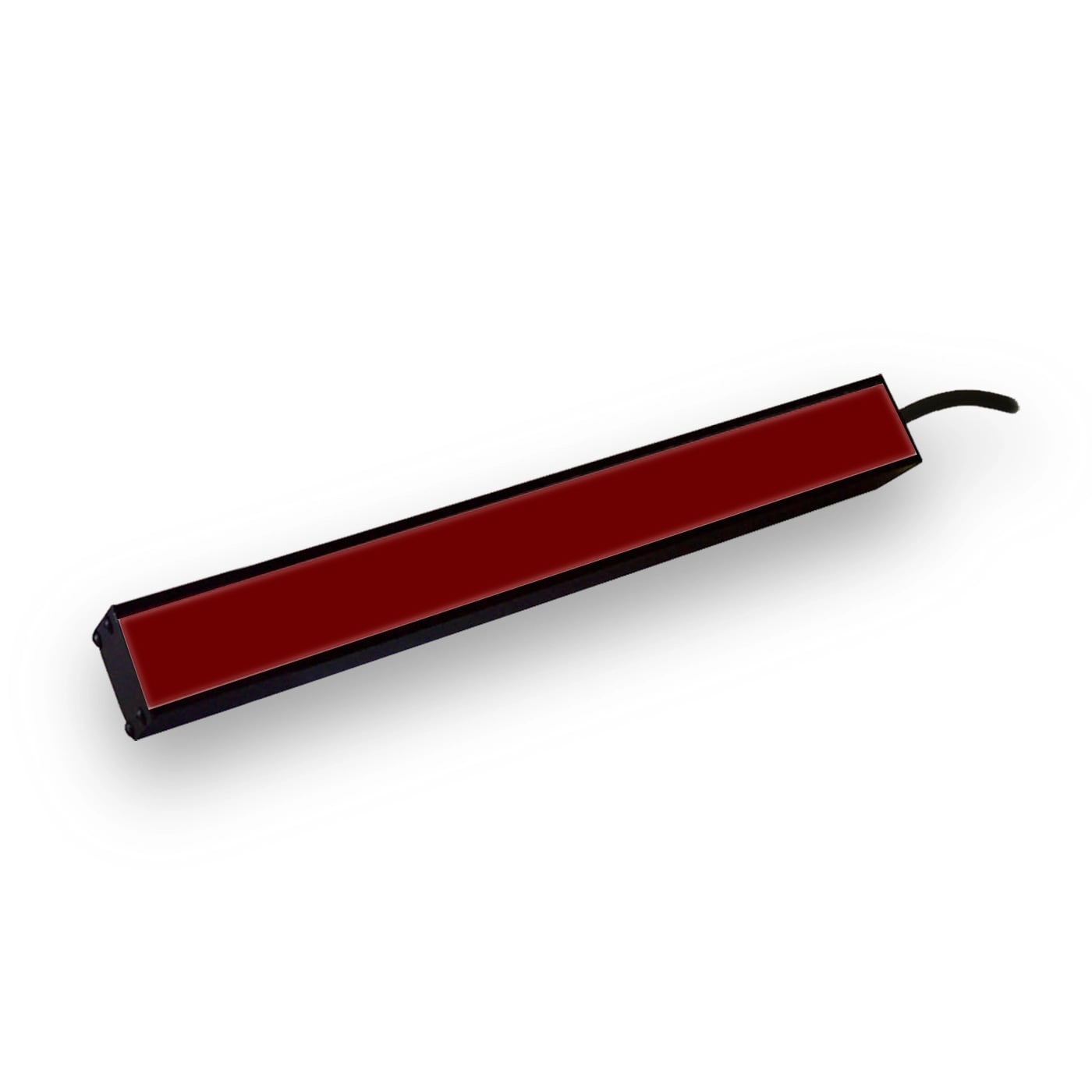

Standard Intensity Linear Backlights - BL Series
BL19304-88024 Specifications:
Brand | Advanced Illumination |
Series | BL193 |
Wavelength | 880 |
Color | Infra-Red (IR) |
Driver | 24 |
Ingress Protection | IP50 |
Length | 04 in |
Weight | 259g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Our Standard Intensity Linear Backlights provide rugged construction for demanding environments.
Standard intensity illumination with low power input requirements.
Multiple wavelengths available with very consistent illumination over the entire active area.
Available in 1� (25mm) increments with lengths up to 80.5� (2044mm).
General Specs
Electrical Specifications |
0.03A per inch |
Normal Operating Temperature |
0 - 60°C |
Weight | 12" unit - 212.3g (7.5oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 880 Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP50 |
Lumen Maintenance | L70 = 50,000 hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
470 | 470nm Blue | |
520 | 520nm Green | |
660 | 660nm Red | |
880 | 880nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
Advanced Illumination BL19304-88024 Downloads:
