TL305 Dual Axis Diffuse Line Scan "Blister Pack" Light

Smart Vision LightsSKU: TL305-WHI
Lead Time: 3 Business Days

Sale price$3,360.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Smart Vision Lights RM75-4Z Technical Specifications

RM75-4Z Continuous Operation Specifications

Electrical Input  24VDC +/- 5%
Current  Max. 2.5A
Wattage  Max. 66W
Strobe Input  PNP ► +3VDC or greater to activate.
PNP Line  3.7mA @ 3VDC │6.2mA @ 5VDC │ 12.6mA @ 10VDC │ 30.4mA @ 24VDC
Continuous Mode  Light will be in continuous mode by leaving +24V and GND applied
Potentiometer Dual 3/4 turn potentiometer controlled for On Axis and Off Axis lighting
Analog Intensity The output is adjustable from 10%-100% of brightness
Connection  5 pin M12 connector
Lifespan 100,000 hrs
Ambient Temp. -20º - 50º C (-4º - 122º F)
IP Rating IP50
Compliances CE and RoHS
IEC 62471 Rating See page 3

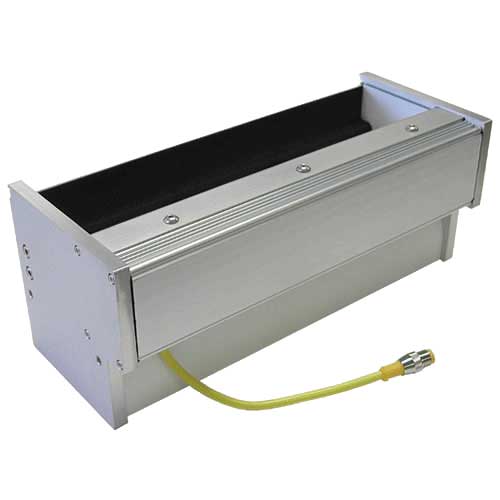

TL305 "Blister-Pack" Light with individual On-Axis and Off-AxisTL305 Blister Pack Light


The TL305 Series was designed as pharmaceutical blister pack inspection light with a built in individual On-Axis and Off-Axis intensity control lighting system. Exceptional uniformity and an intense output combined with its design makes the TL305 Series a perfect lighting solution for blister pack inspection, solder joint inspection, or any inspection of products with a highly reflective finish.

TL305 Diffuse On & Off Axis Light Details:

  • 5 Pin M12 Quick Disconnect
  • Built in Driver – No external wiring to a driver
  • Simple +24VDC and GND hook-up
  • Continuous operation or Strobe mode
  • Individual intensity control of each axis
  • Remote Intensity Control Included
  • Custom lengths and additional colors also available


TL305 Wiring Schematic


The TL305 is available in the following standard wavelength colors.

TL305 Colors

Other wavelenghts may be available, contact for additional information.

TL305 Downloads

TL305 Datasheet | Smart Vision Lights TL305 3D STEP Model | Smart Vision Lights
TL305 2D DXF Drawing | Smart Vision Lights TL305 PDF Dimension Drawing | Smart Vision Lights
