Description
The plug and play design of the Direct-Connect Linear Light Series gives users tremendous flexibility without the concern for additional wiring. The LX300 array utilizes 12 high intensity LEDs, being the longest light in the Direct-Connect Series. It also features an integrated constant current driver built into the light. Direct-Connect Series Linear Lights utilize 24VDC and can operate in continuous or strobe mode. NPN or PNP strobe triggers can be used to control the pulse of the light. Intensity of the light can be controlled via 0-10V remote analog signal or manual potentiometer. Available in standard narrow, wide, and line optics with options for all standard and some custom wavelengths.
Smart Vision Lights LX300 Technical Specifications
LX300 Specifications
Electrical Input | 24VDC +/- 5% |
Input Current | Max. 700 mA |
Wattage | Max. 17 W |
On / Off Input | PNP > +4VDC or greater to activate | NPN > GND (<1VDC) to activate |
PNP Line | 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC |
NPN Line | 15 mA @ Ground (0VDC) |
Yellow Indicator LED | LED Strobe Indicator ON = Light Active |
Green Indicator LED | ON = Power |
Continuous Mode | NPN can be tied to ground OR PNP can be tied to 24VDC (not both) |
Potentiometer | 270º turn pot – Intensity control of 10% to 100%. Turn clockwise to increases intensity |
Analog Intensity |
The output is adjustable from 10–100% of brightness by a 1–10VDC signal. (Jumpering pin 3 to pin 1 will provide maximum intensity) |
Connection | 5-pin M12 connector |
Ambient Temperature | -18º–40º C (0º–104º F) |
IP Rating | IP50 |
Weight | ~540g |
Compliances | CE, RoHS, IEC 62471 |
Features
- 12 high output LED's
- Driver built in - No External wiring to a driver
- PNP and NPN Strobe input
- Continuous operation or Strobe mode
- Dimmable via built in potentiometer
- Analog intensity 0-10VDC signal
- T-Slot for mounting and connecting together




LX300 Downloads
![]() |
![]() |
![]() |
![]() |
Possible Product Configurations:

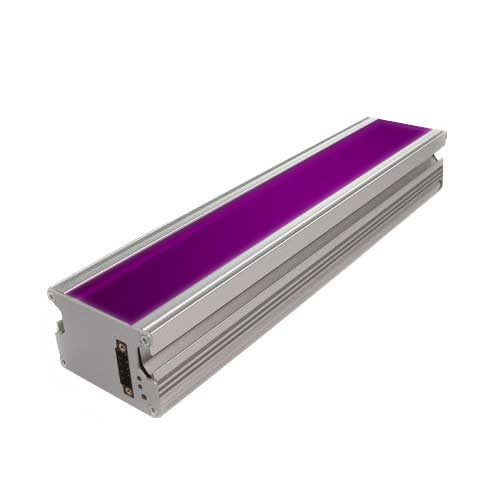

LX300-365

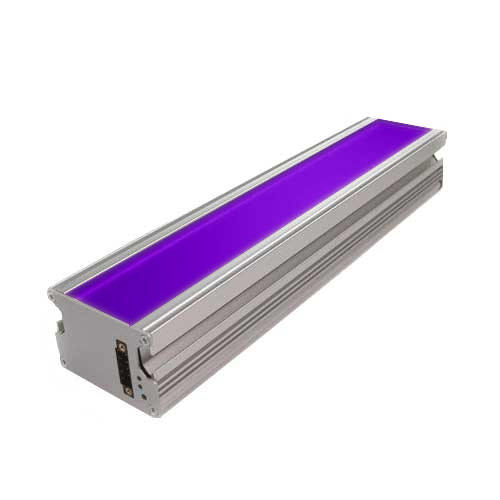

LX300-395
LX300-470

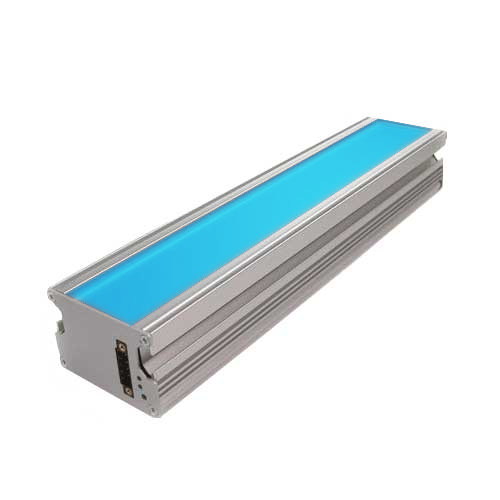

LX300-505

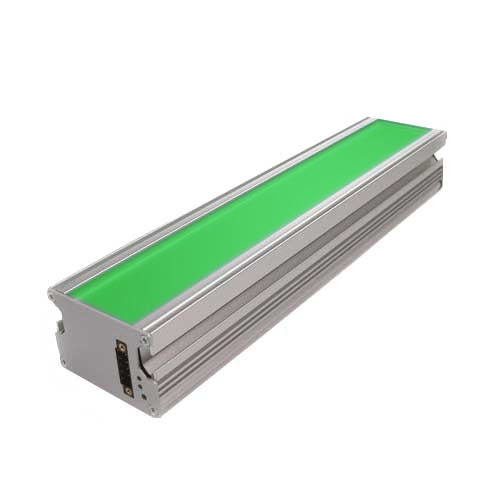

LX300-530

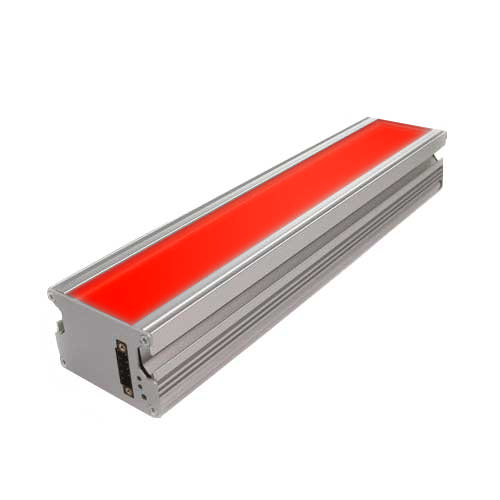

LX300-625
LX300-850

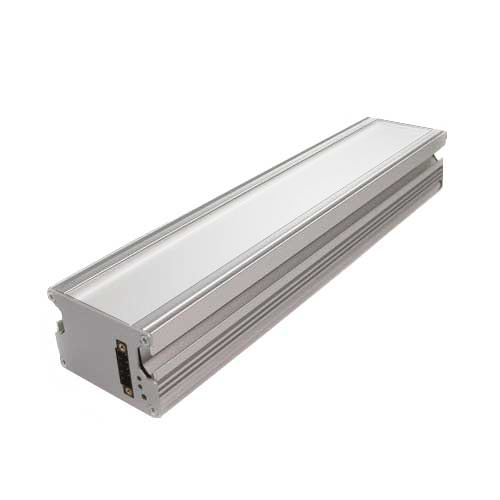

LX300-WHI
LX300-365-W
LX300-395-W
LX300-470-W
LX300-505-W
LX300-530-W
LX300-625-W
LX300-850-W
LX300-WHI-W
LX300-470-L
LX300-505-L
LX300-530-L
LX300-625-L
LX300-850-L
LX300-WHI-L
