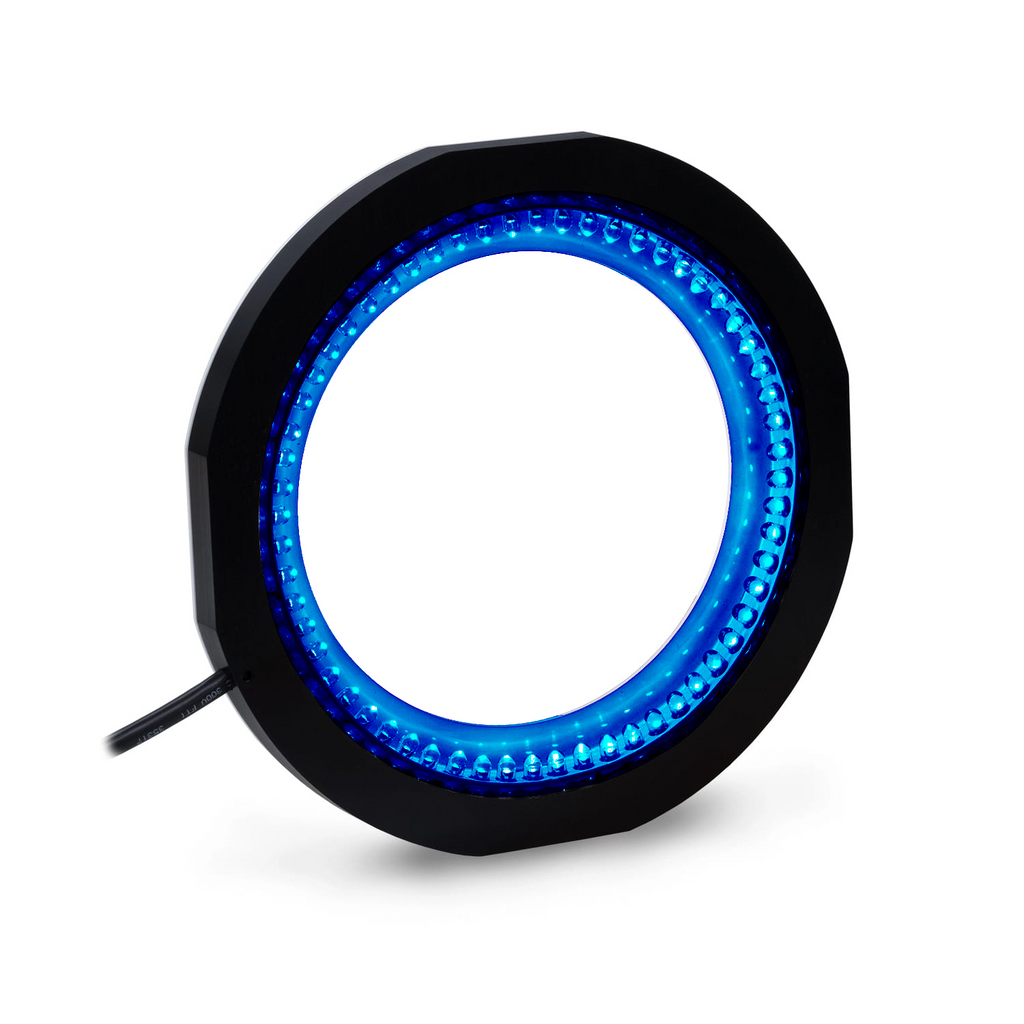

DF242-4704524 Large Low Angle Dark Field Light, 470nm Blue, 24 Volt Driver

Advanced IlluminationSKU: DF242-4704524
Lead Time: 1 Week

Price:
Sale price$1,240.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Large Low Angle Dark Field Lights - DF Series

DF242-4704524 Specifications:

Brand Advanced Illumination
Series DF242
Wavelength 470
Color Blue
Driver 24
Ingress Protection Not Rated
Inner Diameter 121.4 mm
Outer Diameter 183.4 mm
Illuminated Field of View 45.0 mm
Weight 548g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The DF242 is characterized as a Large Low Angle Dark Field ring light.

Precisely aimed LEDs provide a very low angle of incidence, radial illumination pattern.

A scratch on a sheet of glass is a good example of a defect that can be detected easily with a low-angle dark field illuminator.

With a light intensity of 24kLux at a working distance of 1� (25mm), the DF242 is perfect for imaging problems with medium sized fields of view.

A 35mm field of view is standard with optional fields of view of 45 and 70mm.

Available in a range of wavelengths from UV to IR.

*Engineered to provide comparable optical characteristics to our previous RL1660.

General Specs

Electrical Specifications

0.36A

0.24A
Normal Operating Temperature

0 - 60°C

Weight 646g (22.78 oz) (1.424 lb)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN.
Photobiological Risk Factor EXEMPT APPLICABLE WAVELENGTHS: 880
GROUP 1 (LOW-RISK) APPLICABLE WAVELENGTHS: 470, 520, 625, 660, WHI
GROUP 2 (MODERATE-RISK) APPLICABLE WAVELENGTHS: 395
Compliance CE, ROHS, IEC 62471
IP Rating NOT RATED
Lumen Maintenance L70 = 50,000 HOURS



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DF242 Large Low Angle Dark Field Light Mechanical Specs | Advanced Illumination


 Optical Specs

 DF242 Large Low Angle Dark Field Light Optical Specs | Advanced Illumination

Electrical Specs

 DF242 Large Low Angle Dark Field Light Electrical Specs | Advanced Illumination


Control Specs

 DF242 Large Low Angle Dark Field Light Control Specs | Advanced Illumination

Part No Key

 DF242 Large Low Angle Dark Field Light Part No Key | Advanced Illumination

Advanced Illumination DF242-4704524 Downloads:

Advanced Illumination DF242-4704524 Datasheet | Machine Vision Direct
Advanced Illumination DF242-4704524 CAD PDF | Machine Vision Direct
Advanced Illumination DF242-4704524 CAD DXF | Machine Vision Direct
Advanced Illumination DF242-4704524 CAD STEP MODEL | Machine Vision Direct
